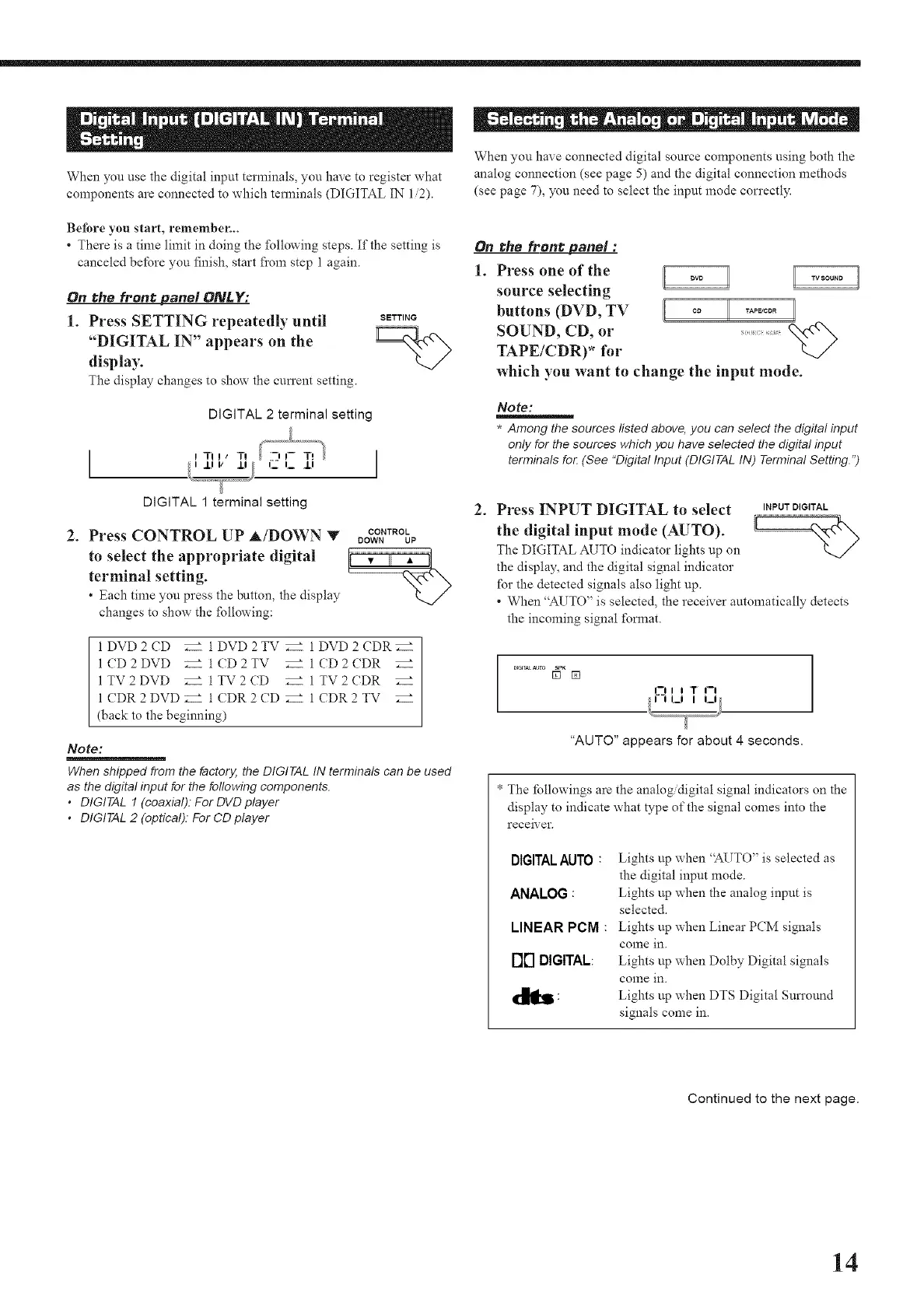

When you use the digital input terminals, you have to register what
components are connected to which terminals (DIGITAL IN 12).
Before you start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled betbre you finish, start fi'om step 1 again.
On the frong panel OILILY:
1. Press SETTING repeatedly until
"DIGITAL IN" appears on the
display.
The display changes to show the cun'ent setting.
SETTING
DIGITAL 2 terminal setting
DIGITAL 1 terminal setting
2. Press CONTROL UP A/DOWN v
to select the appropriate digital
terminal setting.
• Each time you press the button, the display
changes to show the following:
CONTROL
DOWN UP
IDVD2CD __ IDVD2TV__ IDVD2CDR__
ICD2DVD __ ICD2TV __ 1CD2CDR __
1TV2DVD __ ITV2CD __ 1 TV2CDR __
1CDR2DVD__ I(?DR2CD__ 1CDR2TV __
(back to the beginning)
Note:
When shipped from the factory, the DIGITAL IN terminals can be used
as the digital input for the following components.
• DIGITAL 1 (coaxial): For DVD player
• DIGITAL 2 (optical). For CD player
- - o - 1 . _ o o _ o . g _ o -
When you have connected digital source components using both the
analog connection (see page 5) and the digital connection methods
(see page 7), you need to select the input mode correctly.
On the front panel :
1. Press one of the I
source selecting
buttons (DVD, TV I ..........
SOUND, CD, or
TAPE/CDR)* for
</
which you want to change the input mode.
Note:
* Among the sources listed above, you can select the digita! input
only for the sources which you have selected the digital input
terminals for (See "Digital Input (DIGITAL IN) Tennina! Setting.")
2. Press INPUT DIGITAL to select ,NPUTD_G_TAL
the digital input mode (AUTO).
The DIGITAL AUTO indicator lights up on
the display, and the digital signal indicator
for the detected signals also light up.
• When "AUTO" is selected, the receiver automatically detects
the incoming signal format.
! ! T !'-!
I,j I tJ
"AUTO" appears for about 4 seconds.
* The fbllowings are the analog, digital signal indicators on the
display to indicate what type of the signal comes into the
receix er.
DIGITALAUTO:
ANALOG :
LINEAR PCM :
r][l DIGITAL:
Lights up when "AUTO" is selected as
the digital input mode.
Lights up when the analog input is
selected.
Lights up when Linear PCM signals
CO1Tle in.
Lights up when Dolby Digital signals
come in.
Lights up when DTS Digital Surround
signals come in.
Continued to the next page.
14
