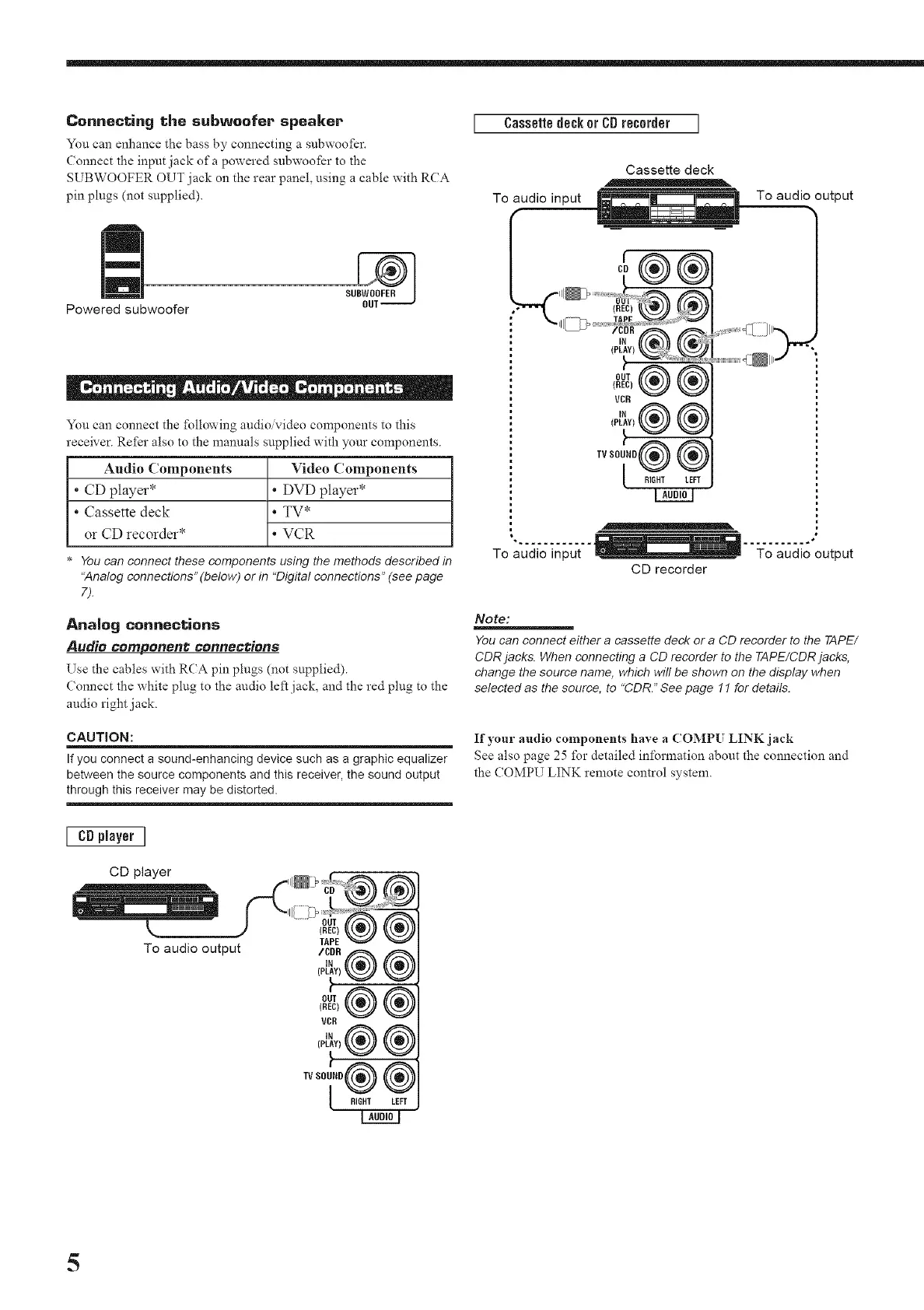

Connecting the subwasfeP speaker
You can enhance the bass by connecting a subwoofzr.
Connect the input jack of a powered subwoofzr to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
m
Powered subwoofer
SUBW00FER
You can connect the followingaudio video components to this
receiver. Ref)r also to the manuals supplied with yourcomponents.
Audio Components Video Components
* CD player* * DVD player*
* Cassette deck * TV*
or CD recorder* *VCR
* You can connect these components using the methods described in
"Analog connections" (below) or in "Digital connections" (see page
7).
Analog connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
[ CD player ]
CD player
To audio output
I CassettedeckorCDrecorder I
To audio input
Cassette deck
To audio output
IN
(PLAY)
iv $011_D_
.. ........... _ _lmmmm .......... .
To audio input _ To audio output
CD recorder
Note:
You can connect either a cassette deck or a CD recorder to the TAPE/
CDR jacks. When connecting a CD recorder to the TAPE/CDR jacks,
change the source name, which will be shown on the display when
selected as the source, to "CDR." See page 11 for details.
If)'our audio components have a COMPU LINK jack
See also page 25 fbr detailed information about the connection and
the COMPU LINK remote control system.
5
