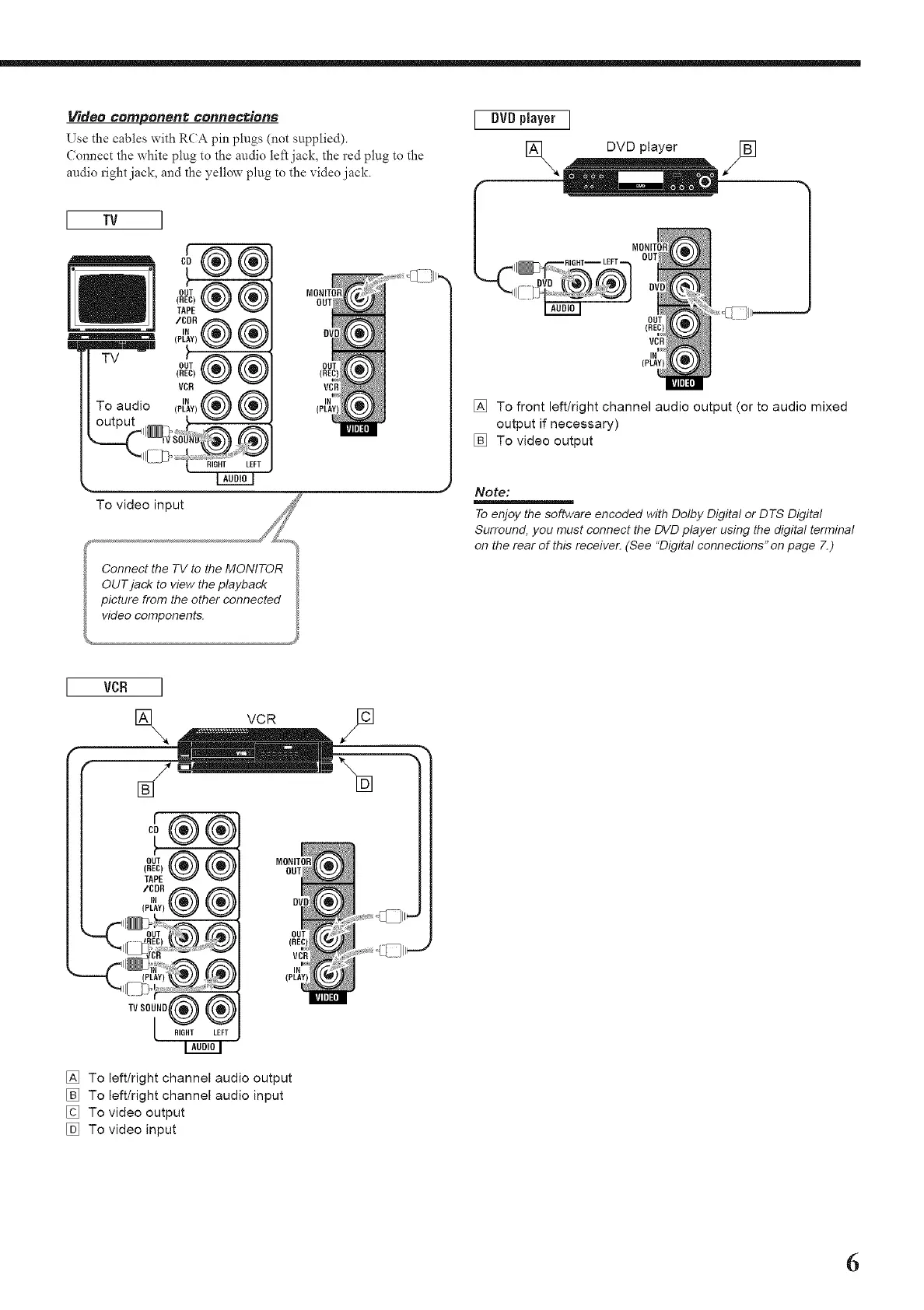

Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio lef_tiack, the red plug to the
audio right jack, and the yellow plug to the video .iack.
[ TV
TV
I
cI®
OUT Q
(BEC)
TAPE
z_oR
IPL_Y){_
VCR
IN
(PLAY)
OUT
(
VCR
I DVDplayer I
[] To front left/right channel audio output (or to audio mixed
output if necessary)
[] To video output
To video input
Connect the TV to the MONITOR
OUT jack to view the playback
picture from the other connected
video components.
Note:
Toenjoy the software encoded with Dolby Digital or DTS Digital
Surround, you must connect the DVD player using the digital terminal
on the rear of this receiver. (See "Digital connections" on page 7.)
[ VCR
f
f
/CDR Q
IN
(PLAY)
TVSOUND0
OUT
[] To left/right channel audio output
[] To left/right channel audio input
[] To video output
[] To video input
6
To Next Page
