RX-6032VSL
(No.22012)1-21

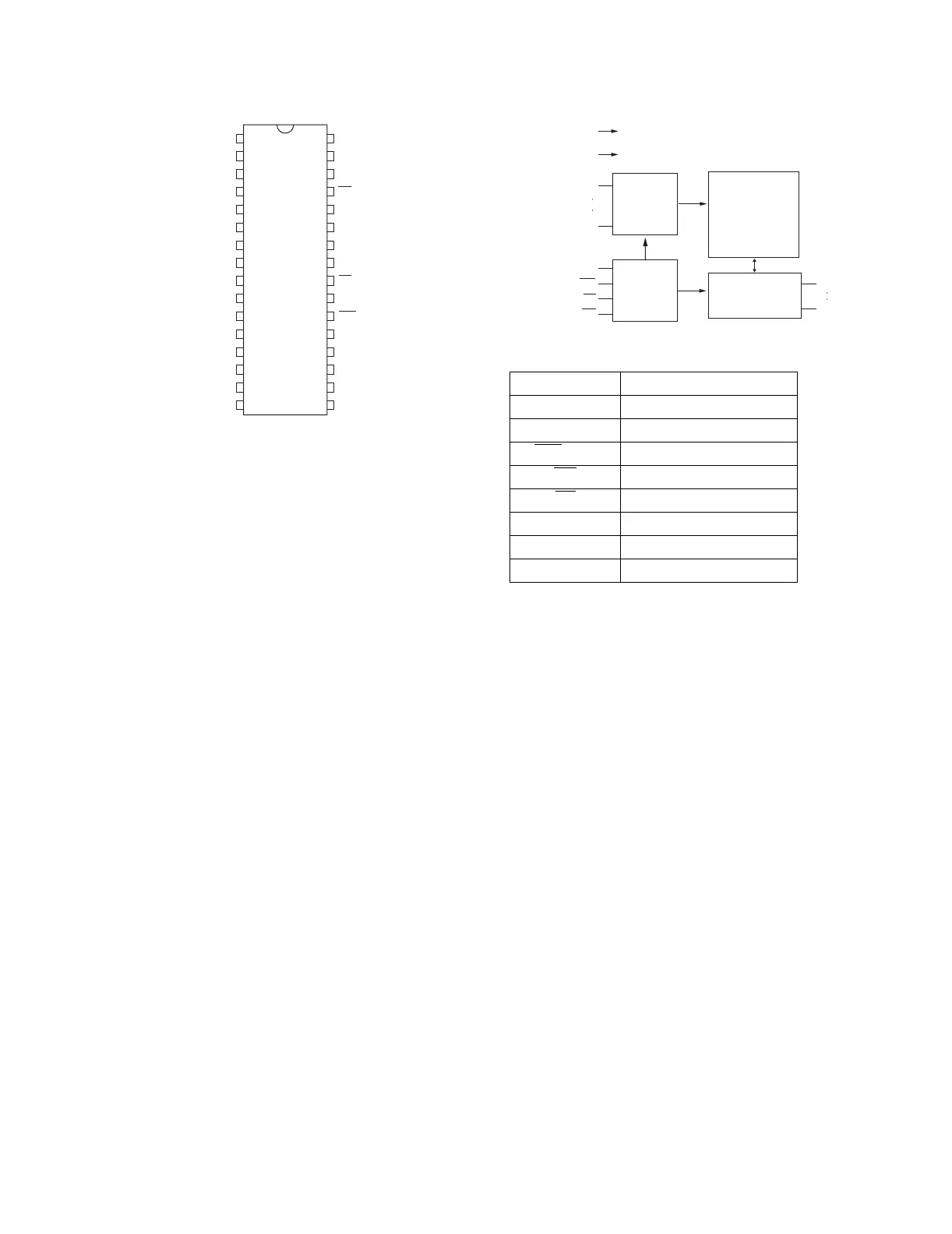

4.13 LP61L1024S-12-X (IC641) : SRAM
Pin layout Block diagram
Pin function
NC
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O1
I/O2
I/O3
Vss
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
V
DD
A15
CS2
WE
A13
A8
A9
A11
OE
A10
CS1
I/O8
I/O7
I/O6
I/O5
I/O4
SYMBOL DESCRIPTION
A0 - A16 Address Input
I/O1 - I/O8 Data Input/Output
CS1
, CS2 Chip Select Inputs
WE
Write Enable Input
OE
Output Enable Input
VDD Power Supply
Vss Ground
NC No Connection
DECODER
CORE
ARRAY
CONTROL
DATA I/O
V
DD
Vss
CS2
CS1
OE
WE
A0
A16
I/O1
I/O
8
