Parts Identification
See pages in parentheses for details.
1 STANDBY/ON button and STANDBY lamp (11)
2 SURROUND/DSP OFF button (26, 27)
3 DSP button (27)
4 SURROUND button (26)
5 Remote sensor (10)
6 Display (For details, see “Display” on the next page.)
7 • INPUT ANALOG button (17)
• INPUT ATT button (18)
8 INPUT DIGITAL button (17)
9 DIMMER button (13)
p MASTER VOLUME control (13)
q PHONES jack (13)
w SPEAKERS ON/OFF button (13)
e SUBWOOFER OUT ON/OFF button (18)
r FM/AM TUNING 5/∞ buttons (22)
t FM/AM PRESET 5/∞ buttons (23)

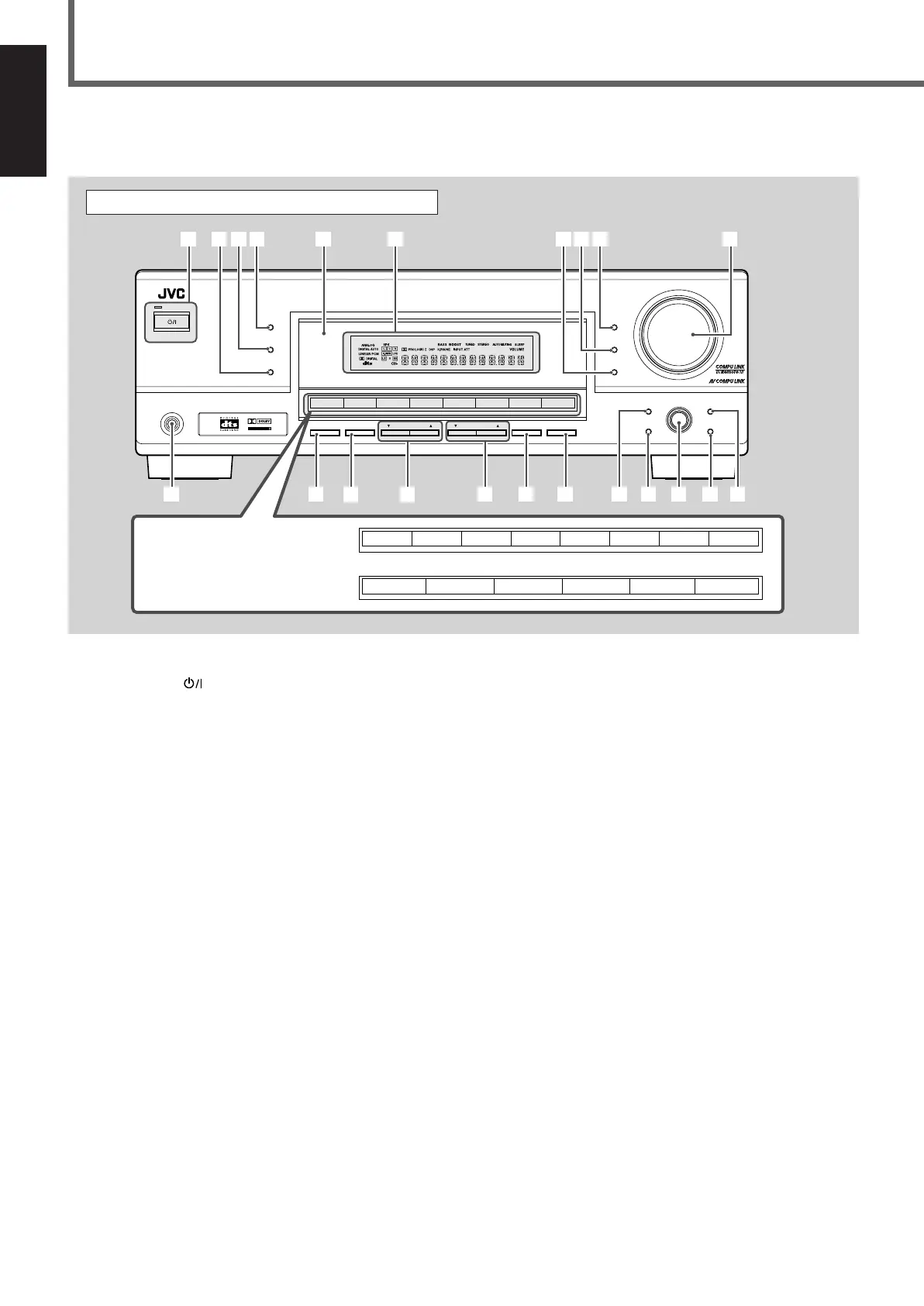

Front Panel
RX-6030VBK is mainly used for illustrations to explain the connections and operations throughout the instructions.
y FM MODE button (23)
u MEMORY button (22, 23)
i SETTING button (15)
o SET button (15, 19)
; MULTI JOG dial (15, 19)
a EXIT button (15, 19)
s ADJUST button (19)
d For RX-6030VBK and RX-6032VSL
• Source selection buttons (11)
DVD MULTI, DVD, VCR, TV SOUND, CD, TAPE/CDR,
FM, AM
• SOURCE NAME button (12)
f For RX-5030VBK and RX-5032VSL
• Source selection buttons (11)
DVD, VCR, TV SOUND, CD, TAPE/CDR, FM/AM
• SOURCE NAME button (12)
STANDBY
STANDBY/ON
PHONES
DIGITAL
PRO LOGIC
SURROUND
DSP
SPEAKERS
ON/OFF
SUBWOOFER OUT FM MODE MEMORY
ON/OFF
FM/AM TUNING
SURROUND/DSP
OFF
DIMMER
MASTER VOLUME
INPUT DIGITAL
RX–6030V AUDIO/VIDEO CONTROL RECEIVER
SETTING
MULTI JOG
SET
ADJUST
EXIT
INPUT ANALOG
INPUT ATT
FM/AM PRESET
1234
5
q
w
e
yu
io
;as
d
RX-6030VBK/RX-6032VSL
f RX-5030VBK/RX-5032VSL
rt
DVD MULTI DVD
DVD
VCR
VCR
CD
CD
FM
FM/AM
AMTAPE/CDR
TAPE/CDR
TV SOUND
TV SOUND
SOURCE NAME
6
7
89
p
SOURCE NAME
EN01-10_RX-60_5030[C]f 02.12.24, 18:402
