Connecting the rear and center speakers
Connect the rear speakers to the REAR SPEAKERS terminals and the center speaker to
the CENTER SPEAKER terminals.
Notes:
•
When you connect rear
speakers, make sure that both
left and right speakers are
connected; otherwise, no
sound will come out of the rear
speakers.
•
You can register the center
speaker size after you finish its
connection. If you register it,
you do not have to set the
center speaker mode while
setting the surround mode. (If
you do not use a center
speaker, register that
information.) See page 19.

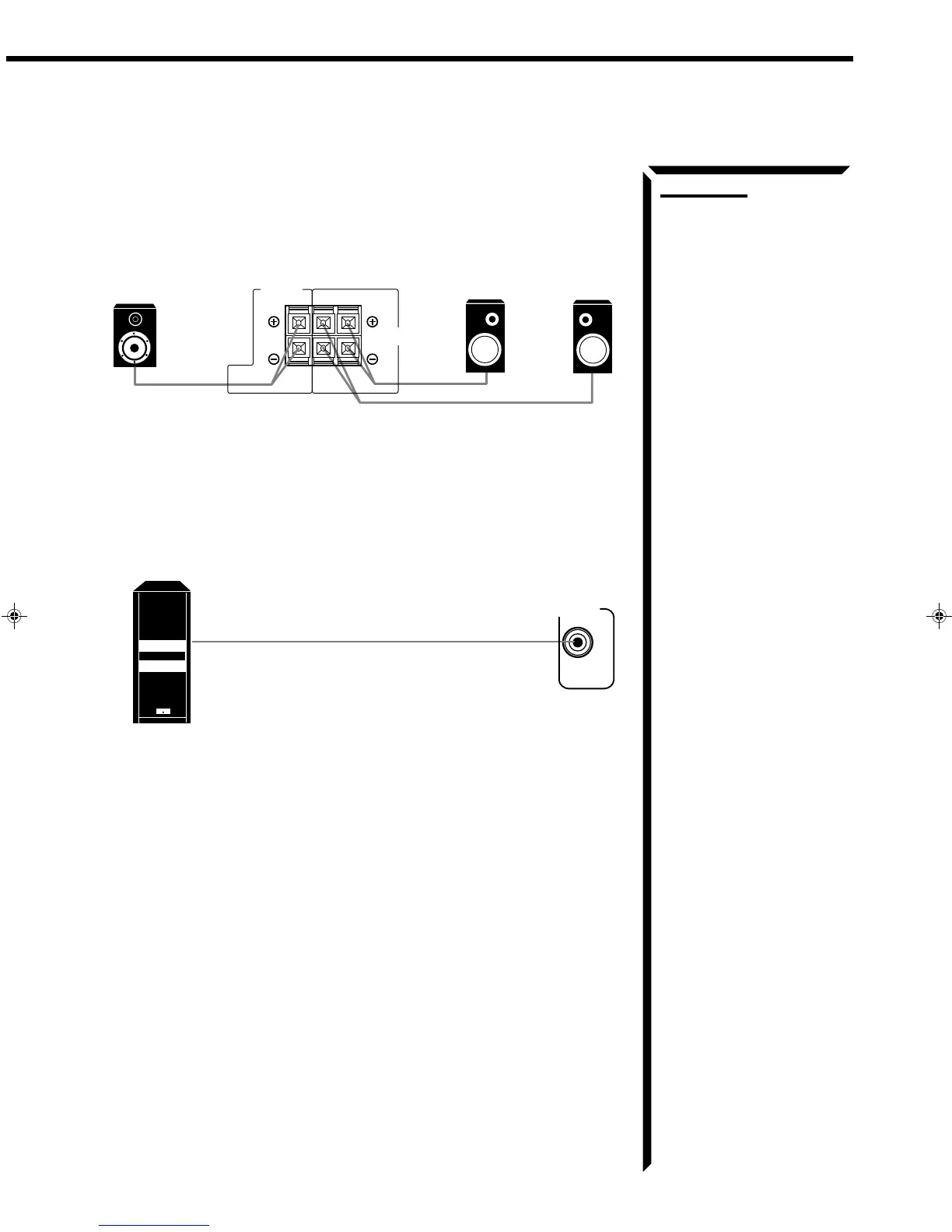

Left rear
speaker
Center
speaker
Right rear
speaker
RIGHT LEFT
REAR
SPEAKERS
CENTER
SPEAKER
Connecting the subwoofer
Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the
rear panel, using a cable with RCA pin plugs.
Powered subwoofer
SUBWOOFER
OUT
