RX-8012VSL/RX-8010VBK
1-4
Prior to performing the following procedure, remove
the top cover and the rear panel.
Cut off the tie band fixing the harness.
Disconnect the connect CN501, CN243, CN205,
CN381, CN361 on the DVD board.
Disconnect the harness from connector CN721,
CN722 and CN723.
Disconnect the tuner board and audio input board
from connector CN101 and CN301 on the audio
board.
Disconnect the video audio board and video board
from connector CN303 and CN201 on the audio
board.
Disconnect the S video board from connector CN241
on the audio board.
Disconnect the DSP board from connector CN601 on
the audio board.
Pull out the plastic pin which prevents from coming
out.
1.
2.
3.
4.
5.
6.
7.
8.

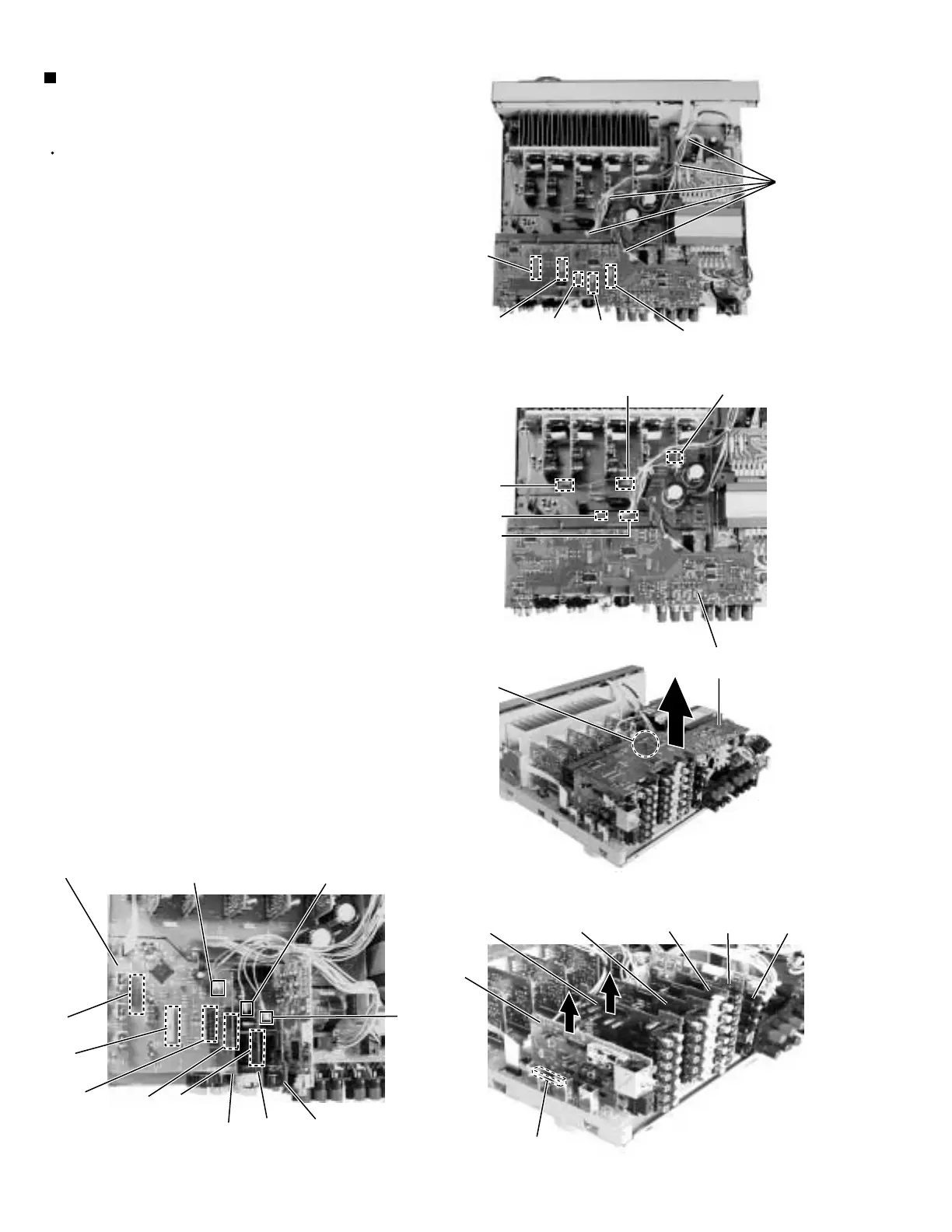

Removing each board connected to the
rear side of the audio board
(See Fig.5 to 11)
Fig.5
Fig.6
Fig.8
Tie band
CN101
CN723
CN361
CN381
CN243
Tuner
board
CN501
CN721
CN722
CN205
Fig.9
CN303
CN201
CN241
Audio board
CN731
CN732
Fig.7
DVD board
Audio input
board
Video
board
S Video
board
Video audio
board
DSP
board
CN301
CN101
Video
board
S Video
board
CN244
Video audio
board
CN206
CN416
Plastic pin
