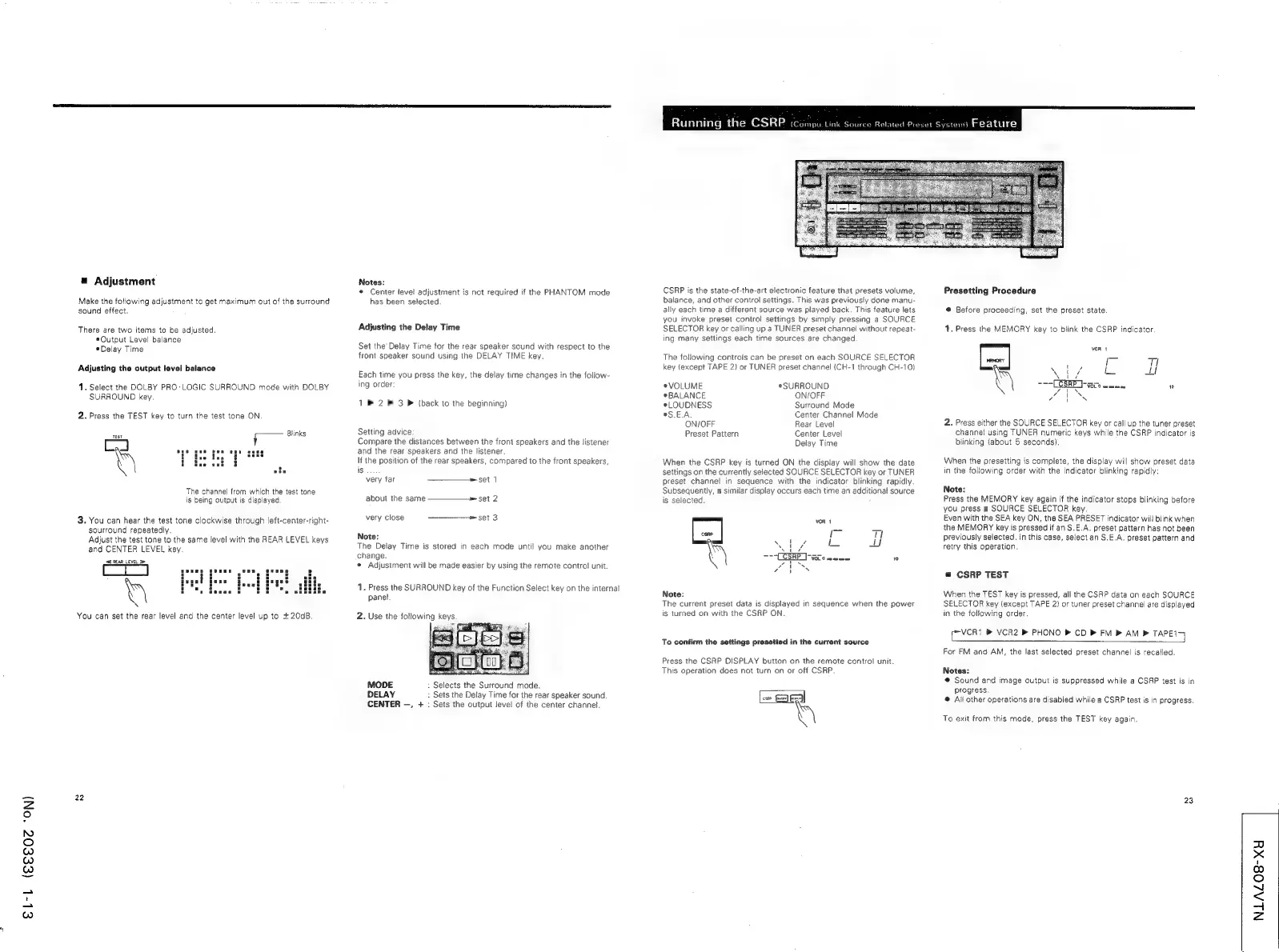

™ Adjustment
Make the following adjustment to get maximum out of the surround
sound effect.
There are two items to be adjusted.
Output Level balance
*Delay Time
Adjusting the output level balance
1. Select the DOLBY PRO-LOGIC SURROUND mode with DOLBY
SURROUND key.
2. Press the TEST key to turn the test tone ON.
vat ft Blinks
The channel from which the test tone
is being output is displayed.
3. You can hear the test tone clockwise through left-center-right-
sourround repeatedly.
Adjust the test tone to the same level with the REAR LEVEL keys
and CENTER LEVEL key.
REAR LEVEL >
YN
You can set the rear level and the center level up to + 20dB
22
Notes:
* Center level adjustment is not required if the PHANTOM mode
has been selected
Adjusting the Delay Time
Set the’ Delay Time for the rear speaker sound with respect to the
front speaker sound using the DELAY TIME key.
Each time you press the key, the delay time changes in the follow-
ing order:
1 > 2 ® 3 PD (back to the beginning)
Setting advice
Compare the distances between the front speakers and the listener
and the rear speakers and the listener
If the position of the rear speakers, compared to the front speakers,
is
very far ————~ set 1
about the same ——————» set 2
very close ————-- set 3
Note:
The Delay Time is stored in each mode until you make another
change.
¢ Adjustment will be made easier by using the remote contro! unit.
1. Press the SURROUND key of the Function Select key on the internal
panel
2. Use the following keys
MODE : Selects the Surround mode.
DELAY : Sets the Delay Time for the rear speaker sound
CENTER —, + : Sets the output /evel of the center channel.
CSRP is the state-of-the-art electronic feature that presets volume,
balance, and other control settings. This was previously done manu-
ally each time a different source was played back. This feature lets
you invoke preset control settings by simply pressing a SOURCE
SELECTOR key or calling up a TUNER preset channel without repeat-
ing many settings each time sources are changed
The following controis can be preset on each SOURCE SELECTOR
key (except TAPE 2) or TUNER preset channel (CH-1 through CH-10)
*@VOLUME *SURROUND
*BALANCE ON/OFF
*LOUDNESS Surround Mode
eS.EA. Center Channel Mode
ON/OFF Rear Level
Preset Pattern Center Level
Delay Time
When the CSRP key is turned ON the display will show the date
settings on the currently selected SOURCE SELECTOR key or TUNER
preset channel in sequence with the indicator blinking rapidly.
Subsequently, a similar display occurs each time an additional source
is selected.
Note:
The current preset data is displayed in sequence when the power
is turned on with the CSRP ON.
To confirm the settings presetted in the current source
Press the CSRP DISPLAY button on the remote control unit.
This operation does not turn on or off CSRP.
Presetting Procedure
© Before proceeding, set the preset state
1. Press the MEMORY key to blink the CSRP indicator
2. Press either the SOURCE SELECTOR key or call up the tuner preset
channel using TUNER numeric keys while the CSRP indicator is
blinking (about 5 seconds).
When the presetting is complete, the display will show preset data
in the following order with the indicator blinking rapidly:
Note:
Press the MEMORY key again if the indicator stops blinking before
you press a SOURCE SELECTOR key.
Even with the SEA key ON, the SEA PRESET indicator will blink when
the MEMORY key is pressed if an S.E.A. preset pattern has not been
previously selected. in this case, select an S.E.A. preset pattern and
retry this operation.
= CSRP TEST
When the TEST key is pressed, all the CSRP data on each SOURCE
SELECTOR key (except TAPE 2) or tuner preset channel are displayed
in the following order.
peveri > VCR2 ® PHONO ® CD > FM & AM > TAPEI4
For FM and AM, the last selected preset channel is recalled.
Notes:
@ Sound and image output is suppressed while a CSRP test is in
progress
© All other operations are disabled while a CSRP test is in progress.
To exit from this mode, press the TEST key again.
