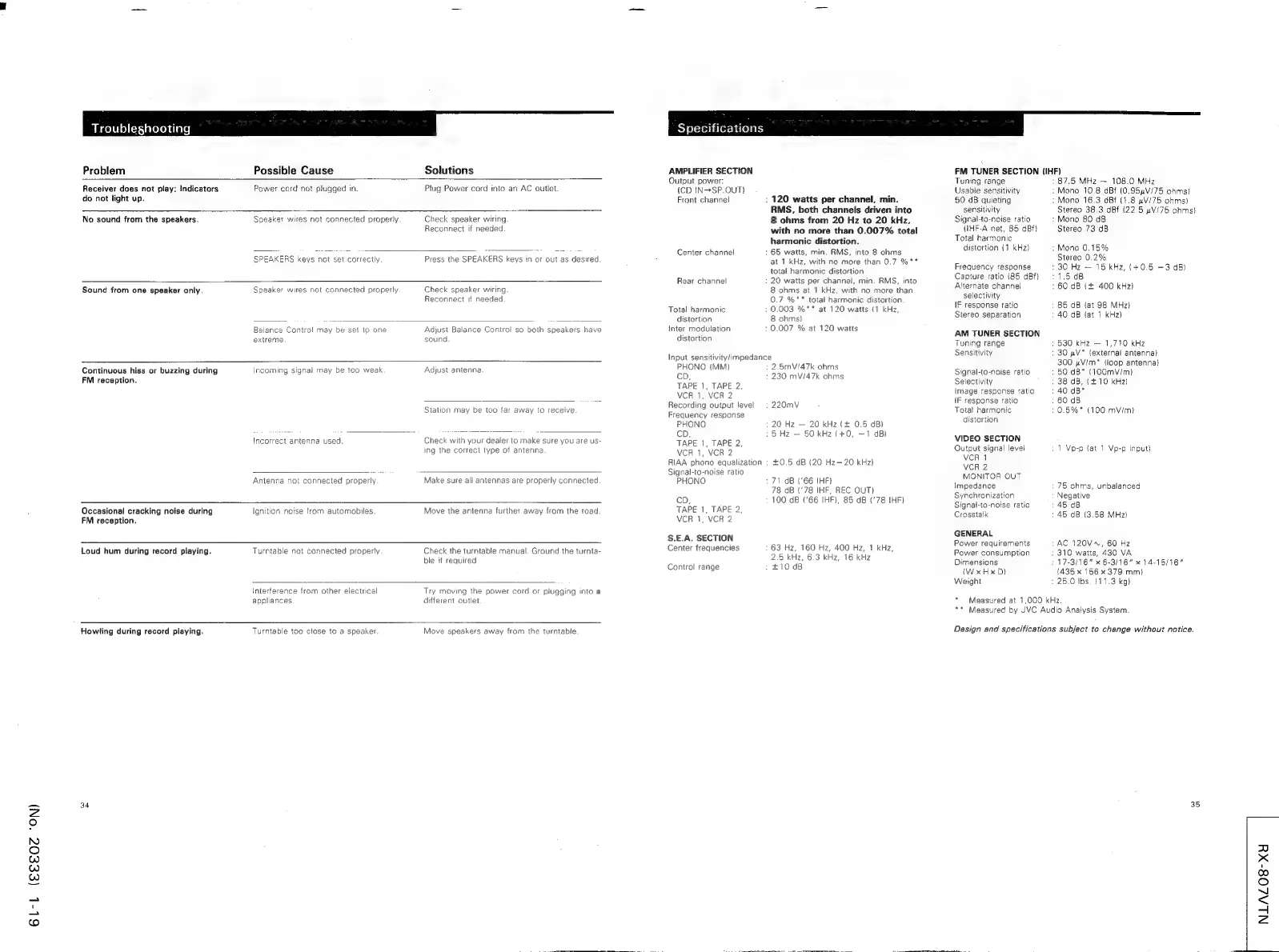

Troubleghooting : :
Problem Possible Cause
Solutions
Receiver does not play; Indicators
do not light up.
Power cord not plugged in.
Plug Power cord into an AC outlet.
No sound trom the speakers. Speaker wires not connected properly
Check speaker wiring
Reconnect if needed
SPEAKERS keys not set correctly. Press the SPEAKERS keys in or out as desired
Sound from one speaker only.
Speaker wires not connected properly
Check speaker wiring.
Reconnect if needed
Balance Control may be set to one
extreme
Adjust Balance Control so both speakers have
sound
Continuous hiss or buzzing during
FM reception.
Occasional cracking noise during
FM reception.
Incoming signal may be too weak
Incorrect antenna used
Antenna not connected properly
Ignition noise from automobiles
Make sure all antennas are properly connected
Adjust antenna
Station may be too far away to receive.
Check with your deater to make sure you are us-
ing the correct type of antenna
Move the antenna further away from the road
Loud hum during record playing. Turntable not connected properly Check the turntable manual. Ground the turnta-
ble if required
Interference from other electrical
appliances
Try moving the power cord or plugging into a
different outlet
Howling during record playing.
34
Turntable too close to a speaker
Move speakers away from the turntable
eee
ee
ee,
a
FM TUNER SECTION (IHF)
AMPLIFIER SECTION
Output power:
(CD IN>SP.OUT)
Front channel
Center channel
Rear channel
Total harmonic
distortion
inter modulation
distortion
: 120 watts per channel, min.
RMS, both channels driven into
8 ohms from 20 Hz to 20 kHz,
with no more than 0.007% total
harmonic distortion.
: 65 watts, min. RMS, into 8 ohms
at 1 kHz, with no more than 0.7 %**
total harmonic distortion
: 20 watts per channel, min. RMS, into
8 ohms at 1 kHz, with no more than
0.7 %** total harmonic distortion
0.003 %** at 120 watts (1 kHz,
8 ohms)
: 0.007 % at 120 watts
Input sensitivity/impedance
PHONO (MM)
CD,
TAPE 1, TAPE 2,
VCR 1, VCR 2
Recording output level
Frequency response
PHONO
cD,
TAPE 1, TAPE 2,
VCR 1, VCR 2
RIAA phono equalization
Signai-to-noise ratio
PHONO
CD,
TAPE 1, TAPE 2,
VCR 1, VCR 2
S.E.A. SECTION
Center frequencies
Control range
2.5mV/47k ohms
: 230 mV/47k ohms
220mV
20 Hz — 20 kHz (+ 0.5 dB)
> & Hz — 50 kHz (+0, ~1 dB)
+0.5 dB (20 Hz—20 kHz)
: 71 dB (‘66 IHF)
78 dB ('78 IHF, REC OUT)
100 dB ('66 JHF}, 85 dB (’78 IHF}
63 Hz, 160 Hz, 400 Hz, 1 kHz,
2.5 kHz, 6.3 kHz, 16 kHz
+10 dB
Tuning range
Usable sensitivity
50 dB quieting
sensitivity
Signal-to-noise ratio
(IHF-A net, 85 dBf)
Total harmonic
distortion (1 kHz)
Frequency response
Capture ratio (85 dBf)
Alternate channel
selectivity
IF response ratio
Stereo separation
AM TUNER SECTION
Tuning range
Sensitivity
Signal-to-noise ratio
Selectivity
image response ratio
IF response ratio
Total harmonic
distortion
VIDEO SECTION
Output signal level
VCR 1
VCR 2
MONITOR OUT
Impedance
Synchronization
Signal-to-noise ratio
Crosstalk
GENERAL
Power requirements
Power consumption
Dimensions
(WxHxD)
Weight
: 87.5 MHz ~ 108.0 MHz
: Mono 10.8 dBf (0.95pV/75 ohms)
: Mono 16.3 dBf (1.8 nV/75 ohms)
Stereo 38.3 dBf (22.5 nV/75 ohms}
: Mono 80 dB
Stereo 73 dB
: Mono 0.15%
Stereo 0.2%
: 30 Hz — 15 kHz, (+0.5 —3 dB)
21.5 dB
: 60 dB (+ 400 kHz)
85 dB (at 98 MHz)
40 dB (at 1 kH2)
: 630 kHz — 1,710 kHz
: 30 pV" (external antenna)
300 wVim* (loop antenna)
: 50 dB* (100mV/m)
: 38 dB, (£10 kHz)
: 40 dB*
: 60 dB
2 0.5%* (100 mVim)
: 1 Vp-p (at 1 Vp-p input}
75 ohms, unbalanced
: Negative
: 45 dB
45 dB (3.58 MHz}
AC 120V~, 60 Hz
: 310 watts, 480 VA
2 17-3/16" x 6-3/16” x 14-15/16”
{436 x 156 x 379 mm)
: 25.0 Ibs. {11.3 kg)
* Measured at 1,000 kHz.
** Measured by JVC Audio Analysis System.
Design and specifications subject to change without notice.
