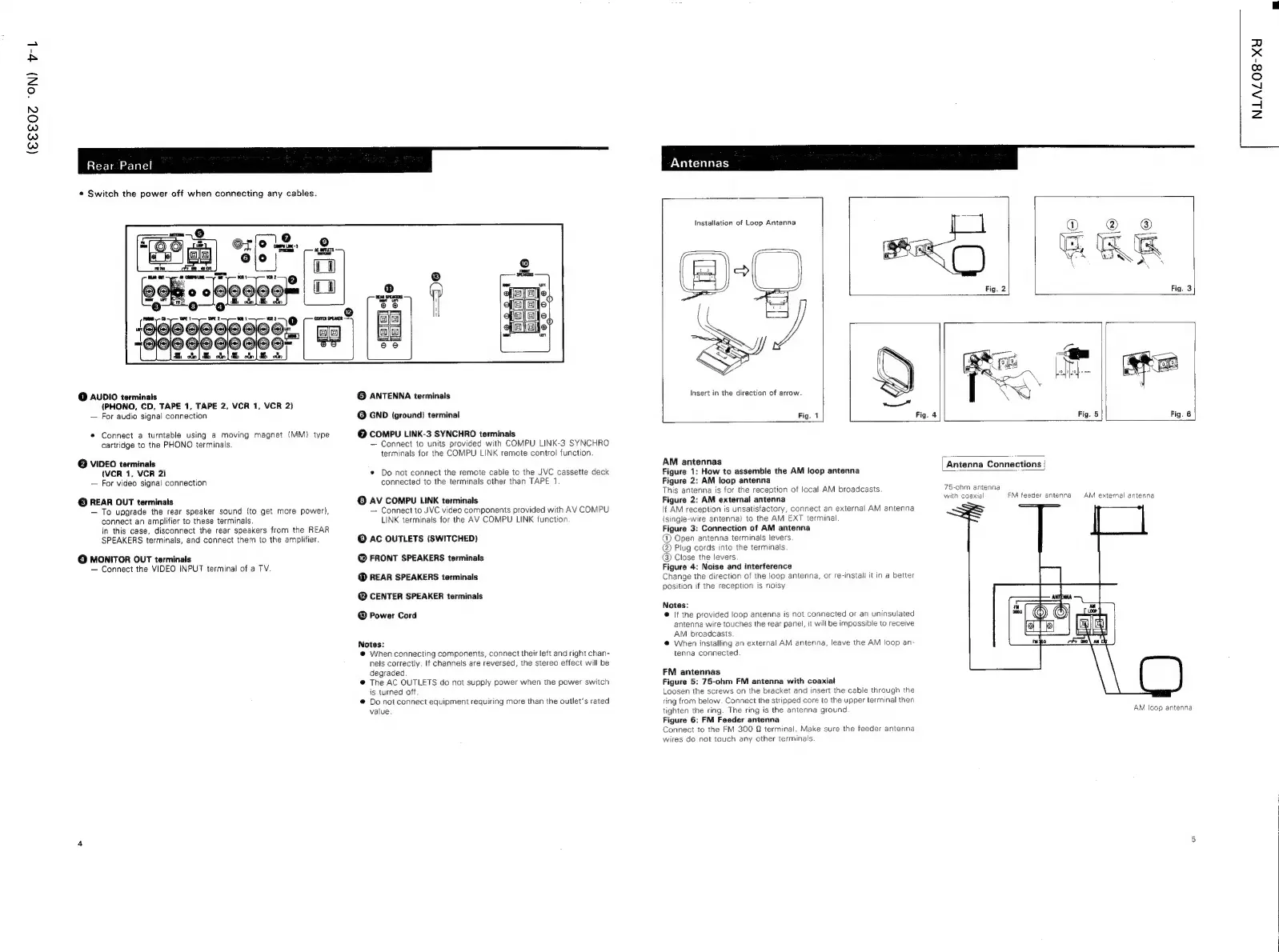

JVC RX-807VTN

(EEEO? “ON) HL
* Switch the power off when connecting any cables.
@ AUDIO terminals
{PHONO, CD, TAPE 1, TAPE 2, VCR 1, VCR 2)
— For audio signal connection
* Connect a turntable using a moving magnet (MM) type
cartridge to the PHONO terminals.
@ VIDEO terminals
(VCR 1, VCR 2)
— For video signal connection
© REAR OUT terminals
— To upgrade the rear speaker sound (to get more power),
connect an amplifier to these terminals.
In this case, disconnect the rear speakers from the REAR
SPEAKERS terminals, and connect them to the amplifier.
© MONITOR OUT terminals
— Connect the VIDEO INPUT terminal of a TV.
@ ANTENNA terminals
@ GND (ground) terminal
@ COMPU LINK-3 SYNCHRO terminals
— Connect to units provided with COMPU LINK-3 SYNCHRO
terminals for the COMPU LINK remote control function.
* Do not connect the remote cable to the JVC cassette deck
connected to the terminals other than TAPE 1.
© AV COMPU LINK terminals
— Connect to JVC video components provided with AV COMPU
LINK terminals for the AV COMPU LINK function
@© AC OUTLETS (SWITCHED)
@ FRONT SPEAKERS terminals
@ REAR SPEAKERS terminals
@ CENTER SPEAKER terminals
@ Power Cord
Notes:
@ When connecting components, connect their left and right chan-
nels correctly. if channels are reversed, the stereo effect will be
degraded.
@ The AC OUTLETS do not supply power when the power switch
is turned off.
@ Do not connect equipment requiring more than the outlet’s rated
value.
installation of Loop Antenna
Fig. 2 Fig. 3
Insert in the direction of arrow.
(2 Fig. 1
Fig. 4
Fig. 5 Fig. 6
AM antennas
Figure 1: How to assemble the AM loop antenna
Figure 2: AM loop antenna
This antenna is for the reception of local AM broadcasts
Figure 2: AM external antenna
If AM reception is unsatisfactory, connect an external AM antenna
(single-wire antenna) to the AM EXT terminal
Figure 3: Connection of AM antenna
@) Open antenna terminals levers
(2) Plug cords into the terminals
@) Close the levers
Figure 4: Noise and interference
Change the direction of the loop antenna, or re-install it in a better
position if the reception is noisy
Notes:
@ /|f the provided loop antenna is not connected or an uninsulated
antenna wire touches the rear panel, it will be impossible to receive
AM broadcasts
@ When installing an external AM antenna, leave the AM loop an-
tenna connected
FM antennas
Figure 5: 75-ohm FM antenna with coaxial
Loosen the screws on the bracket and insert the cable through the
ting from below. Connect the stripped core to the upper terminal then
tighten the ring. The ring is the antenna ground
Figure 6: FM Feeder antenna
Connect to the FM 300 Q terminal. Make sure the feeder antenna
wires do not touch any other terminals
75-ohm antenna
with coaxial FM feeder antenna = AM external antenna
AM loop antenna
NLAZO8-Xu
