Connecting the rear and center speakers

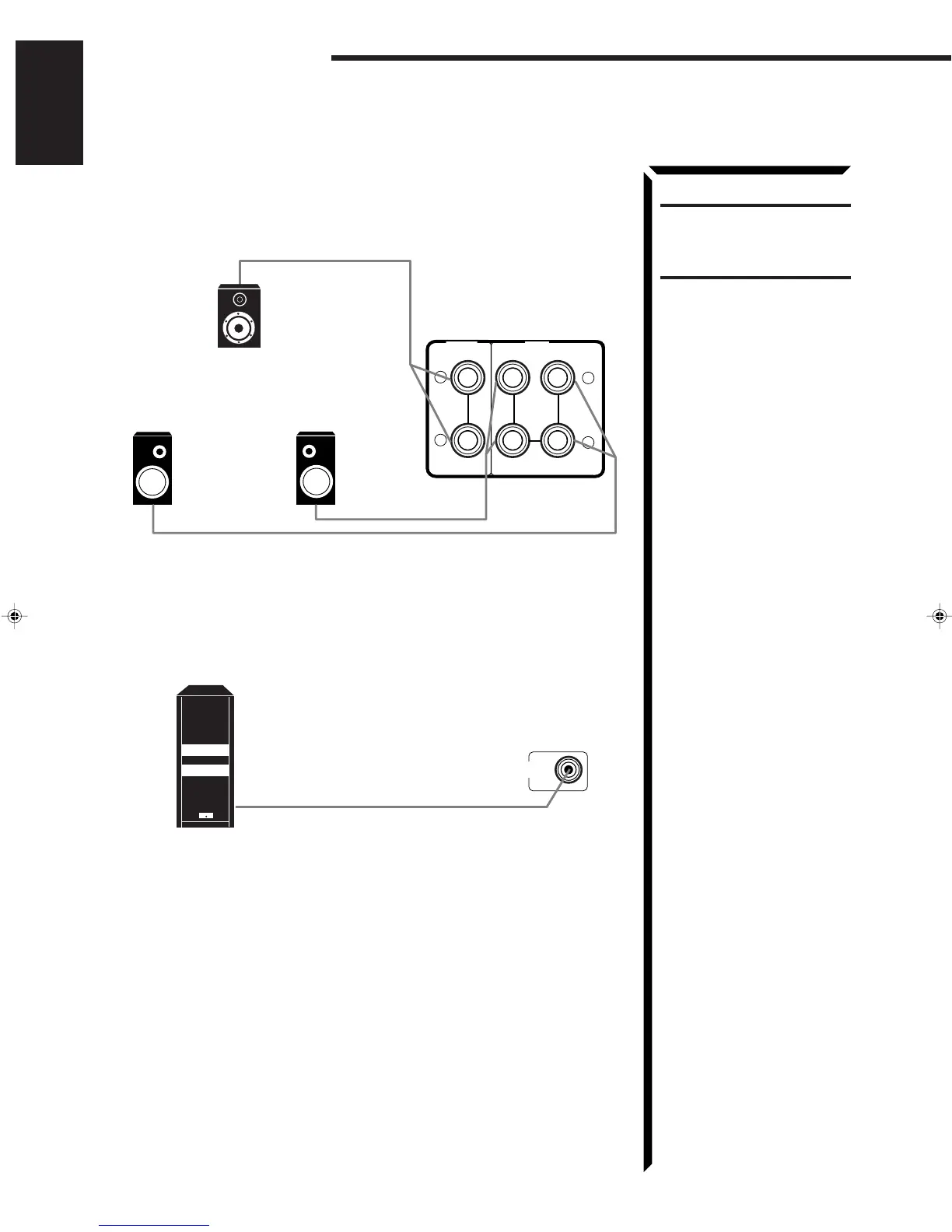

Connect the rear speakers to the REAR SPEAKERS terminals and a center speaker to
the CENTER SPEAKER terminals.
Connecting the subwoofer speaker
Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the
rear panel, using a cable with RCA pin plugs.
Center speaker
Left rear speaker
Right rear speaker
Getting Started
CAUTION:
Use speakers with the
SPEAKER IMPEDANCE
indicated by the speaker
terminals.
Powered subwoofer
+
–
+
–
RIGHT
LEFT
REAR
SPEAKERS
CENTER
SPEAKER
SUBWOOFER
OUT
