6
English

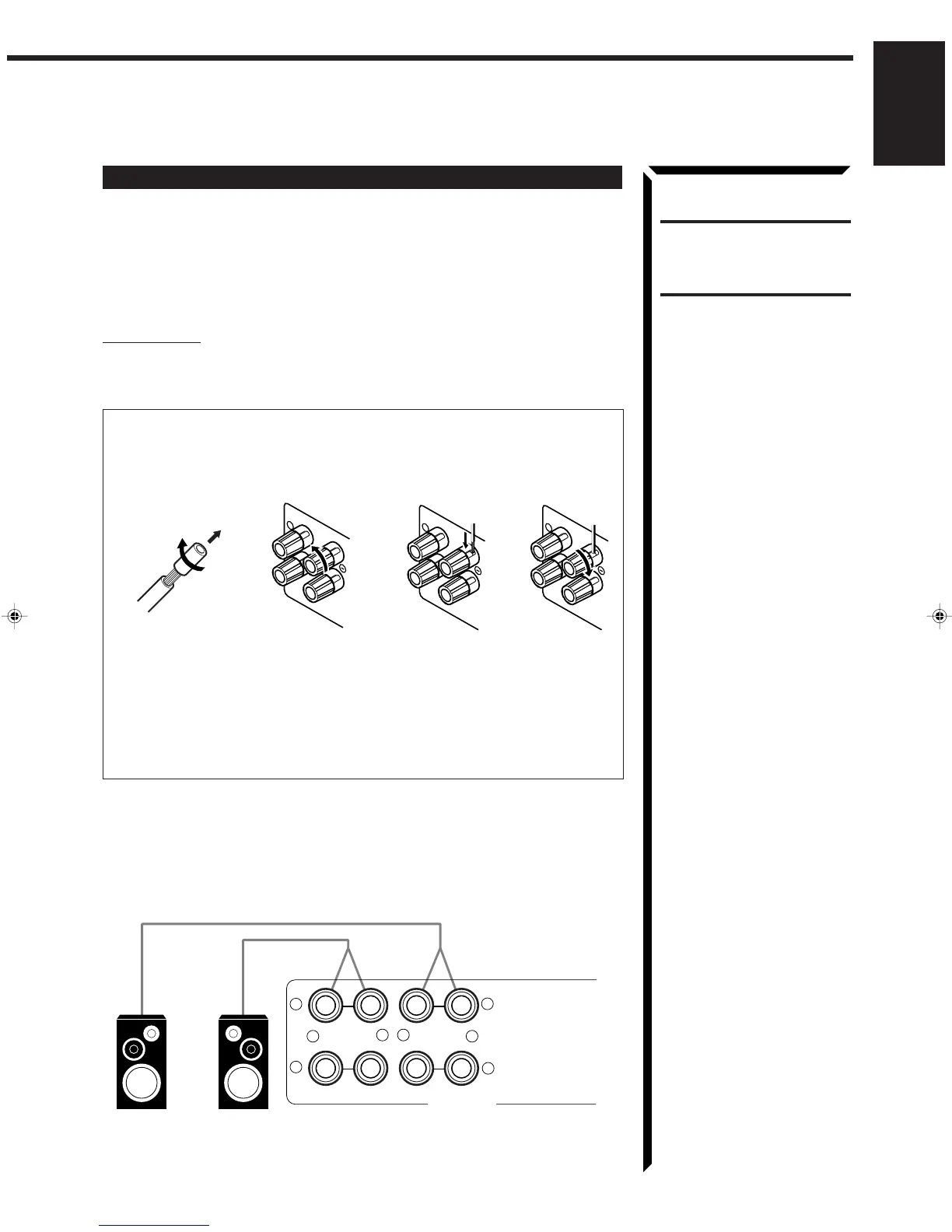

Connecting the Speakers
You can connect the following speakers:
Two pairs of front speakers to produce normal stereo sound.
One pair of rear speakers to enjoy the surround effect.
One center speaker to produce more effective surround effect (to emphasize human
voices).
One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker setting information
properly to obtain the best possible performance. For details, see pages 19 and 20.
For each speaker (except for subwoofer), connect the (–) and (+) terminals on the
rear panel to the (–) and (+) terminals marked on the speakers. For connecting a
subwoofer, see page 7.
1 Cut, twist and remove the insulation at the end of each speaker signal cable.
2 Turn the knob counterclockwise.
3 Insert the speaker signal cable.
4 Turn the knob clockwise.
Connecting the front speakers
Connect the front speakers to the FRONT SPEAKERS terminals.
You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1
terminals, and another pair to the FRONT SPEAKERS 2 terminals).
RIGHT
1
RIGHT
1
134
RIGHT
1
2
CAUTION:
Use speakers with the
SPEAKER IMPEDANCE
indicated by the speaker
terminals.
Right SpeakerLeft Speaker
+
+
RIGHT LEFT
1
2
1
2
FRONT SPEAKERS
EN01-13.RX-884R[E]/1.PM5 98.3.26, 11:40 AM6
