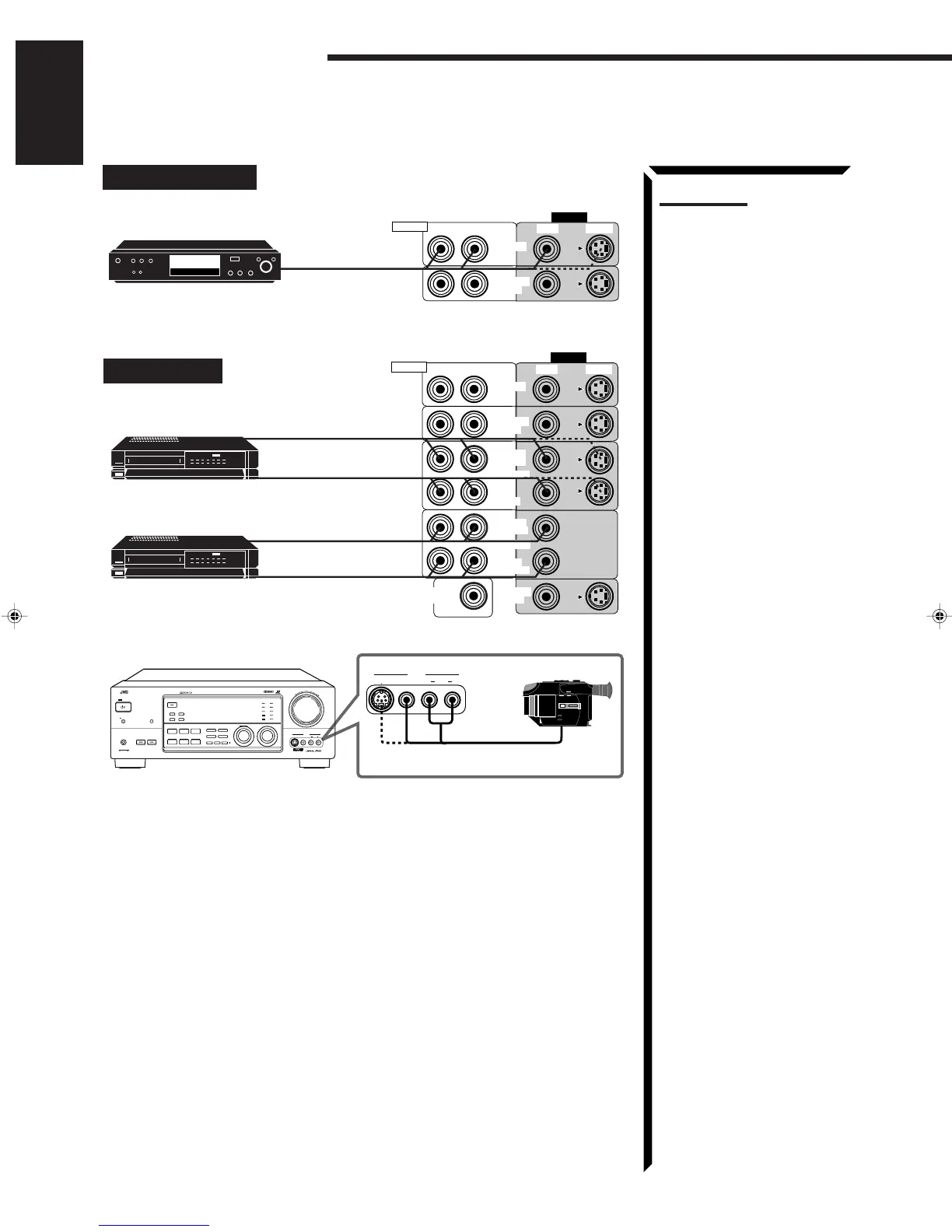

Connecting DVD player
To audio/video
output
DVD player
Connecting VCRs
RIGHT
VIDEO
VIDEO S-VIDEORIGHT LEFT
AUDIO
SUBWOOFER
OUT
MONITOR
OUT
VCR 1
IN
(PLAY)
OUT
(REC)
IN
(PLAY)
OUT
(REC)
TV SOUND
/DBS
DVD
VCR 2
S-VHS
VHS
S-VHS (or VHS) VCR
To audio/video output
To audio/video input
To audio/video output
To audio/video input
Note:
To enjoy Dolby Digital with the
DVD player as the source,
connect the DVD player, using
the method described in “Digital
connections” on page 12.
VHS VCR
VIDEO
S-VIDEO VIDEO AUDIOLR
–
+
