JVC RX-D302BC - Page 5

3

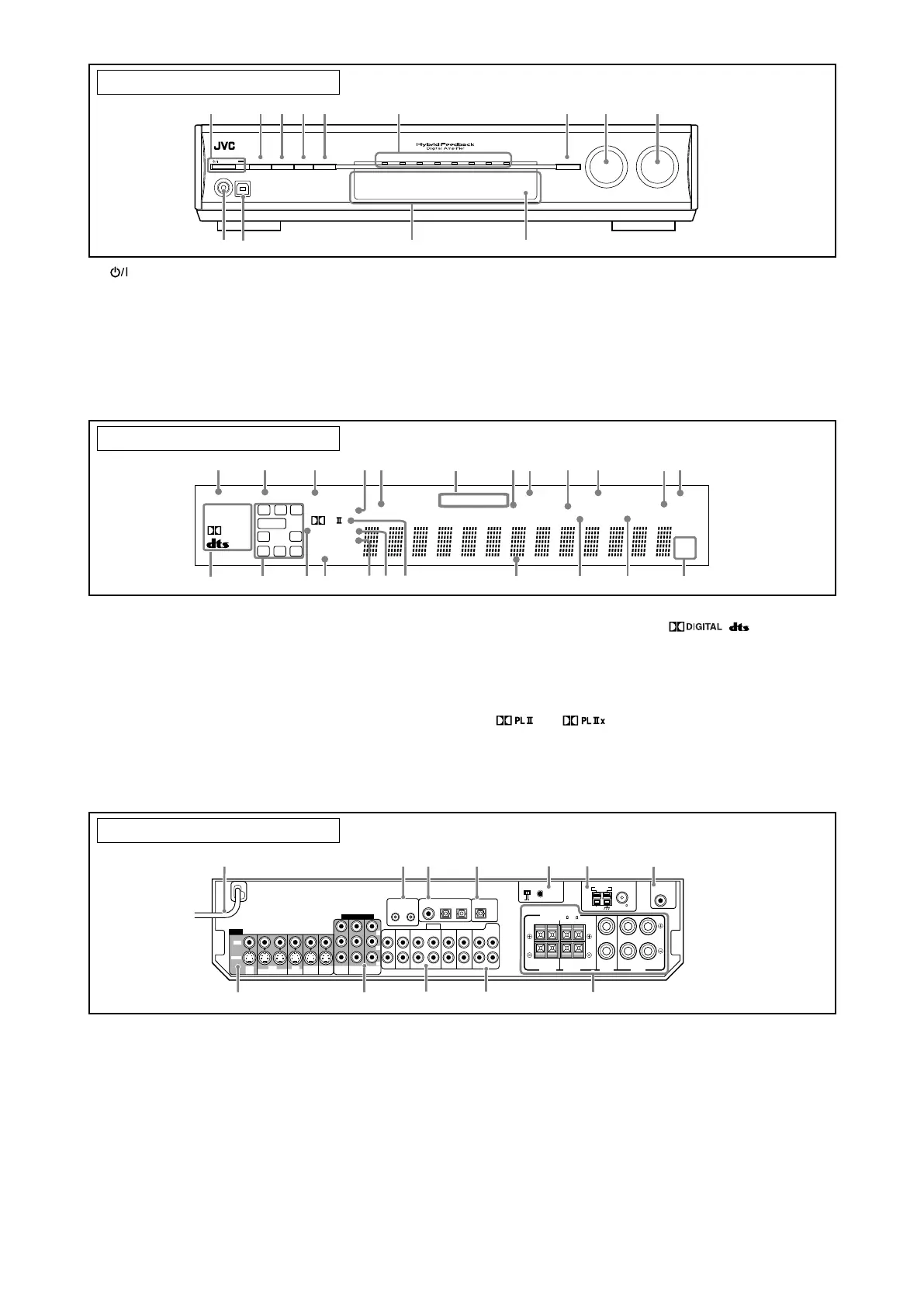

Front panel
1 STANDBY/ON button and standby lamp (14)
2 CC CONVERTER button (16)
3 SETTING button (17, 19)
4 ADJUST button (23)
5 SURROUND button (33)
6 Source lamps
DVD MULTI, DVR/DVD, VCR, DBS, TV, USB, FM, AM
7 • SET button (17, 19, 23)
• TUNER PRESET button (28)
8 • SOURCE SELECTOR (14, 28)
• MULTI JOG (17, 19, 23, 28, 33)
9 MASTER VOLUME control (15)
p PHONES jack (15)
q USB terminal (12)
w Display window (see below)
e Remote sensor (4)
1 ANALOG indicator (14)
2 DUAL MONO indicator (21)
3 AUTO SURR (surround) indicator (33)
4 HEADPHONE indicator (15, 30)
5 CC CONVERTER 1 2 indicator (16)
6 Tuner operation indicators (27)
TUNED, STEREO
7 DIGITAL EQ indicator (24)
8 AUTO MUTING indicator (28)
9 C.TONE indicator (26)
0 ONE TOUCH OPERATION indicator (22)
- INPUT ATT (attenuate) indicator (25)
= SLEEP indicator (16)
1 Power cord (13)
2 AV COMPU LINK-III terminals (34)
3 DIGITAL IN terminals (11)
• Coaxial: 1(DVR/DVD)
• Optical: 2(DBS)
• Optical: 3(VCR)
4 DIGITAL OUT terminal (11)
5 USB WIRELESS ANTENNA terminal (12)
6 ANTENNA terminals (5)
7 SUBWOOFER OUT jack (6)
8 VIDEO jacks (7– 10)
VIDEO (composite video) jacks, S-VIDEO jacks
• Input: DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)
• Output: VCR OUT (REC), DVR OUT (REC), MONITOR OUT
Rear panel
See pages in parentheses for details.
~ Digital signal format indicators (15, 29, 30)
DIGITAL AUTO, LINEAR PCM,
, , 96/24
! Signal and speaker indicators (16)
@ NEO:6 indicator (30)
# VIRTUAL SB indicator (32)
$ 3D-PHONIC indicator (30, 31)
% DSP indicator (30, 31)
^
and indicator (29 – 31)
& Main display
* B (bass).BOOST indicator (25)
( MIDNIGHT indicator (21)
) Frequency unit indicators
MHz (for FM stations), kHz (for AM stations)
9 COMPONENT VIDEO (Y, PB, PR) jacks (7– 10)
VCR (DBS) IN, DVR/DVD IN, MONITOR OUT
p AUDIO jacks (7 – 10)
• Input: TV IN, DBS IN, VCR IN (PLAY), DVR/DVD IN (PLAY)
• Output: VCR OUT (REC), DVR OUT (REC)
q DVD MULTI IN jacks (8)
CENTER, SUBWOOFER, SURR – L, SURR – R
w Speakers terminals (6)
SURROUND BACK SPEAKERS, SURROUND SPEAKERS,
CENTER SPEAKER, FRONT SPEAKERS
