JVC RX-DP10VBK User Manual

RX-DP10VBK/RX-DP10VSL
RX-DP10RSL
1-9
Prior to performing the following procedure, remove
the top cover.
Cut off the tie band fixing the harnesses.
Disconnect the harnesses from the connector CN61,
CN63, CN64 and CN65 on the power supply 1
board.
Remove the four screws I attaching the power supply
1 board.
Prior to performing the following procedure, remove
the top cover and power supply 1 board.
Disconnect the harness from the connector CN45 on
the regulator board.
Remove the screw J attaching the bracket and
regulator board.
1.
2.
3.

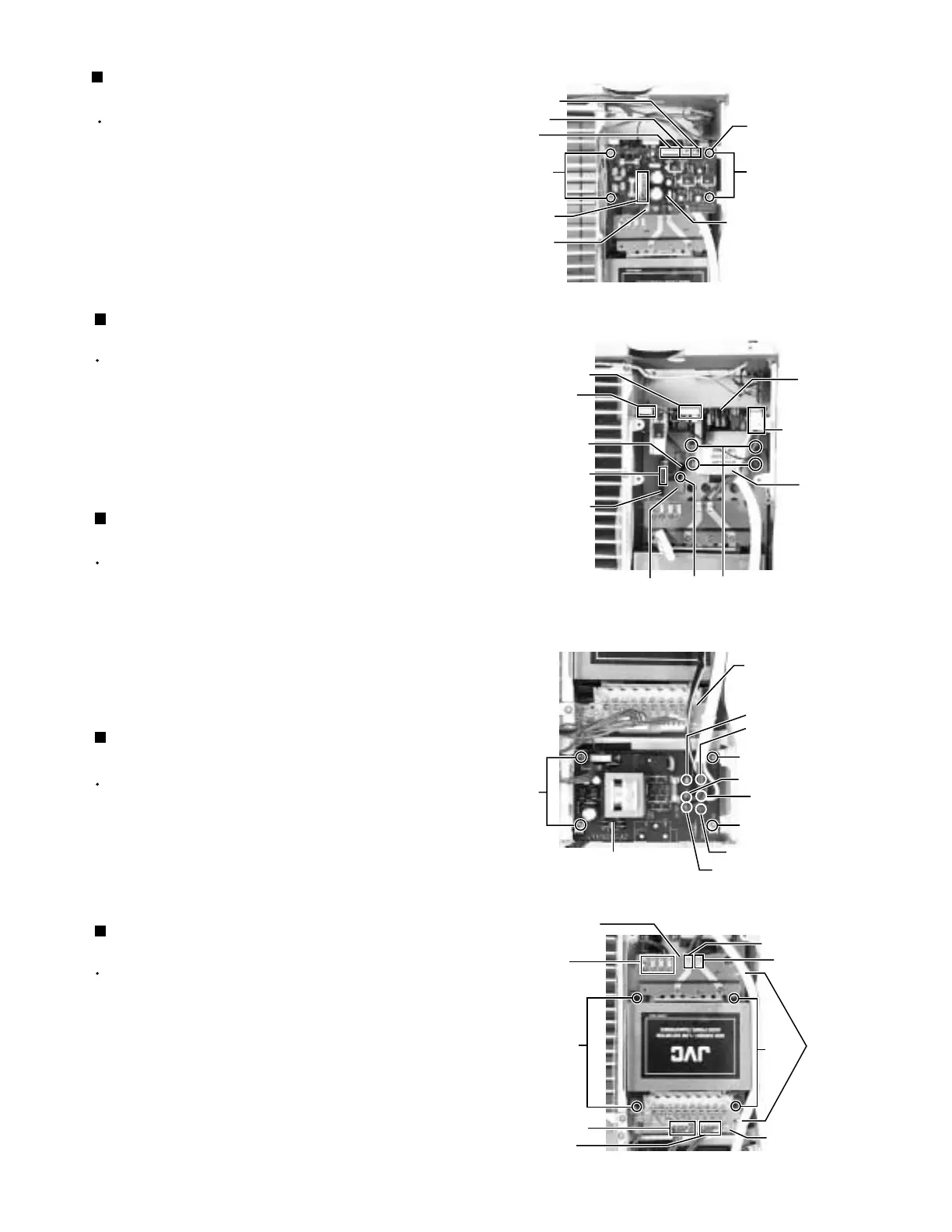

Removing the power supply 1 board
(See Fig.16)
1.
2.
Removing the regulator board
(See Fig.17)
Prior to performing the following procedure, remove
the top cover.
Unsolder the solder points TA1, TA2 and PW21,
PW22, PW23, PW24 on the power/ fuse board.
Remove the four screws L attaching the power/ fuse
board.
1.
2.
Removing the power/ fuse board
(See Fig.18)
Prior to performing the following procedure, remove
the top cover and power supply 1 board.
Cut off the tie band fixing the harnesses.
Disconnect the harnesses from the connector CN83
and CN84 on the power trans 2 board.
Unsolder the solder points PW81 and PW82 on the
power supply 1 board.
Remove the four screws M attaching the power
transformer 2.
1.
2.
3.
4.
Removing the power transformer 2
(See Fig.19)
Prior to performing the following procedure, remove
the top cover and power supply 1 board.
Disconnect the harnesses from the connector CN41,
CN42 and CN43 on the power supply 2 board and
CN45 on the regulator board.
Remove the four screws K attaching the power
transformer 1.
1.
2.
Removing the power transformer 1
(See Fig.17)
M
Fig.17
Fig.16
Fig.18
Fig.19
Regulator
board
K
CN63
CN64
CN65
CN61
Tie band
Tie band
(fixing the
earth wire)
I
(Front side)
Power supply 1 board
Power
supply 2
board
(Front side)
CN42
CN43
CN45
CN41
I
J
PW21 (blue)
PW22 (brown)
PW23 (red)
TA2 (white)
TA1 (black)
PW24 (white)
Power cord
L
L
L
Power/ fuse board
PW81
PW82
Power trans
1 board
Power trans
2 board
WR81
(to CN61 of
the power
supply 1 board)
CN84
CN83
Power
transformer
2
Power
transformer
2
M
Power
transformer
1
Bracket
Harness band
