INDEX

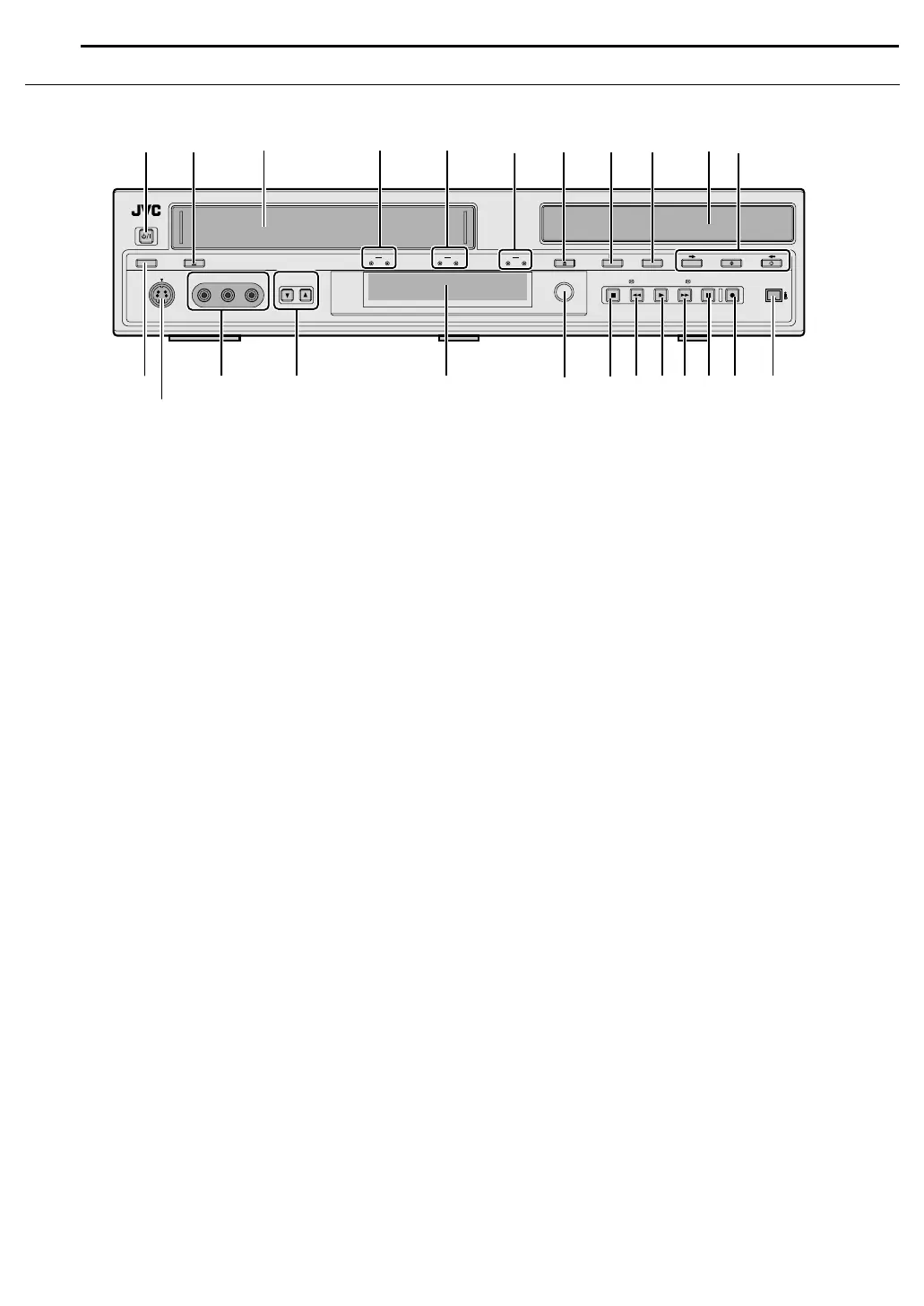

Front View
A Operate Button (OPERATE 1)
B Eject Button (EJECT x)(VCR)
墌 pg. 43
C Cassette Loading Slot
D VCR Lamp 墌 pg. 43
VCR Recording Lamp (REC)
墌 pg. 46
E TBC Lamp
墌 pg. 45
Dubbing Lamp (DUBB.)
墌 pg. 58
F DVD Lamp (DVD)
墌 pg. 19, 23
DVD Recording Lamp (REC)
墌 pg. 36
G Open/Close Button (EJECT x)(DVD)
墌 pg. 11
H VCR/DVD Button
I Recording Mode Button (REC MODE)
墌 pg. 36, 46
J Disc Tray
K Dubbing Button (DUBB.) 墌 pg. 58
Dubbing Direction Button (VCR]DVD/VCR}DVD)
墌 pg. 58, 60
L TBC Button
墌 pg. 45
M S-video Input Connectors (S-VIDEO)
墌 pg. 63
N Video/Audio Input Connectors (VIDEO/AUDIO (L/R))
墌 pg. 63
When using a monaural audio cable, use [AUDIO L
(MONO)] input connector. In this case, the sound on the
left channel is also recorded on the right channel.
O Channel Button (CH +/–)
墌 pg. 36, 46
P Front Display Panel
墌 pg. 14
Q Infrared Beam Receiving Window
R Stop Button (8) 墌 pg. 23, 43
S Reverse Search Button (3) (DVD deck)
墌 pg. 24, 30
Rewind Button (3) (VCR deck)
墌 pg. 43, 44
Reverse Slow Button (SLOW –)
墌 pg. 25
T Play Button (4)
墌 pg. 23, 43
U Forward Search Button (5) (DVD deck)
墌 pg. 24, 30
Fast Forward Button (5) (VCR deck)
墌 pg. 43, 44
Forward Slow Button (SLOW +)
墌 pg. 25
V Pause Button (9)
墌 pg. 23, 44
W Record Button (7)
墌 pg. 36, 46
X DV Input connector [DV IN (i*)] (DVD deck only)
墌 pg. 62
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
