JVC SX-DW303 Service Manual

1-8 (No.MB082)

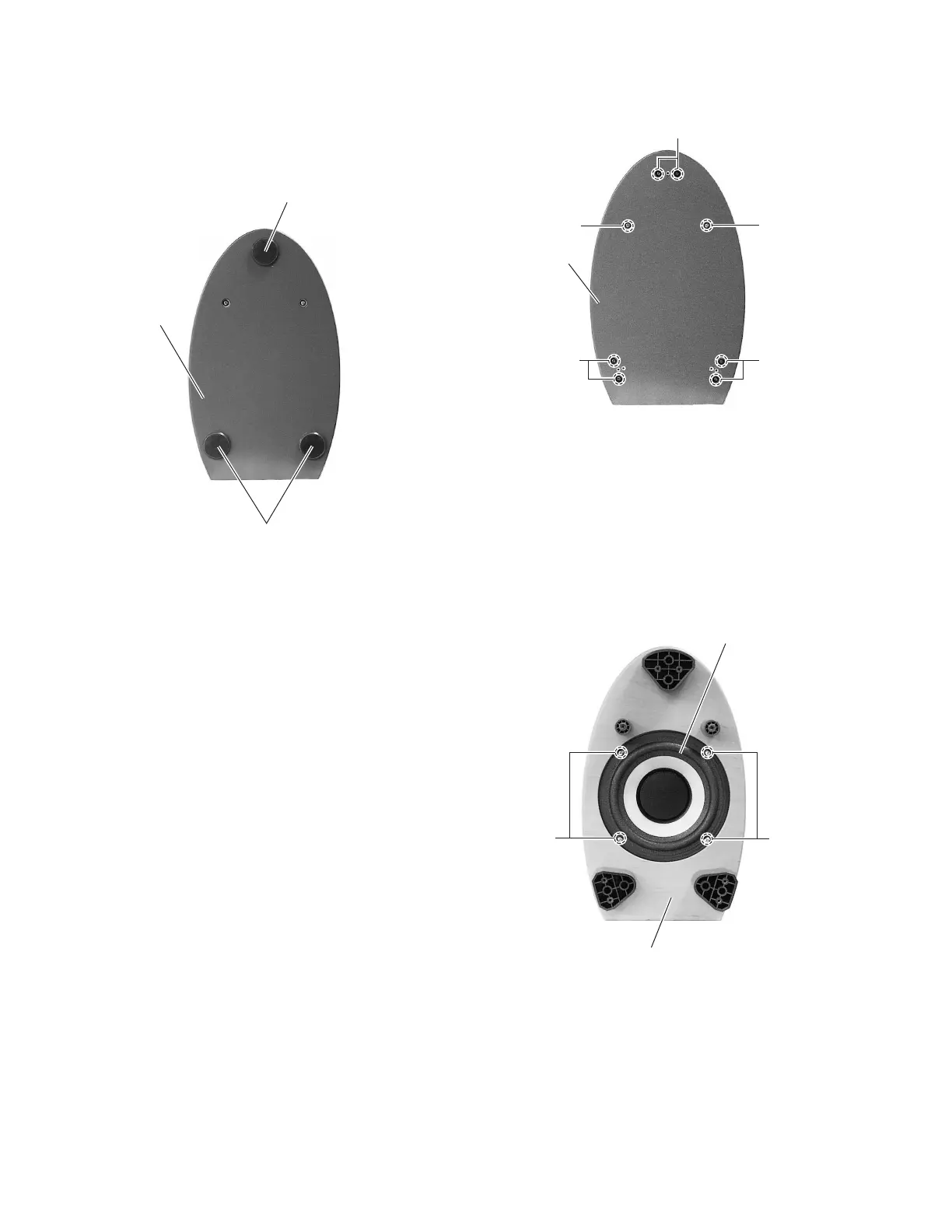

3.6 Removing the stand
(See Figs.7 and 8)
(1) Remove the foot spacers. (See Fig.7.)
(2) Remove the eight screws H attaching the stand. (See
Fig.8.)
(3) Remove the stand toward this side.
Fig.7
Fig.8
3.7 Removing the speaker unit
(See Fig.9)
• Prior to performing the following procedures, remove the
stand.
(1) Remove the four screws J attaching the speaker unit.
(2) Take out the speaker unit from the service cabinet toward
this side.
Fig.9
Stand
Foot spacer
Foot spacers
H
H
H
Stand
HH
Speaker unit
Service cabinet
JJ
