JVC TD-V711 Service Manual

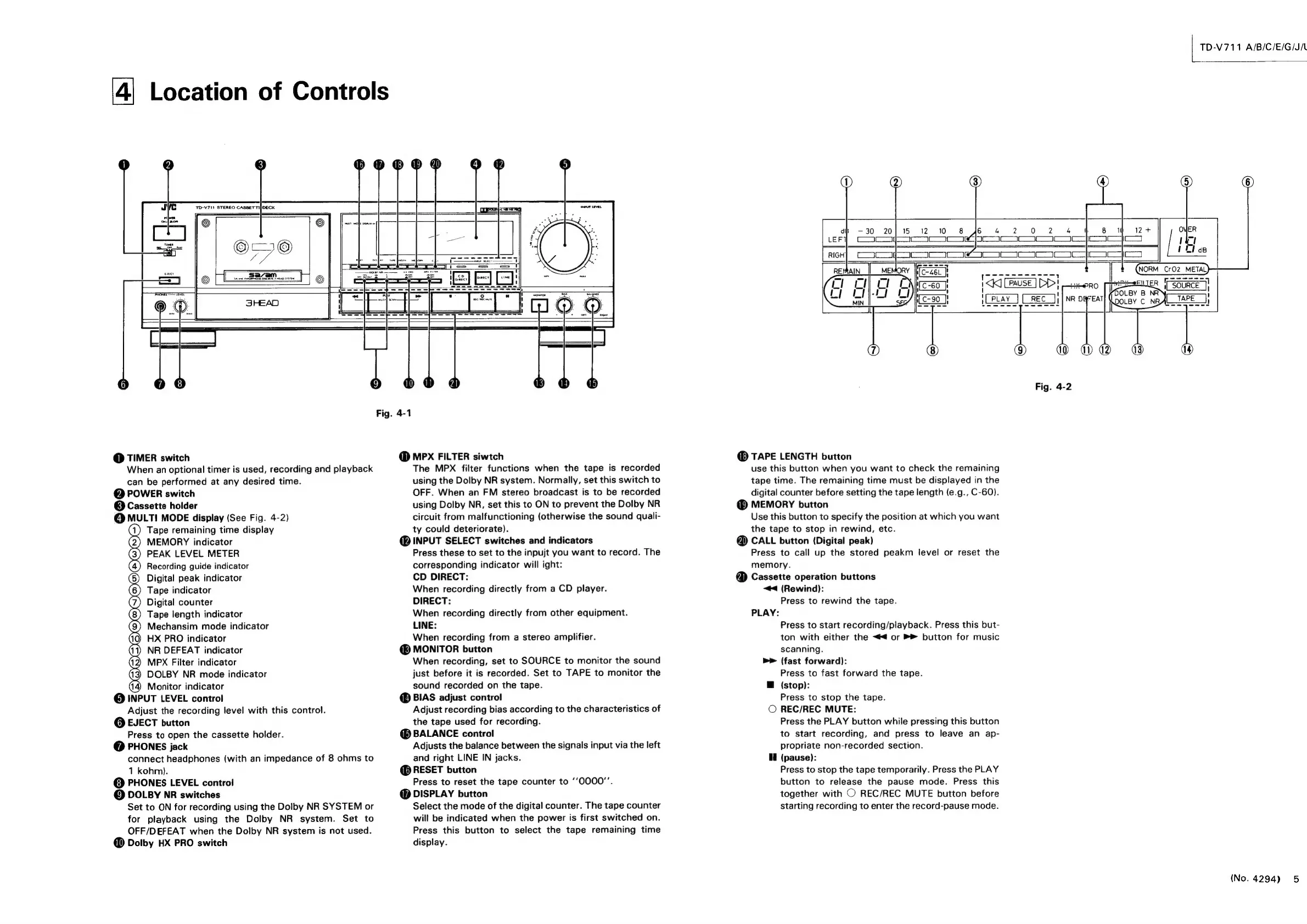

4) Location of Controls
TO-V711 STEREO CASSETTIIDECK
@ TIMER switch
When an optional timer is used, recording and playback
can be performed at any desired time.
@ POWER switch
© Cassette holder
@ MULTI MODE display (See Fig. 4-2)
Tape remaining time display
MEMORY indicator
PEAK LEVEL METER
Recording guide indicator
Digital peak indicator
Tape indicator
Digital counter
Tape length indicator
Mechansim mode indicator
HX PRO indicator
NR DEFEAT indicator
MPX Filter indicator
DOLBY NR mode indicator
Monitor indicator
@ INPUT LEVEL control
Adjust the recording level with this control.
@ EJECT button
Press to open the cassette holder.
@ PHONES jack
connect headphones (with an impedance of 8 ohms to
1 kohm).
@ PHONES LEVEL control
@ DOLBY NR switches
Set to ON for recording using the Dolby NR SYSTEM or
for playback using the Dolby NR system. Set to
OFF/DEFEAT when the Dolby NR system is not used.
@ Dolby HX PRO switch
POWOQVOMWOOOONWO)
Fig. 4-1
@ MPxX FILTER siwtch
The MPX filter functions when the tape is recorded
using the Dolby NR system. Normally, set this switch to
OFF. When an FM stereo broadcast is to be recorded
using Dolby NR, set this to ON to prevent the Dolby NR
circuit from malfunctioning (otherwise the sound quali-
ty could deteriorate).
@ INPUT SELECT switches and indicators
Press these to set to the inpujt you want to record. The
corresponding indicator will ight:
CD DIRECT:
When recording directly from a CD player.
DIRECT:
When recording directly from other equipment.
LINE:
When recording from a stereo amplifier.
@® MONITOR button
When recording, set to SOURCE to monitor the sound
just before it is recorded. Set to TAPE to monitor the
sound recorded on the tape.
@® BIAS adjust control
Adjust recording bias according to the characteristics of
the tape used for recording.
@® BALANCE control
Adjusts the balance between the signals input via the left
and right LINE IN jacks.
@ RESET button
Press to reset the tape counter to ‘‘O0000’’.
@ DISPLAY button
Select the mode of the digital counter. The tape counter
will be indicated when the power is first switched on.
Press this button to select the tape remaining time
display.
dis -—30 20] 15 12 10
TD-V711 A/B/C/E/G/J/A
LEFY Sie It
RIGH} C300 C
@® TAPE LENGTH button
use this button when you want to check the remaining
tape time. The remaining time must be displayed in the
digital counter before setting the tape length (e.g., C-60).
@® MEMORY button
Use this button to specify the position at which you want
the tape to stop in rewind, etc.
@) CALL button (Digital peak)
Press to call up the stored peakm level or reset the
memory.
@ Cassette operation buttons
<< (Rewind):
Press to rewind the tape.
PLAY:
Press to start recording/playback. Press this but-
ton with either the << or ®® button for music
scanning.
bP (fast forward):
Press to fast forward the tape.
@ (stop):
Press to stop the tape.
© REC/REC MUTE:
Press the PLAY button while pressing this button
to start recording, and press to leave an ap-
propriate non-recorded section.
Hi (pause):
Press to stop the tape temporarily. Press the PLAY
button to release the pause mode. Press this
together with O REC/REC MUTE button before
starting recording to enter the record-pause mode.
Fig. 4-2
(No. 4294)
5
