JVC TD-W777A - Main Parts Location; Front and Rear Section Component Placement

TD-W777 weceesu

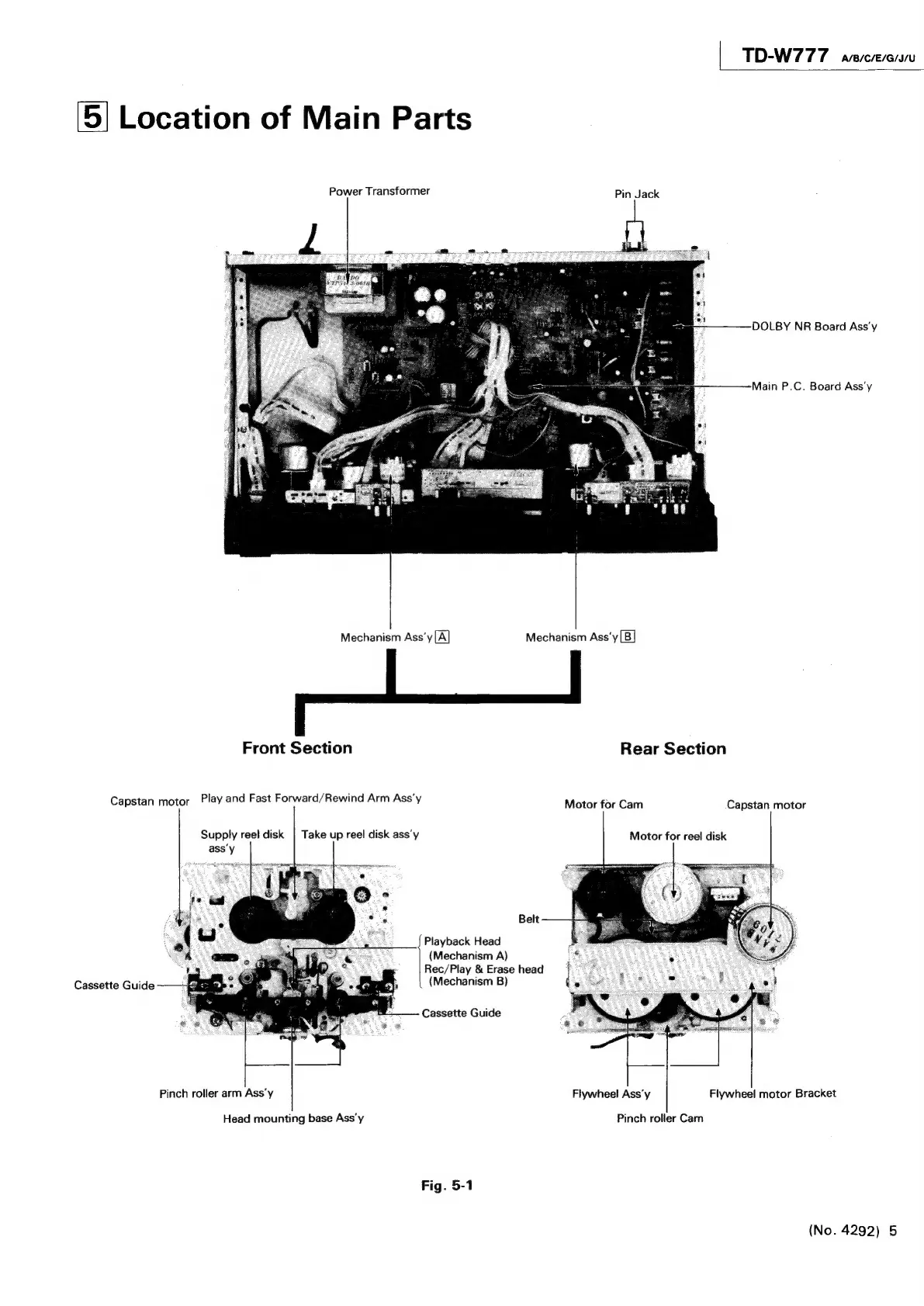

'5| Location of Main Parts
Power Transformer Pin Jack
DOLBY NR Board Ass‘y
Main P.C. Board Ass’y
Mechanism Ass’y[A] Mechanism Ass’‘y [B]
Front Section Rear Section
Capstan motor Play and Fast Forward/Rewind Arm Ass’y Motor for Cam Capstan motor
Supply reel disk | Take up reel disk assy Motor for reel disk
Belt
Playback Head
(Mechanism A)
Rec/Play & Erase head
Cassette
Guide
(Mechanism
B)
Cassette Guide
Pinch roller arm Ass’y Flywheel Ass’y Flywheel motor Bracket
Head mounting base Ass’y Pinch roller Cam
Fig. 5-1
(No. 4292) 5
