JVC TH-S3 Service Manual

3-6

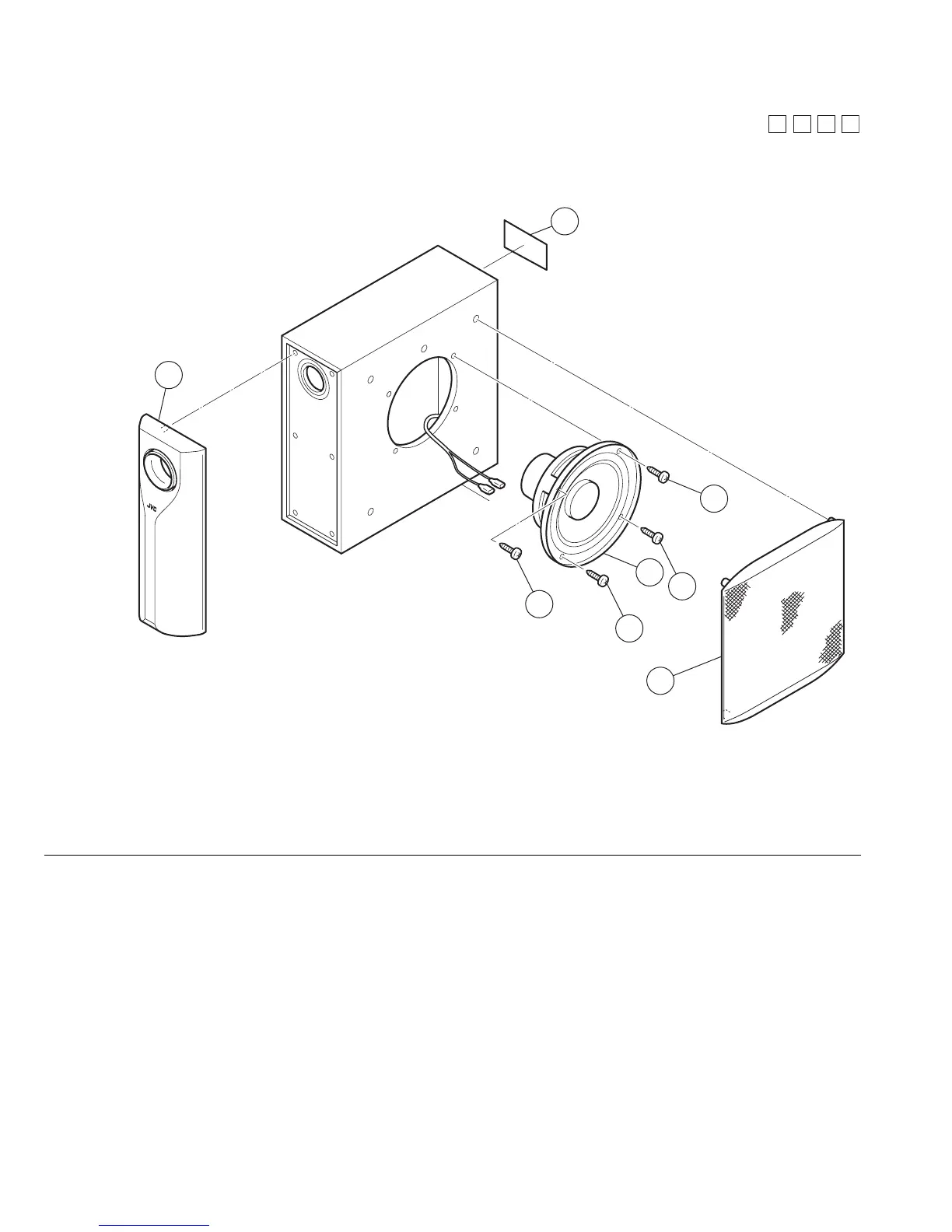

Speaker assembly and parts list
Speaker(Subwoofer)
Block No. [M][2][M][M]
 Symbol No. Part No. Part Name Description Local
1 J200-THS300S-30 SUB F.PANEL
2 300-J0THS31600 WOOFER UNIT
3 411-B84016AB1 SCREW (x4)
4 J201-THS300B-10 CLOTH FRAME ASY
5 600-0WS300-00 SPEC LABEL S3B,S3E,S3EN,S3EV
5 600-0WS301-00 SPEC LABEL S3A
5 600-0WS302-00 SPEC LABEL S3EE
1
5
3
4
3
3
3
2
Block No.
M
M
M
2
(Subwoofer)
