1-8 (No.MB187)

SECTION 3

DISASSEMBLY

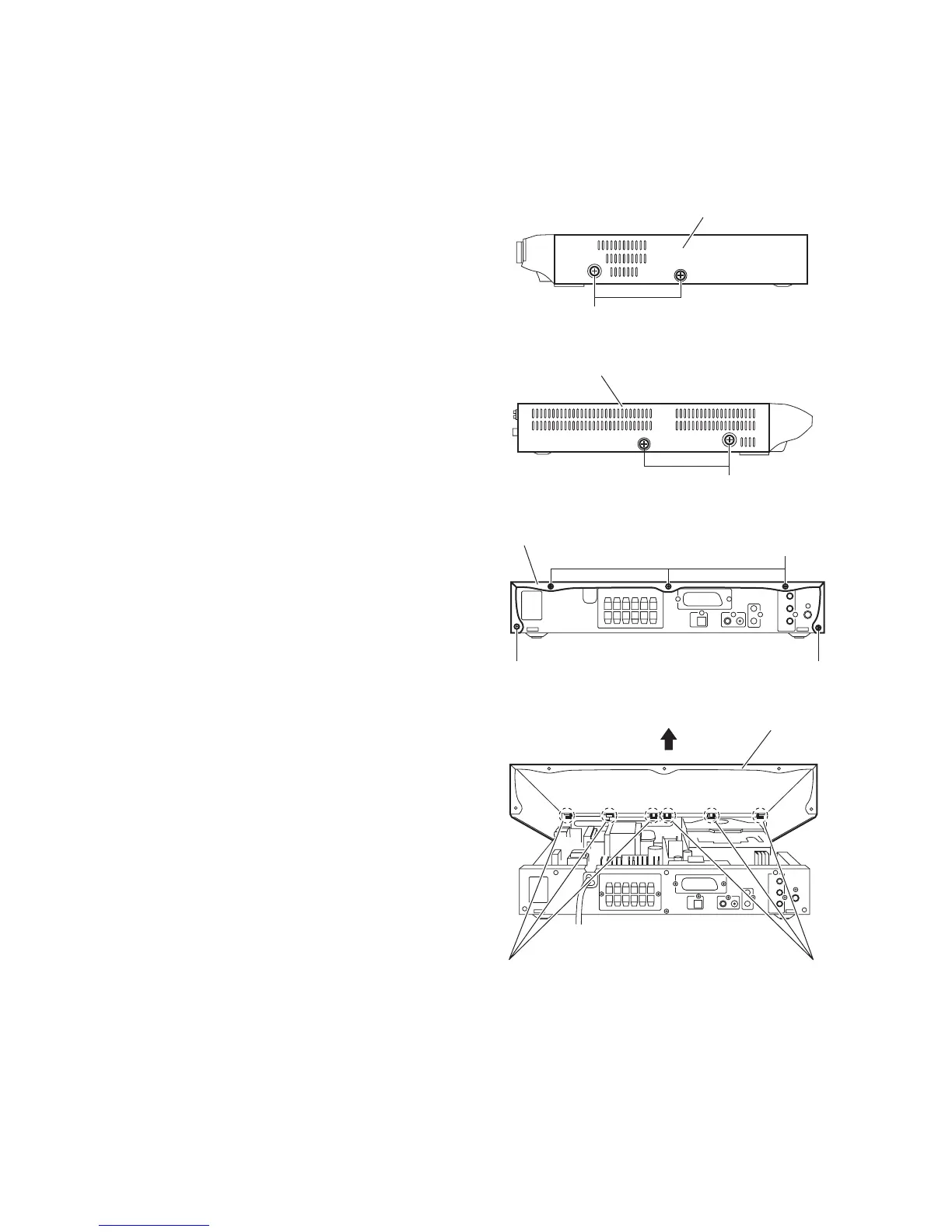

3.1 Main body section

3.1.1 Removing the metal cover

(See Figs.1 to 4)

(1) From the both sides of the main body, remove the four

screws A attaching the metal cover. (See Figs.1 and 2.)

(2) From the back side of the main body, remove the five

screws B attaching the metal cover. (See Fig.3.)

(3) Lift the rear section of the metal cover in the direction of the

arrow while extending the lower sections of the metal cov-

er, release the claws a using a longer screwdriver from the

inside as required. (See Fig.4.)

Note:

Do not damage any parts and boards inside the main body

when releasing the joints a using the longer screwdriver. (See

Fig.4.)

Fig.1

Fig.2

Fig.3

Fig.4

Metal cover

B B

Metal cover
