3.1.2 Removing the front panel assembly
(See Figs.5 to 7)
• Remove the metal cover.
(1) From the right side of the DVD mechanism assembly, push
the slide cam and pull the tray assembly out of the main
body in the direction of the arrow. (See Fig.5.)
(2) From the front side of the main body, remove the CD fitting
assembly from the tray assembly in the direction of the ar-
row and push in the tray assembly as before. (See Fig.6.)
(3) From the top side of the main body, disconnect the card
wire from the connector CN428
on the main board. (See
Fig.5.)
Reference:
When reassembling, connect the card wire to the con-
nector CN428
on the main board after passing it through
the lower part of the holder board. (See Fig.5.)
(4) Disconnect the card wire from the connectors CN454
on
the HP terminal board. (See Fig.5.)
(5) From the bottom side of the main body, remove the three
screws C attaching the front panel assembly. (See Fig.7.)
(6) From the both and bottom sides of the main body, remove
the front panel assembly in the direction of the arrow while
releasing the engagement sections b and c. (See Fig.7.)

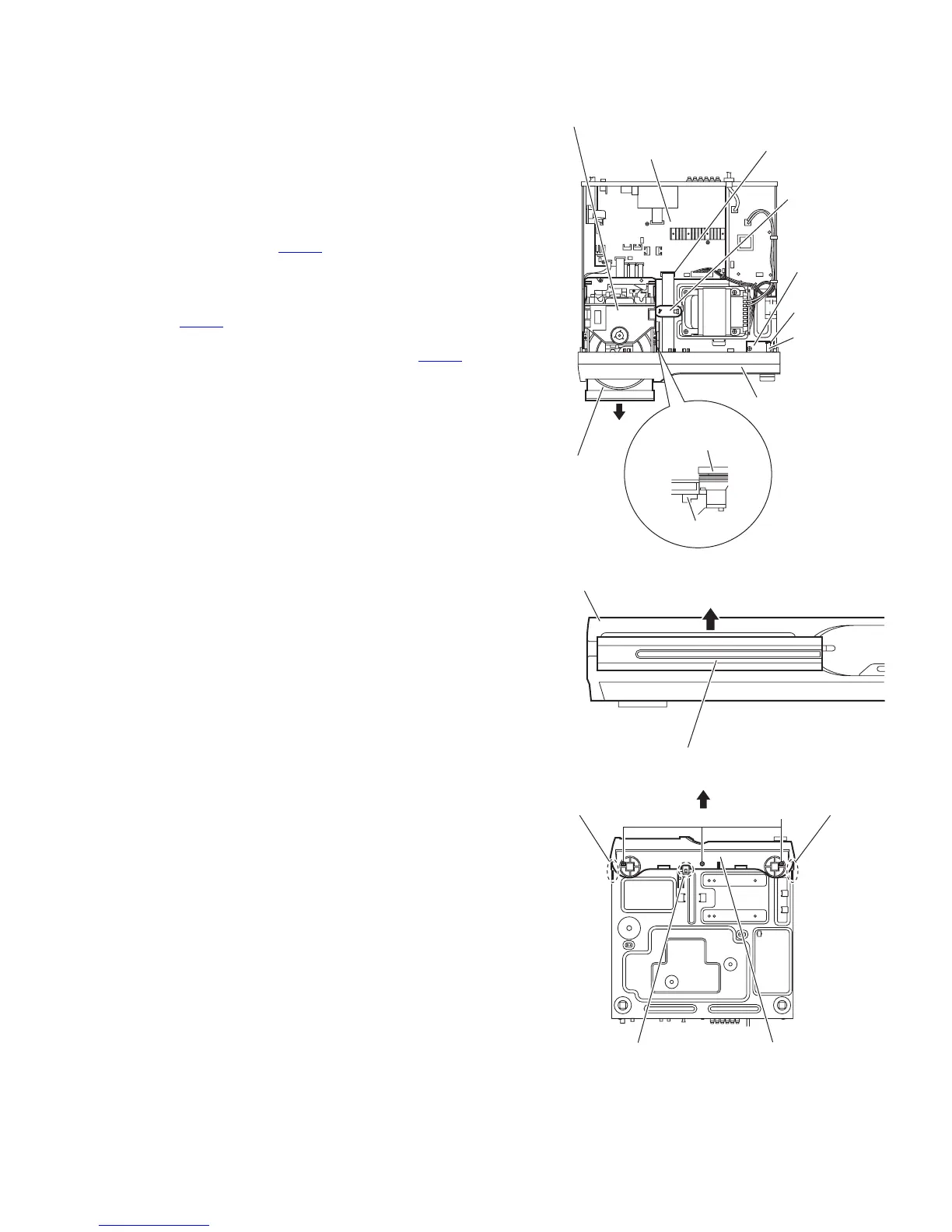

Fig.5
Fig.6
Fig.7
Slide cam
DVD mechanism
assembly
Tray assembly
Front panel assembly
Card wire
CN454
HP terminal
board
Holder board
CN428
Main board
DVD mechanism assembly
Front panel assembly
CD fitting assembly
b b
c
C
Front panel assembly
