(No.MB393)1-9
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the metal cover
(See Figs.1 to 4)
(1) From the both sides of the main body, remove the four
screws A attaching the metal cover. (See Figs.1 and 2.)
(2) From the back side of the main body, remove the five
screws B attaching the metal cover. (See Fig.3.)
(3) Lift the rear section of the metal cover in the direction of the
arrow while extending the lower sections of the metal cov-
er, release the claws a using a longer screwdriver from the
inside as required. (See Fig.4.)
Note:
Do not damage any parts and boards inside the main body
when releasing the claws a using the longer screwdriver. (See
Fig.4.)

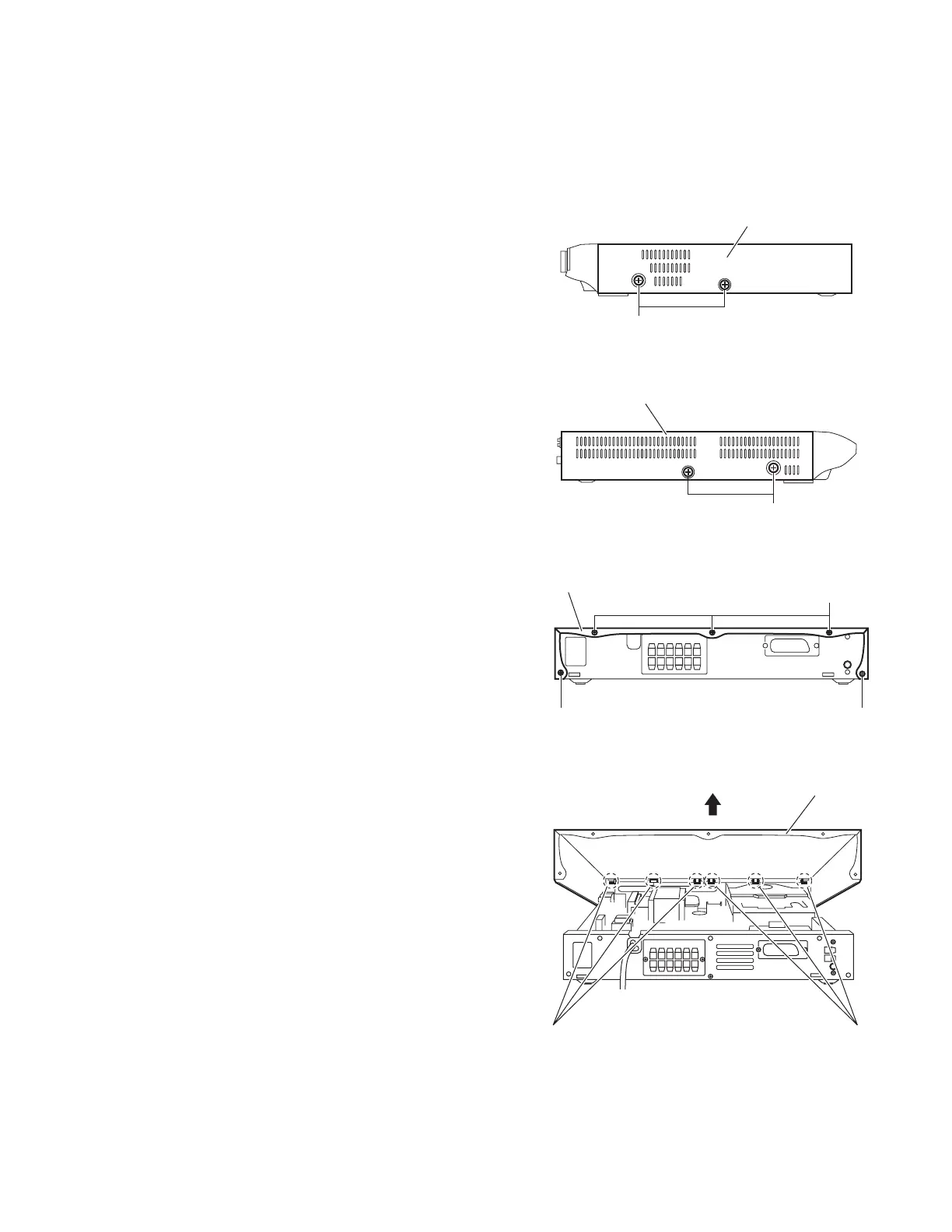

Fig.1
Fig.2
Fig.3
Fig.4
A
Metal cover
A
Metal cover
B B
B
Metal cover
a
Metal cover
a
