JVC UX-A3 User Manual

UX-A3 B/E/G/GI/EN

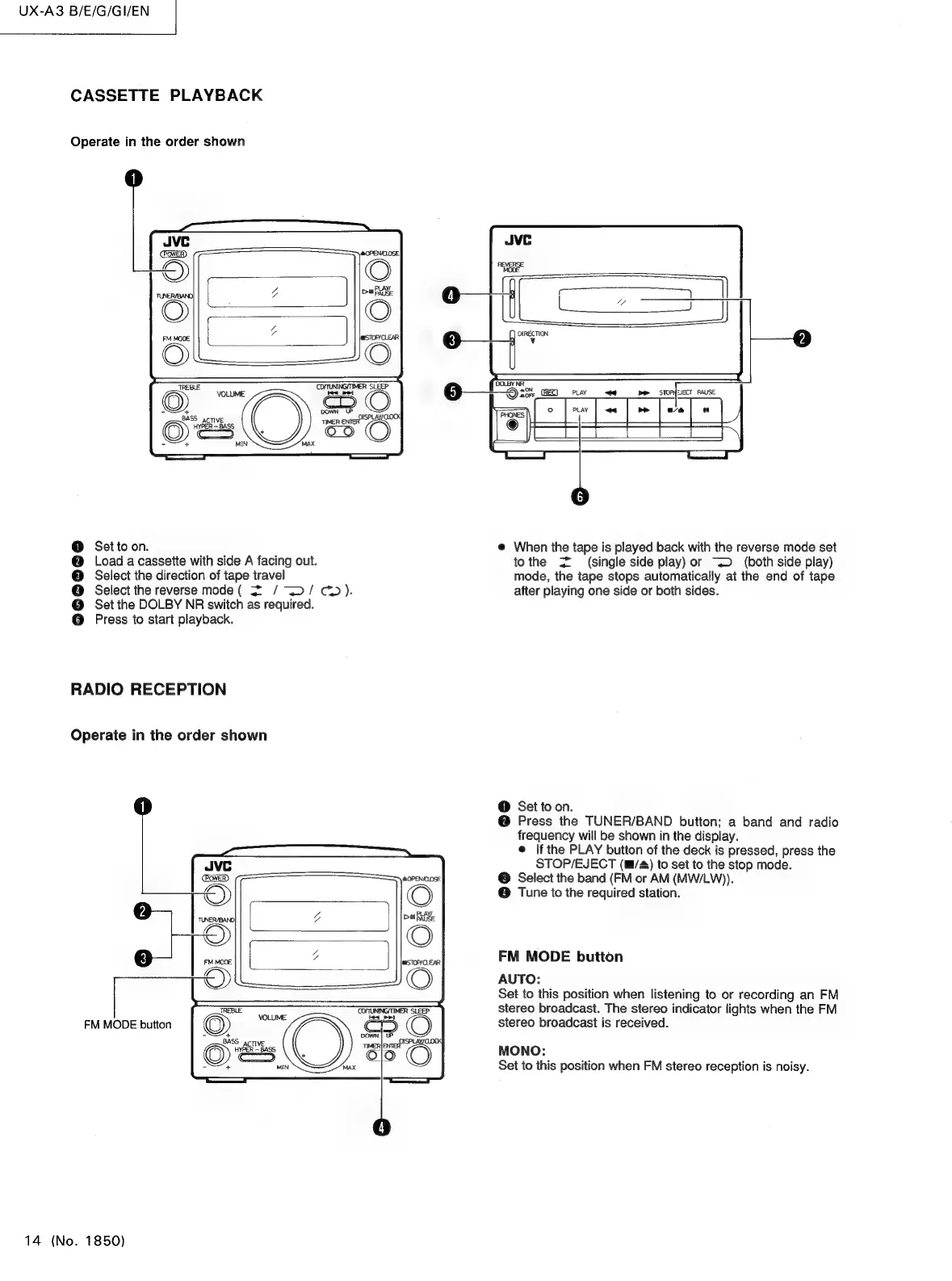

CASSETTE PLAYBACK
Operate in the order shown
PLAY,
PAUSE
ea
CO/TUNINGIT! ‘SLEEP
ie cy ©
pa UP
HA YEAS
Ess (ome)
MIN MAX
Set to on.
Load a cassette with side A facing out.
Select the direction of tape travel
Select the reverse mode ( = / =D/ >).
Set the DOLBY NR switch as required.
Press to start playback.
RADIO RECEPTION
Operate in the order shown
PLAY)
Dit pause
O
STOP/CLEAR
O
COMTUNING/TIMER SLEEP
hea Pr
TREBLE
VOLUME ©
= BASS DOWN | UP
HVA Bags Tiverlente ee
©) O|O
* + MIN MAX
FM MODE button
14 (No. 1850)
@ When the tape is played back with the reverse mode set
tothe 2 (single side play) or <> (both side play)
mode, the tape stops automatically at the end of tape
after playing one side or both sides.
@ Set toon.
@ Press the TUNER/BAND button; a band and radio
frequency will be shown in the display.
© |f the PLAY button of the deck is pressed, press the
STOP/EJECT (li/4) to set to the stop mode.
© Select the band (FM or AM (MW/LW)).
@ Tune to the required station.
FM MODE button
AUTO:
Set to this position when listening to or recording an FM
stereo broadcast. The stereo indicator lights when the FM
stereo broadcast is received.
MONO:
Set to this position when FM stereo reception is noisy.
