UX-A3 B/E/G/GI/EN

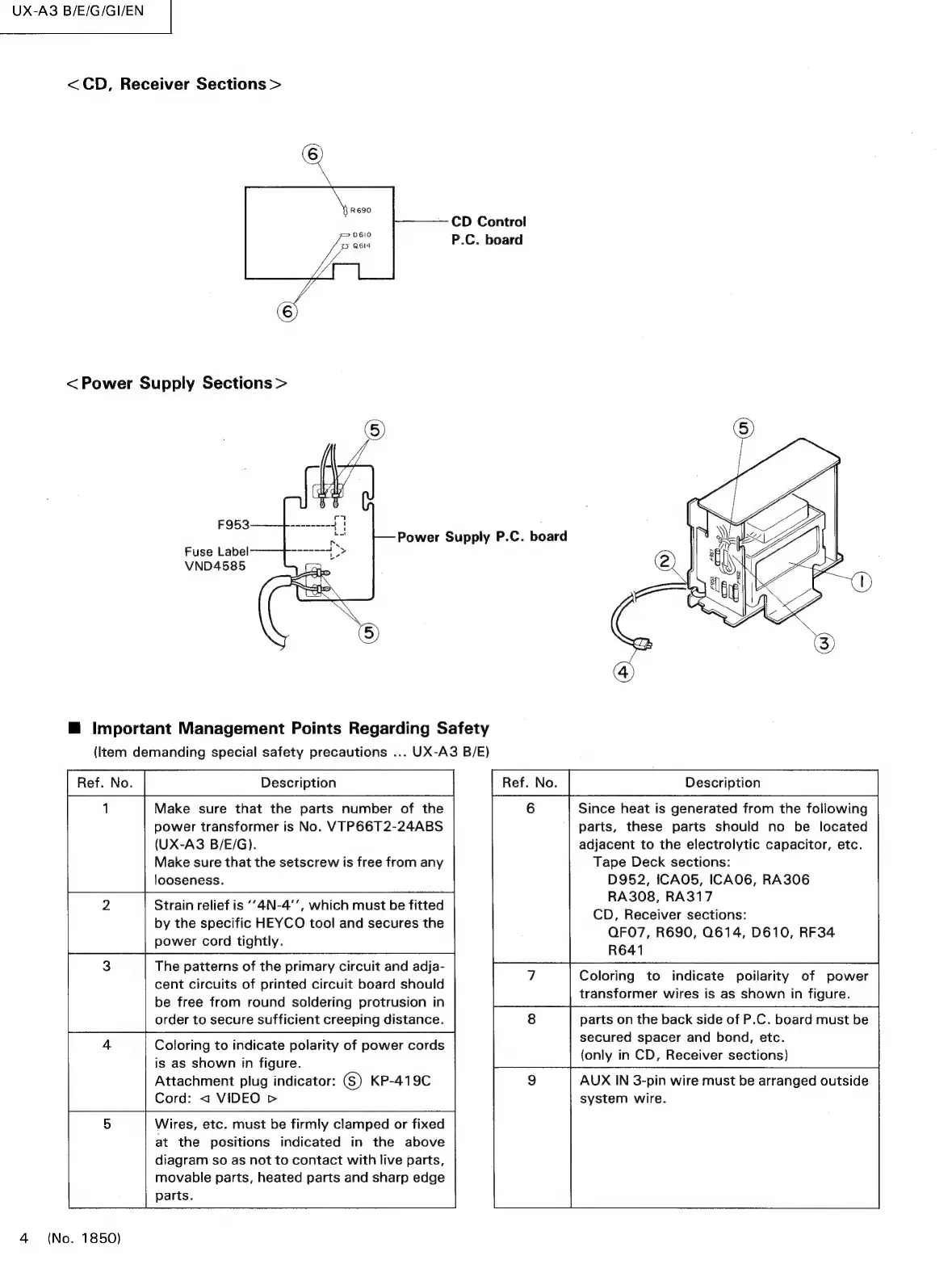

<CD, Receiver Sections >
CD Control
P.C. board
<Power Supply Sections >
Power Supply P.C. board
H Important Management Points Regarding Safety
(Item demanding special safety precautions ... UX-A3 B/E)
Ref. No. Description
1 Make sure that the parts number of the
power transformer is No. VIP66T2-24ABS
(UX-A3 B/E/G).
Make sure that the setscrew is free from any
looseness.
2 Strain relief is ‘4N-4’’, which must be fitted
by the specific HEYCO tool and secures the
power cord tightly.
3 The patterns of the primary circuit and adja-
cent circuits of printed circuit board should
be free from round soldering protrusion in
order to secure sufficient creeping distance.
Description
Since heat is generated from the following
parts, these parts should no be located
adjacent to the electrolytic capacitor, etc.
Tape Deck sections:
D952, ICAOS, ICA06, RA306
RA308, RA317
CD, Receiver sections:
QFO7, R690, 0614, D610, RF34
R641
Coloring to indicate poilarity of power
transformer wires is as shown in figure.
parts on the back side of P.C. board must be
secured spacer and bond, etc.
(only in CD, Receiver sections)
4 Coloring to indicate polarity of power cords
is as shown in figure.
Attachment plug indicator: S) KP-419C
Cord: < VIDEO p
5 Wires, etc. must be firmly clamped or fixed
at the positions indicated in the above
diagram so as not to contact with live parts,
movable parts, heated parts and sharp edge
| Parts.
AUX IN 3-pin wire must be arranged outside
system wire.
4 (No. 1850)
