JVC UX-G68E - DISASSEMBLY; Main Unit Disassembly Procedures

(No.MB595)1-7
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the Metal cover
(See Fig.1 and 2)
(1) Remove the four screws A (both side) attaching the Metal
cover. (See Fig.1)
(2) Remove the two screws B attaching the Rear cover. (See
Fig.2)
(3) Remove the five screws C attaching the Metal cover. (See
Fig.2)

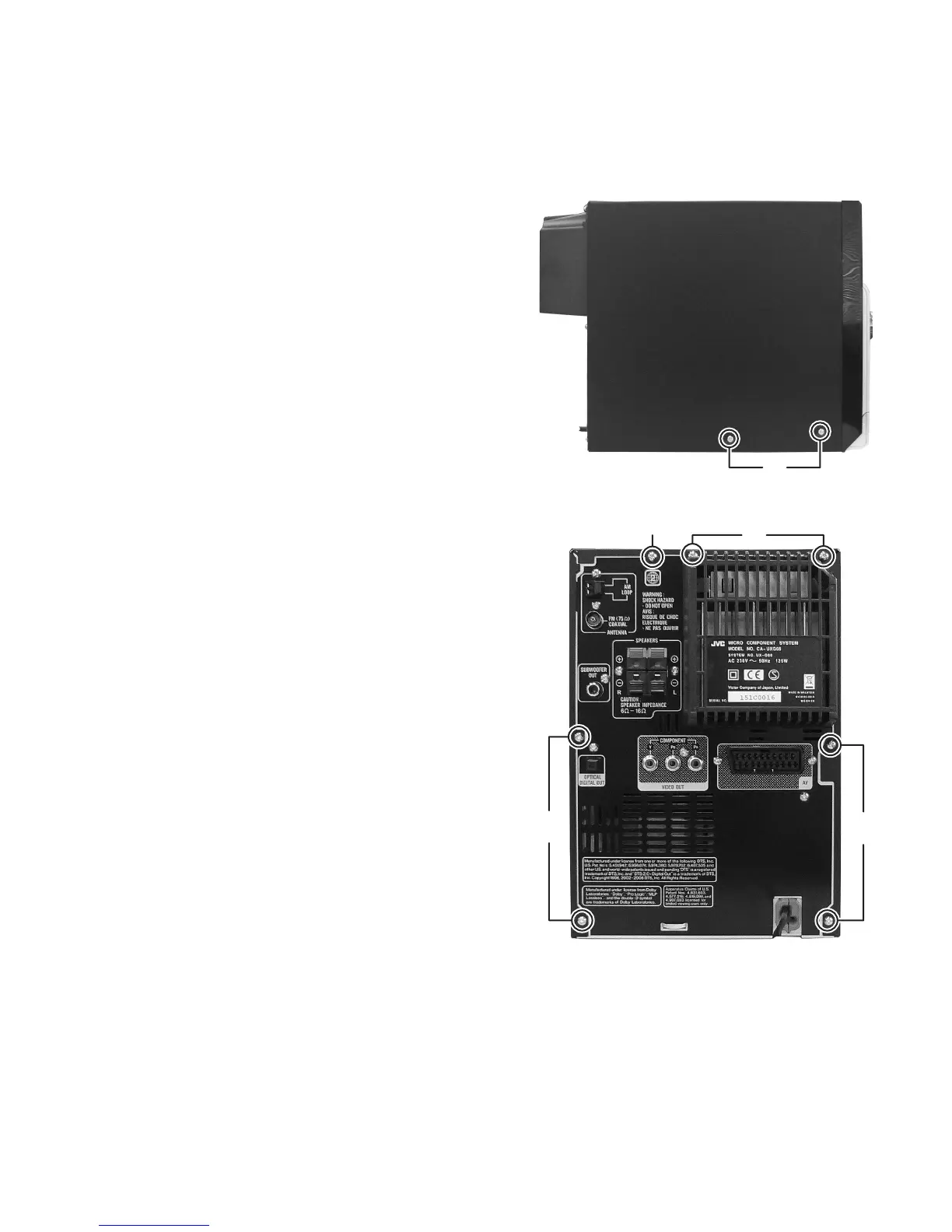

Fig.1
Fig.2
A
B
C
CC
