(No.MB595)1-13

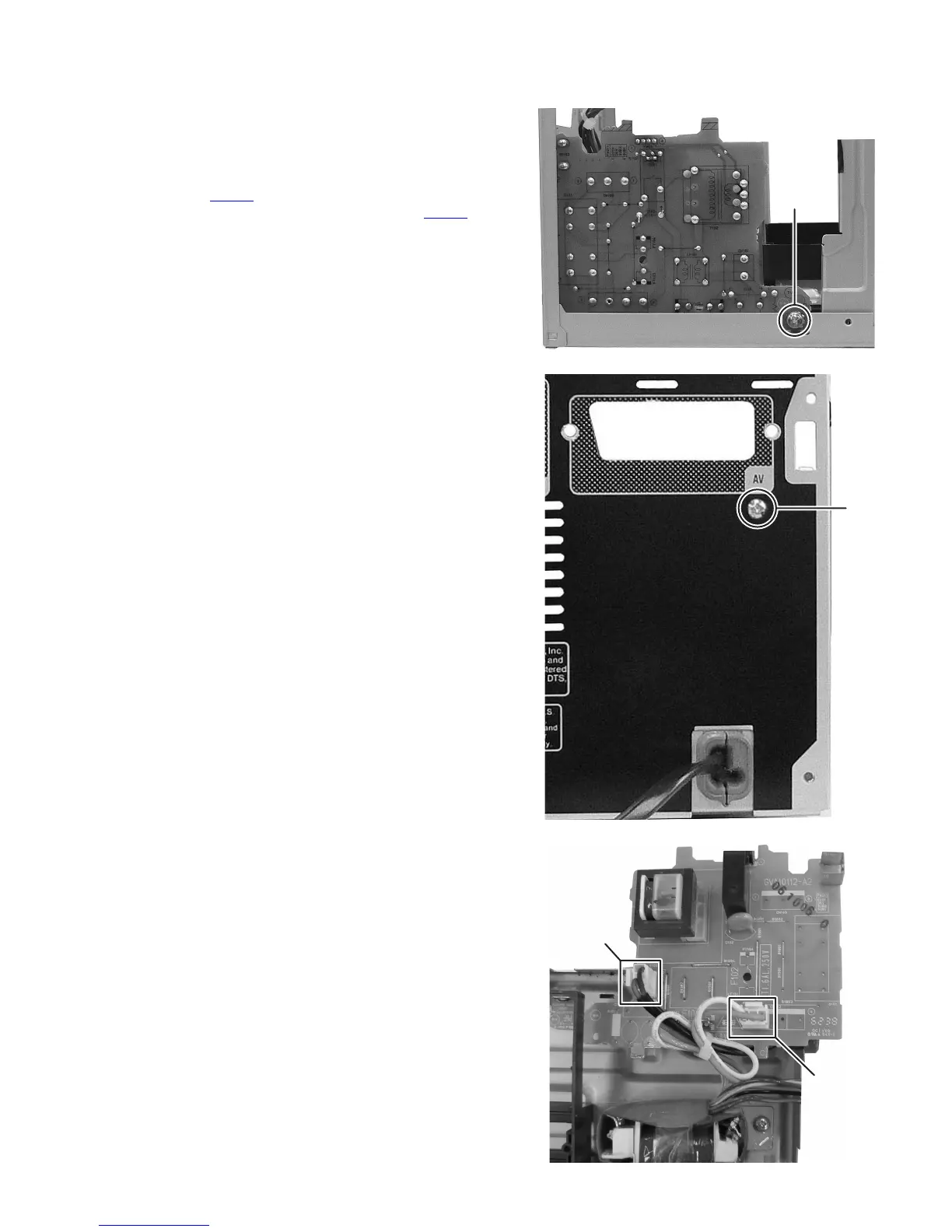

3.1.9 Removing the Power trans board assembly
(See Fig.18 to 20)
(1) Remove the one screw Q attaching the Power trans board
assembly. (See Fig.18)
(2) Remove the one screw R attaching the Power trans board
assembly. (See Fig.19)
(3) Disconnect the connector wire from Power cord connected
to connector CN101
and disconnect the connector wire
from Power transformer connected to connector CN102
of
the Power trans board assembly. (See Fig.20)
Fig.18
Fig.19
Fig.20
Q
R
CN101
CN102
To Next Page
