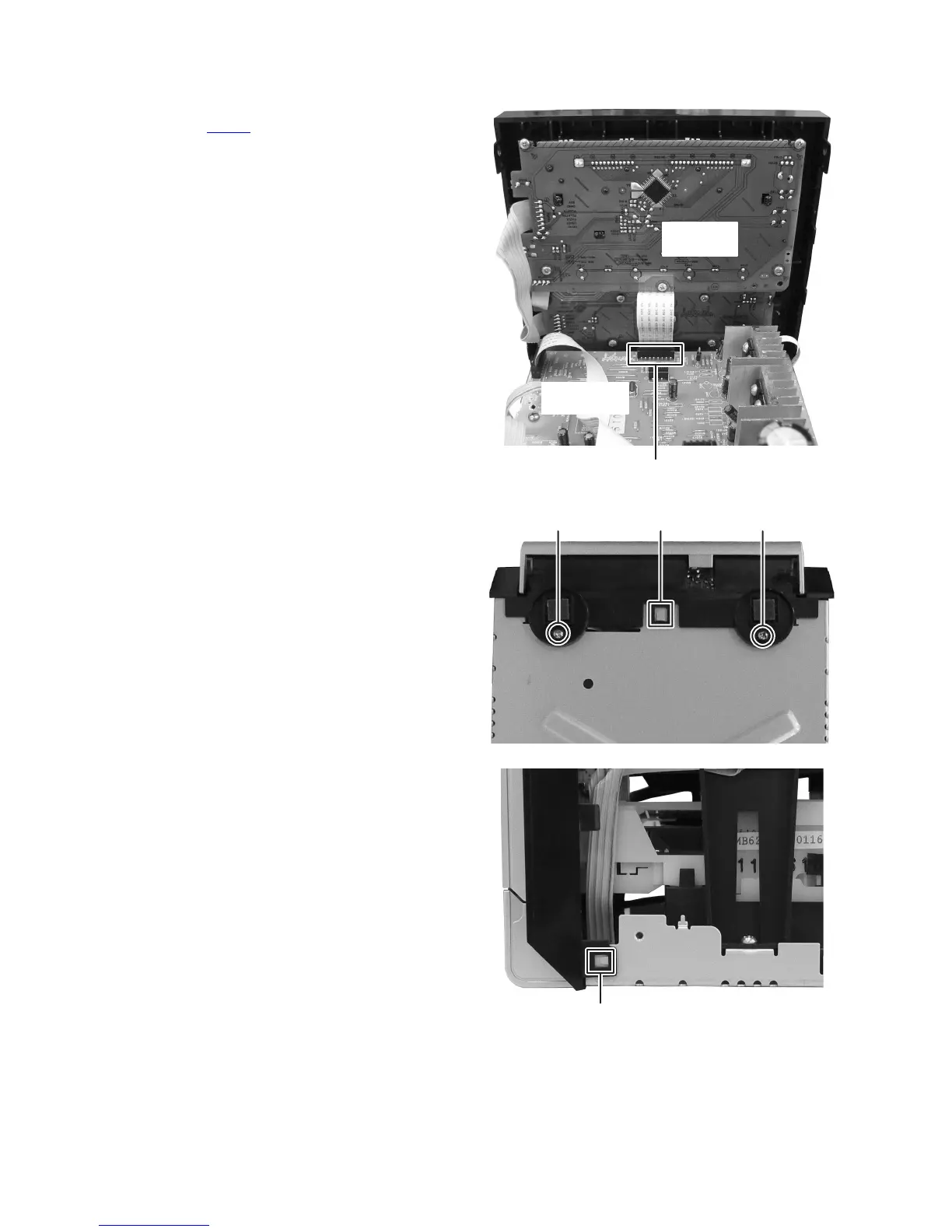

3.1.2 Removing the Front panel assembly
(See Fig.3 to 5)
(1) Disconnect the card wire from the FL board assembly con-
nected to connector CN205 of the Micon board assembly.
(See Fig.3)
(2) Remove the two screws D attaching the Front panel as-
sembly. (See Fig.4)
(3) Disengage the hook a (Fig.4) and hook b (Fig.5) from the
bottom chassis. (See Fig.4, 5)
Fig.3
Fig.4
Fig.5
CN205
FL board
assembly
Micon board
assembly
Hook a
DD
Hook b
