UX-J50
(No.22032)1-11

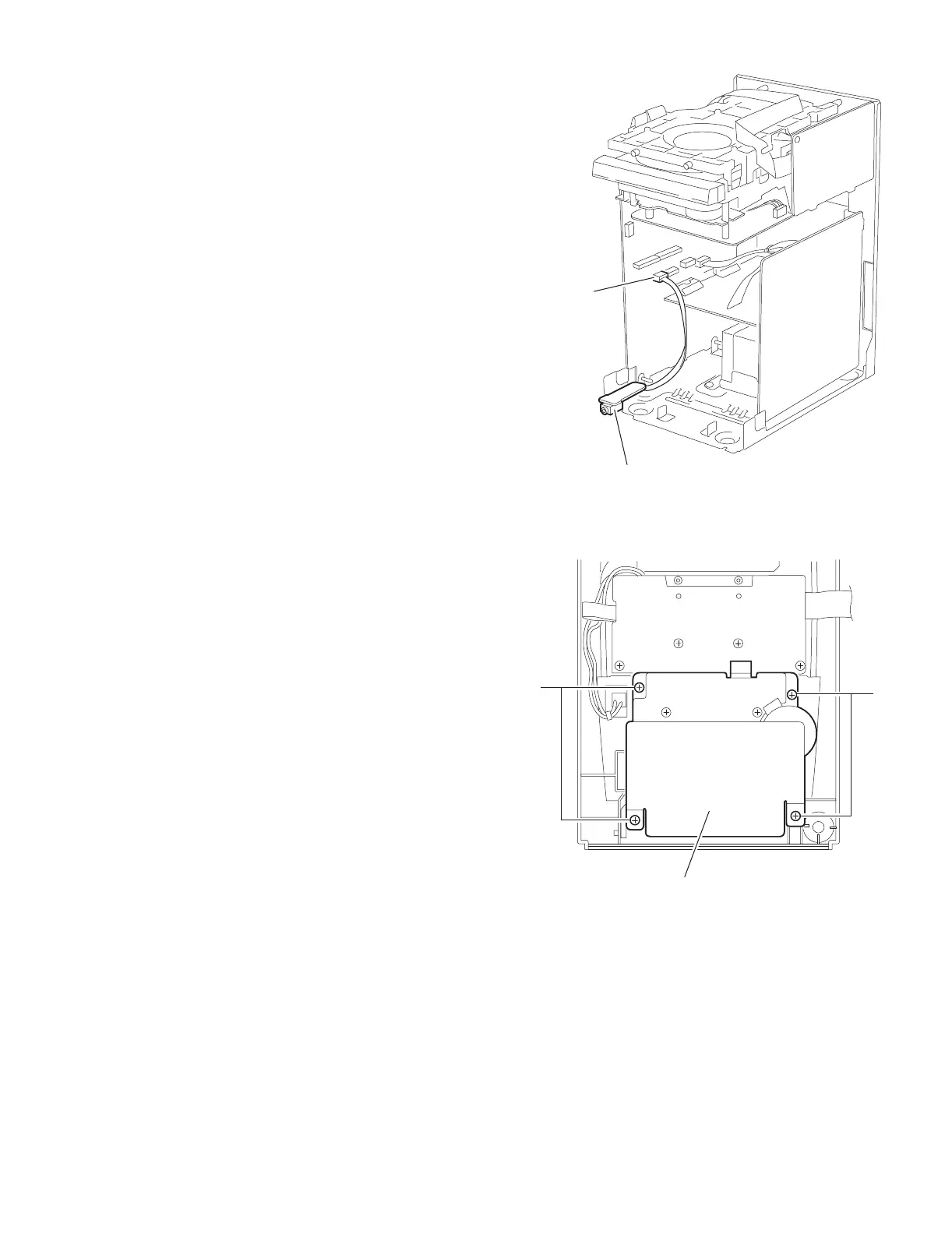

2.1.9 Removing the phones board
(See Fig.15)
• Prior to performing procedure, remove the metal cover and the
front panel assembly.
(1) Disconnect the flat wire from the connector CN913 on the
main board.
Fig.15
2.1.10 Removing the cassette mechanism assembly
(See Fig.16)
• Prior to performing the following procedure, remove the metal
cover and the front panel assembly.
(1) Remove the four screws L attaching the cassette mecha-
nism assembly.
Fig.16
Phones board
Mian board
CN913
L
L
Cassette mechanism assembly
To Next Page
