UX-L40R/UX-L30R
Prior to performing the following procedure, remove
the metal cover and the front panel assembly.
Disconnect connector CN913 on the main board.
1.
Removing the Phones board

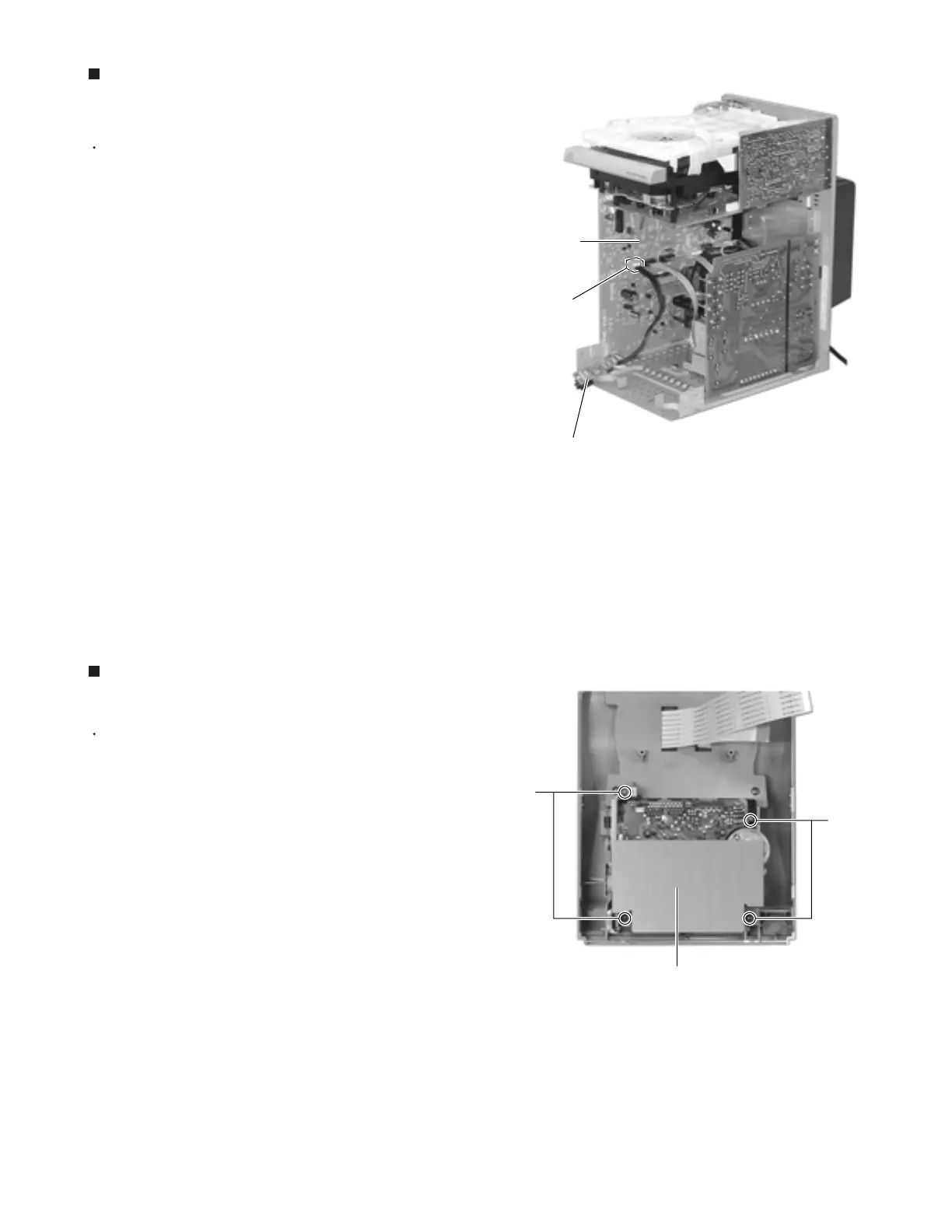

(See Fig.17)
Prior to performing the following procedure, remove
the metal cover and the front panel assembly.
Remove the four screws L retaining the cassette
mechanism assembly.
1.
Removing the Cassette mechanism
assembly (See Fig.18)
Main board
CN913
Phones board
Fig.17
Fig.18
Cassette mechanism
assembly
L
L
