1-14
UX-L40R/UX-L30R

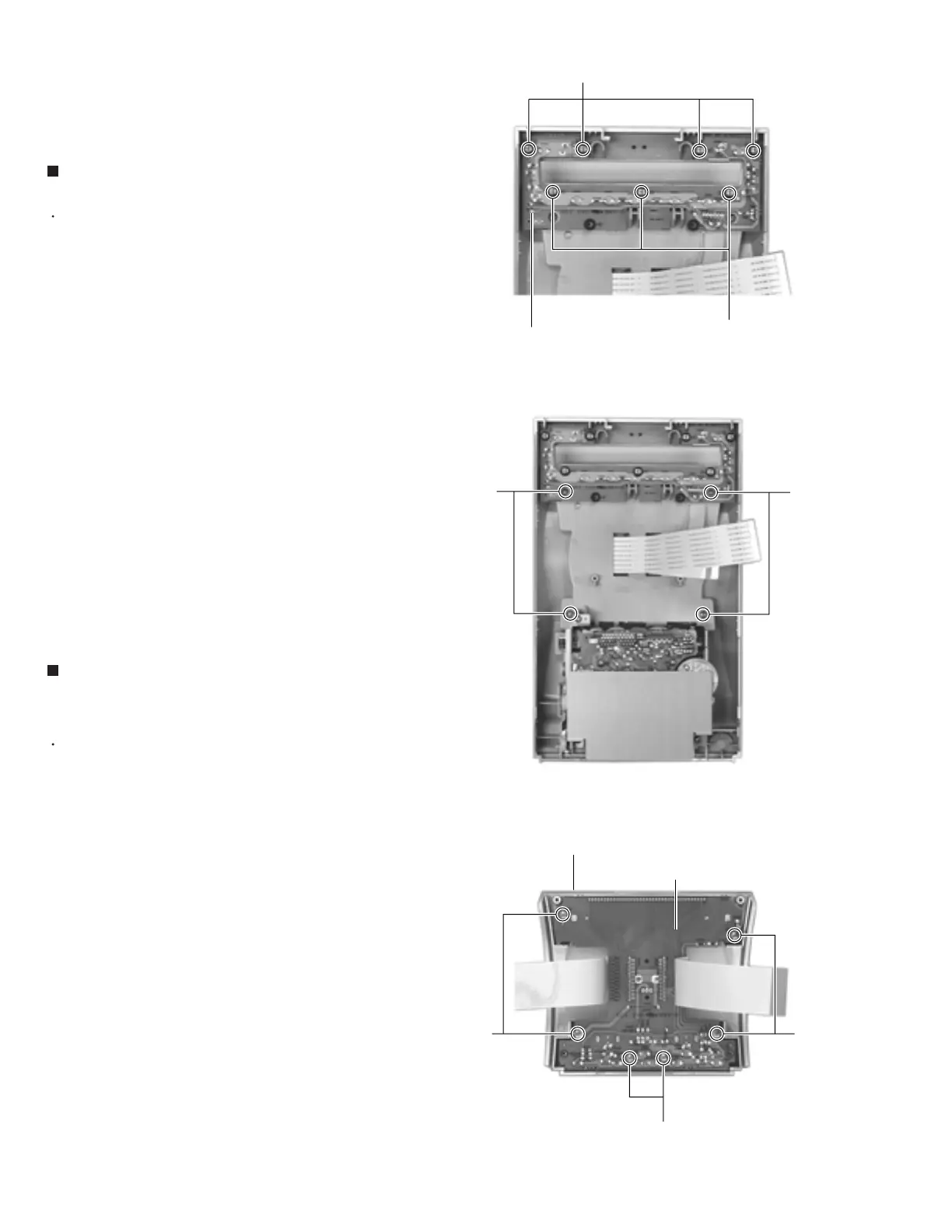

Prior to performing the following procedure, remove
the metal cover and the front panel assembly.
Remove the seven screws M to remove the control
board.
1.
Removing the Control board
(See Fig.19)
Prior to performing the following procedure, remove
the metal cover and the front panel assembly.
Remove the four screws N attaching the volume
panel on the front panel assembly.
Remove the six screws O attaching the volume
board on the volume panel, and remove the volume
board.
1.
2.
Removing the Volume board
(See Fig.20 and 21)
Control board
Fig.19
Fig.20
Fig.21
Volume board
Volume panel
M
M
N
N
O
O
O
To Next Page
