1-15
UX-L40R/UX-L30R
Remove the two screws A on the bottom of the
loading base.
Disconnect the card wire from connector CN606 on
the CD servo board. Turn over the CD servo board
as shown in Fig.2 and put aside temporarily.
Solder the shorting round on the pickup board in the
CD pickup section.
Disconnect the card wire from connector CN601 and
the wire from CN801 on the CD servo board.
1.
2.
3.
4.
<CD mechanism assembly section>

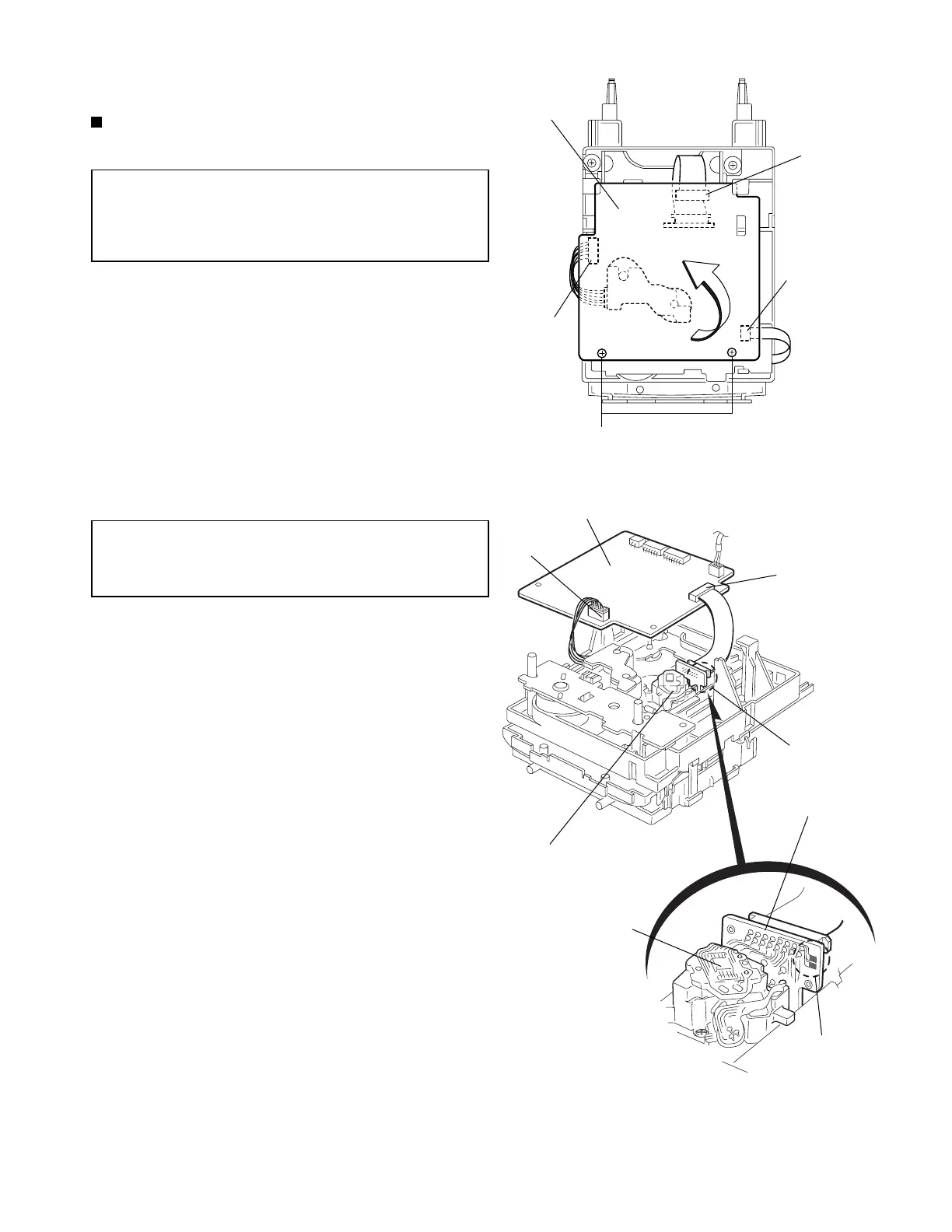

Removing the CD servo board
(See Fig.1, 2)
Solder the shorting round before disconnecting
the card wire extending from the pickup. If
you do not follow this instruction, the pickup
may be damaged.
CAUTION:
When reassembling, make sure to unsolder
the shorting round after connecting the card
wire from the pickup to the connector.
CAUTION:
Fig.1
Fig.2
CD servo board
CN801
A
CN606
CN601
CD servo board
CN601
CN801
CD pickup
CD pickup
Pickup board
Shorting round
Shorting round
(Soldering)
To Next Page
