UX-L40R/UX-L30R
Prior to performing the following procedure, remove
the clamper base / tray and the CD servo board.
Remove the screw D attaching the CD mechanism
assembly.
Move the CD mechanism assembly backward to
release the two joints b of the CD base on the front
side.
1.
2.

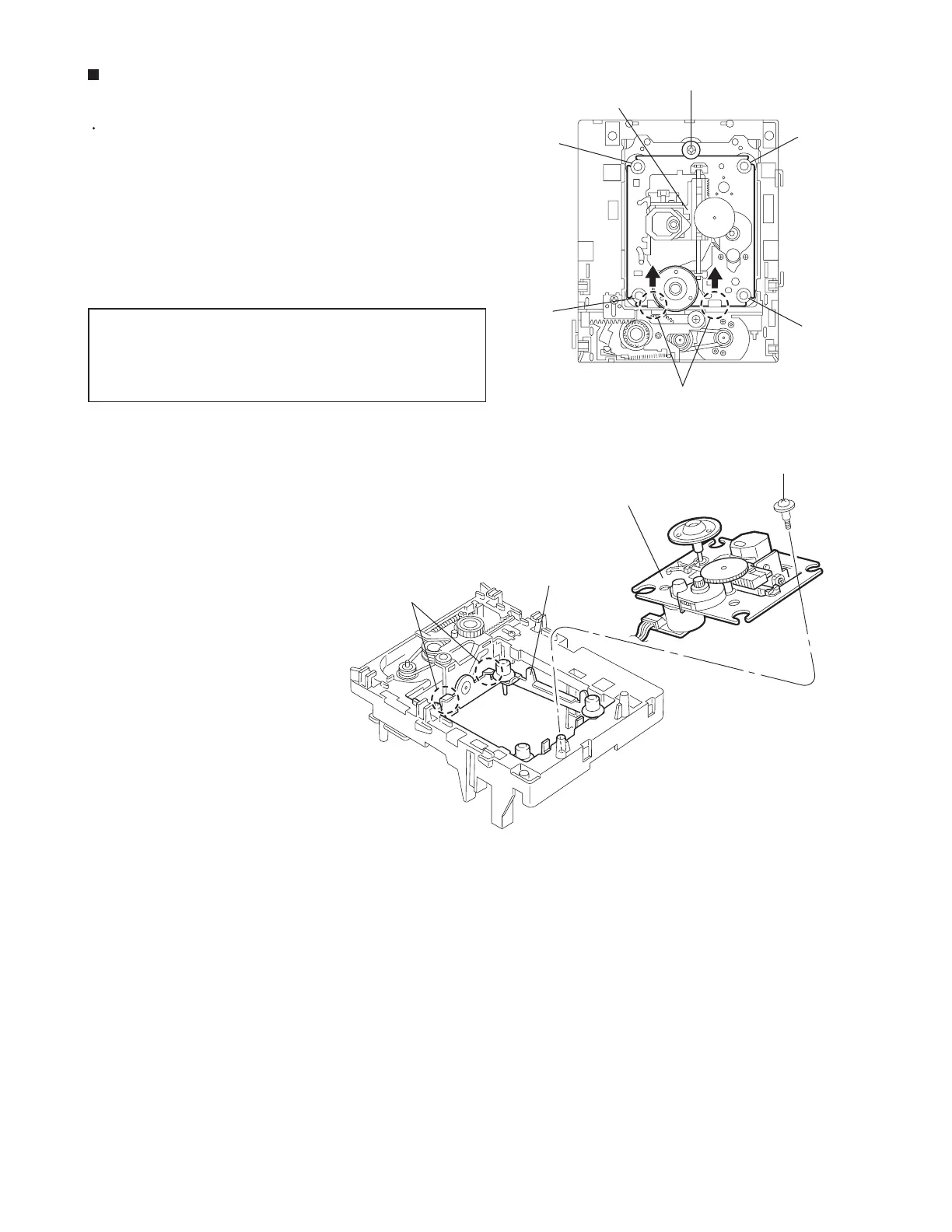

Removing the CD mechanism assembly
(See Fig.6, 7)
When reassembling, fit the front part of the
CD mechanism assembly to the two
chassis joints b and attach the four
dampers correctly.
CAUTION:
Fig.6
Fig.7
b
CD mechanism assembly
D
damper
damper
damper
damper
CD mechanism assembly
CD base
b
D
