UX-L40R/UX-L30R
Prior to performing the following procedure, remove
the clamper base / tray and the CD servo board.
From upside of the loading base, remove the belt
from the motor pulley.
Remove the two screws E attaching the loading
motor.
At the bottom of the body, release the three joints c
outward and pull out the loading motor board from
the shaft. The loading motor comes off with the
loading board.
Unsolder the two soldered points d on the loading
motor board and remove the loading motor.
1.
2.
3.
4.
Removing the loading motor / loading
motor board (See Fig.8, 9)
When removing the loading motor board
only, unsolder the two soldering d on the
loading motor and release the three joints c.
REFERENCE:

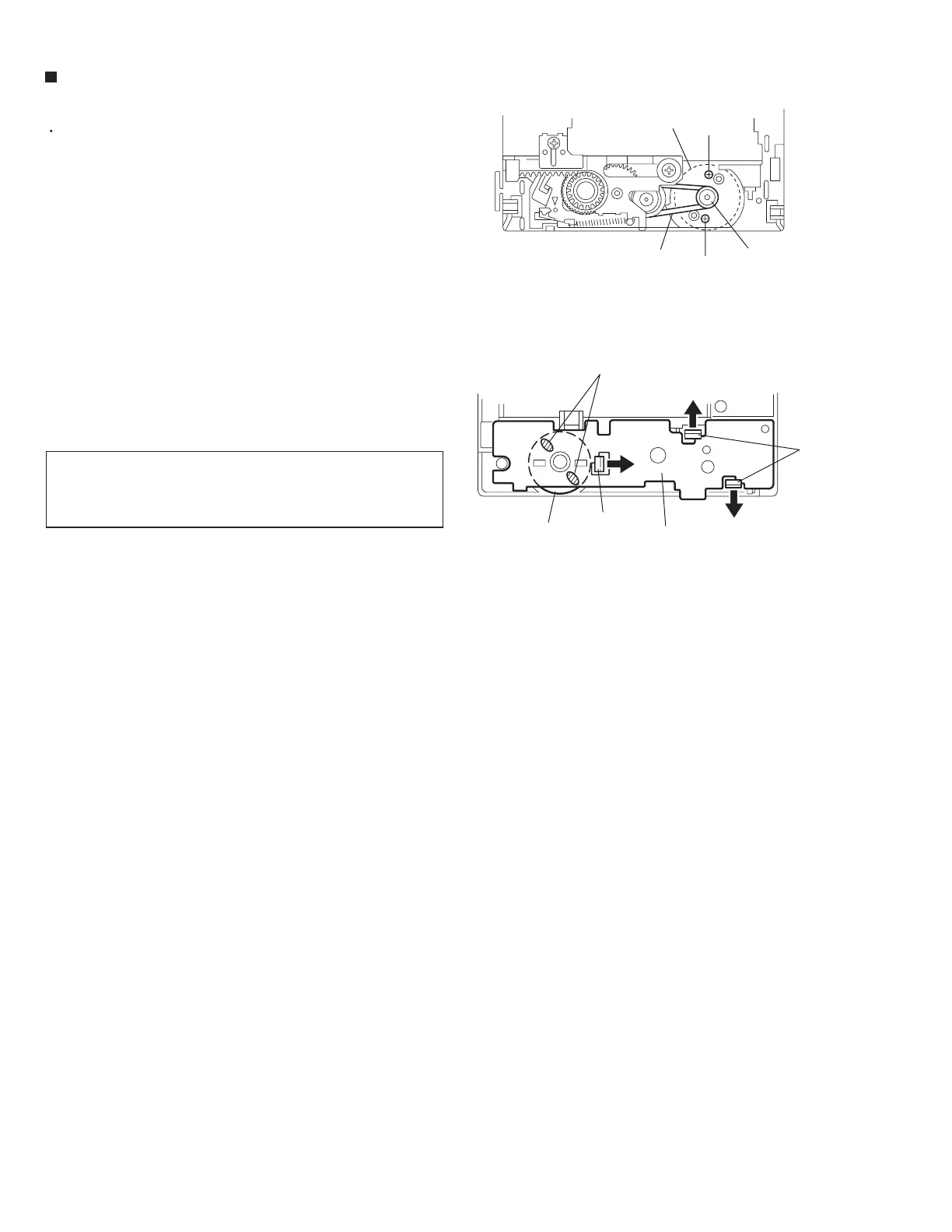

Fig.8
Fig.9
E
E
Loading motor
Motor pulley
Belt
Soldering d
c
c
Loading motor board
Loading motor
