3
● Attaching the speaker grille
Notes:
● The polarity of the two connected speakers will be the same if the
black speaker cords are connected to the · terminals. If the speak-
ers are connected with polarities reversed, stereo effect and tone will
be degraded.
● The speakers of this unit are not magnetically shielded. When they
are placed directly on or adjacent to a TV, the TV’s picture could be
distorted. Install the speakers more than 20 cm away from your TV.
● When connecting the speaker cord make sure that the wire core, not
the insulating cover, is connected to the speaker terminal. Otherwise,
sound cannot be heard.
● The speaker grilles can be removed.
● When removing.
1. Insert your fingers at the top and pull towards you.
2. Also pull the bottom towards you.

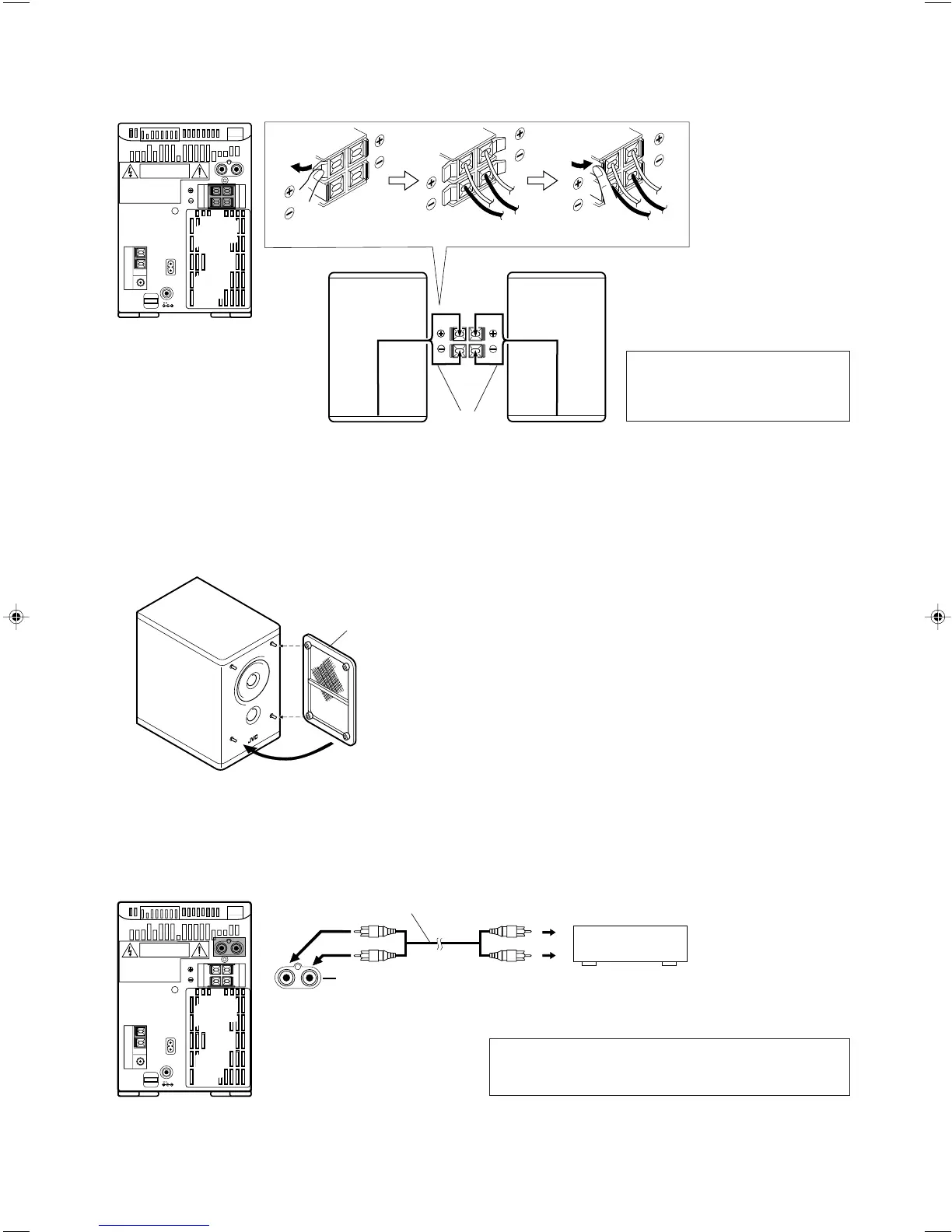

Speaker cord connection
● Connec the cord from the speaker on
the left to the (LEFT) terminal and the
cord from the speaker on the right to
the (RIGHT) terminals.
Match the fittings when
attaching the grille.
Speaker grille
ÓAC IN
R
L
DC IN
12V
—
1
23
RIGHT
LEFT
RIGHT
LEFT
Connect the black cord to the · terminal.
Right speaker (rear side)
Left speaker (rear side)
Speaker cord
Black
ÓAC IN
DC IN
12V
—
R
L
AUX
RIGHT
R
L
LEFT
Connection of external audio units
● Connection with a turntable (or MD player)
Note:
Regarding the connection with external units and their operations,
refer to the instructions provided with those units.
Pin-plug x 2
Pin-plug x 2
Signal cord (optional)
Turntable (with built-in equalizer) or MD
player (optional)
UX-T550(B)_body.pm6 12/12/00, 3:11 PM3
To Next Page
