JVC XV-M565BK Service Manual

XV-M565BK/M567GD
1-10
Remove the four screws I attaching the bracket on
the back of the front panel assembly. Remove the
bracket.
Unsolder the terminal FW802 of the harness
connecting the FL indicator board and the volume
board.
Remove the eight screws J and the FL indicator
board.
1.
2.
3.

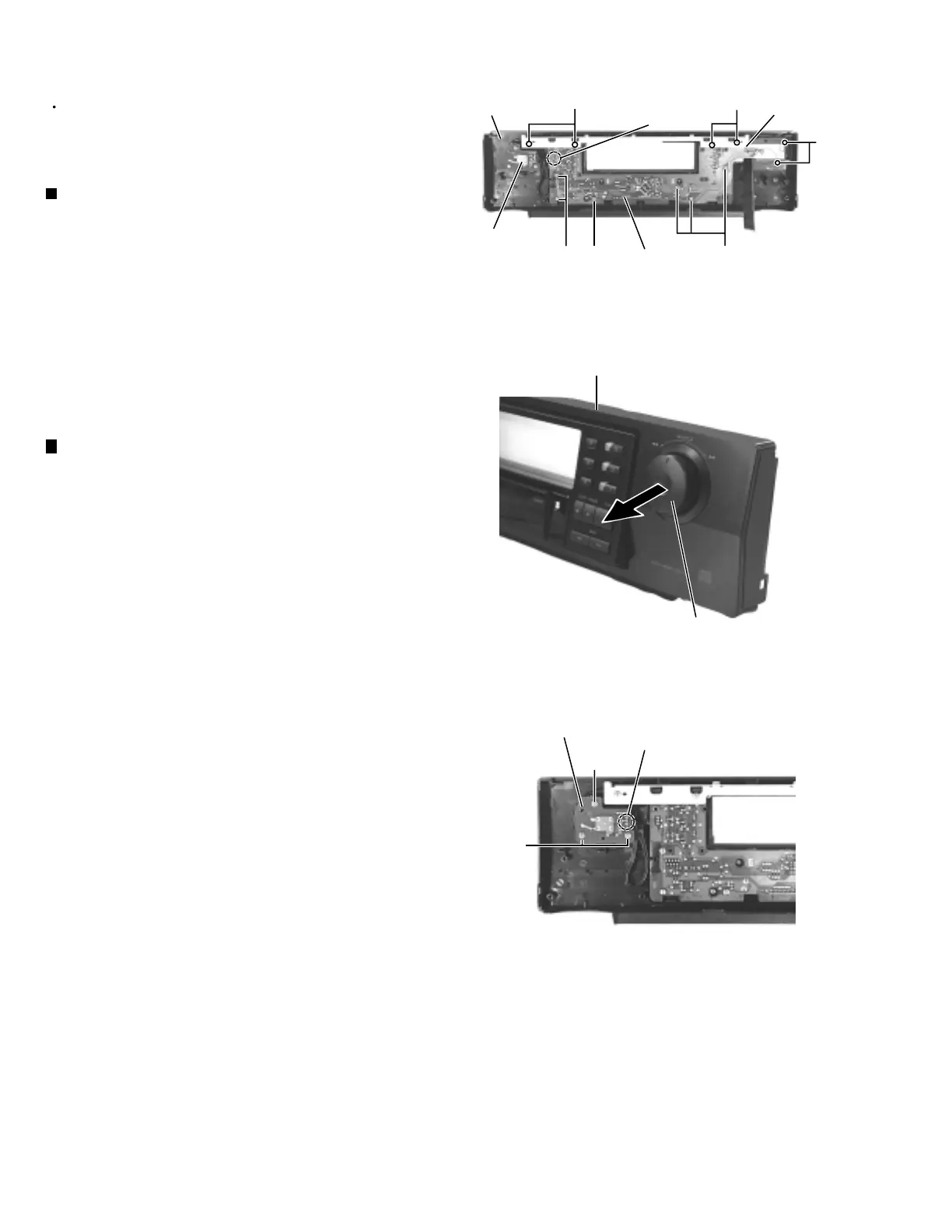

Prior to performing the following procedure, remove
the top cover and the front panel assembly.
Removing the Front board (See Fig.15)
Pull out the shuttle knob on the front panel
assembly.
Unsolder the terminal FW802 on the back of the
front panel assembly (The harness of FW802 is
connecting the volume board and the FL indicator
board).
Remove the three screws K and the volume board.
1.
2.
3.
Removing the Volume board
(See Fig.16 and 17)
< Front panel assembly >
Fig.15
Fig.16
Fig.17
FL indicator
board
Volume board
Front panel
assembly
Bracket
FW802
J
J
J
J
I
I
Front panel assembly
Shuttle knob
FW802
Volume board
K
K
