XV-M565BK/M567GD
1-18
Make sure to solder the flexible harness.(In case of
replacement with a new product, unsolder the
flexible harness after performing the following
procedure.)
Disconnect the flexible harness from connector
CN12 on the connection board.
The rack cover is attached to the feed drive shaft.
Remove the two screws A attaching the connection
board and stand the connection board. Remove the
rack cover.
Remove the screw B attaching the pickup shaft
holder. Remove the pickup shaft holder by releasing
1.
2.
3.
4.
Pull out the shaft in the direction of the arrow and
slightly lift it with the pickup unit. Then, remove the
pickup unit while pulling the rack a in the direction of
the arrow.
5.

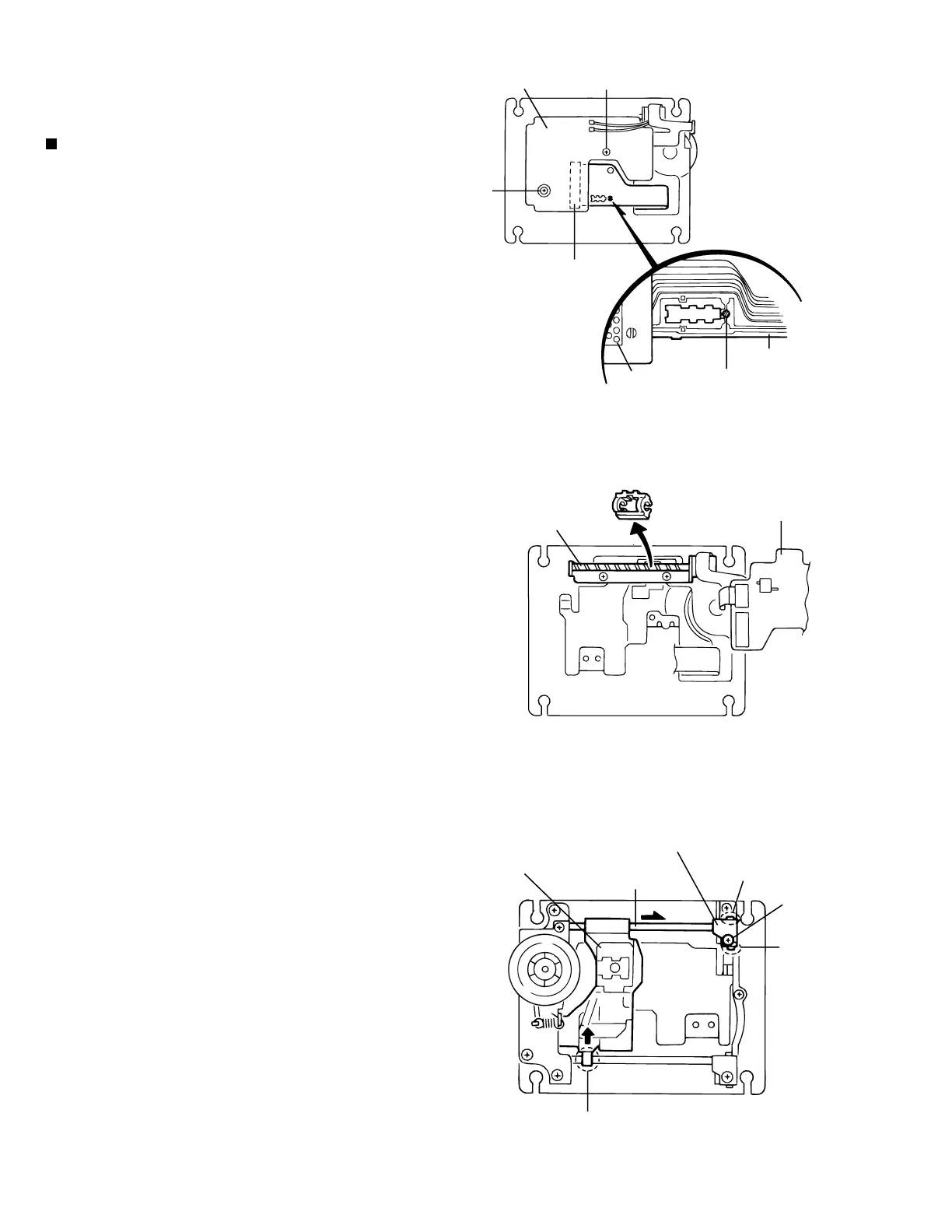

Removing the pickup unit
(See Fig.1 to 3)
<Traverse mechanism section>
Be careful not to lose the inside spring.
ATTENTION:
Fig.1
Fig.2
Fig.3
A
A
Connection board
Connection board
Rack cover
Pickup unit
Shaft
Tab
Tab
B
Pickup shaft holder
CN12
CN12
Soldering
(Short circuit round)
Flexible harness
Feed drive shaft
Rack a
To Next Page
