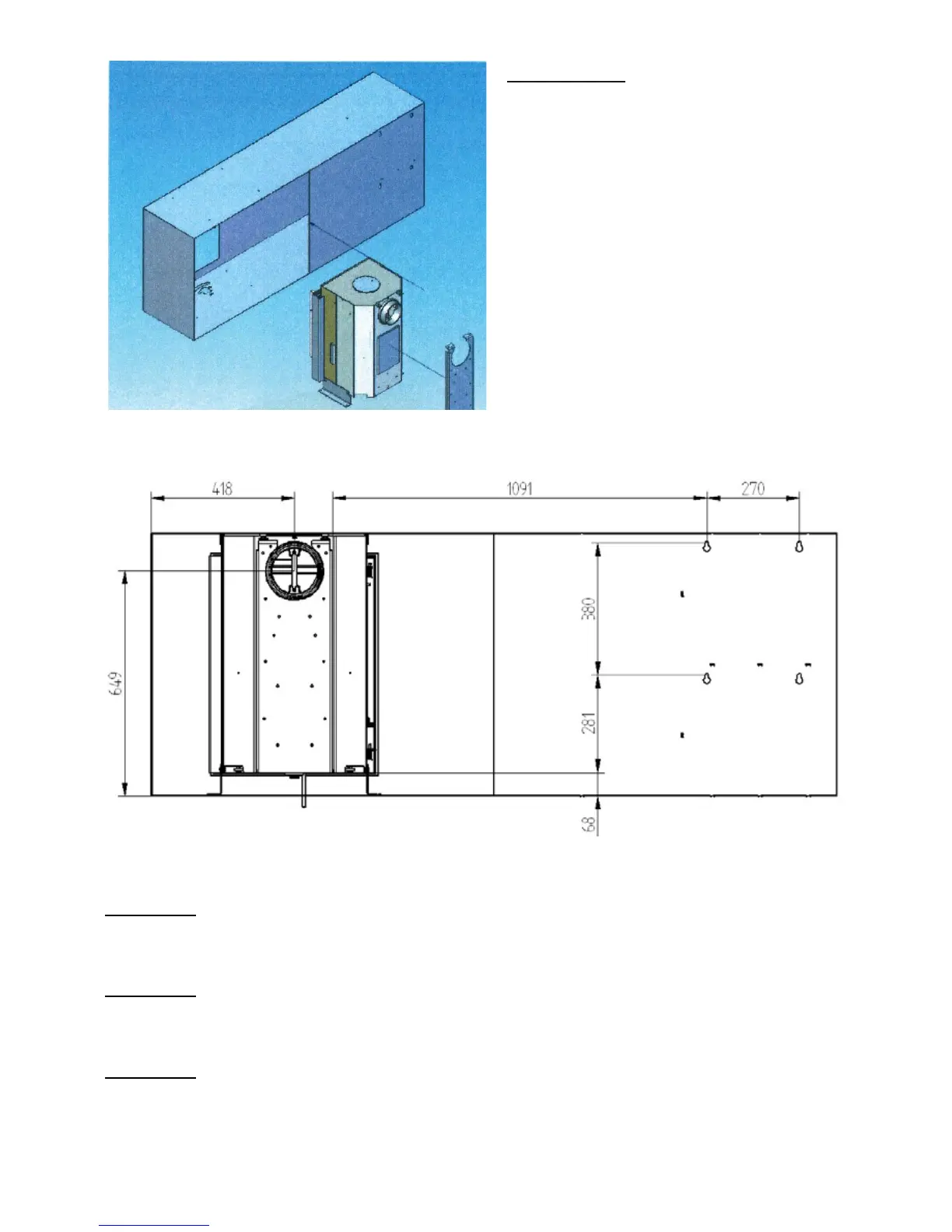

Cubic W200 :
The stove must be prepared for either
top- or rear outlet. Standard construction
is rear outlet.
Fasten the furnishing on the wall.
Place the stove on the lower hooks on
the furnishing, tip up the stove and
fasten it.
Assemble the stove by pushing the steel
cladding in and over the stove.
Fasten the cladding to the wall by using
4 screws - screw holes are located in
the fire box. Repeat the procedure for
the bottom plate.
Back side of stove
Cubic 109:
The stove is available with top- or rear outlet. Standard construction is top outlet. Adjusting
is possible by using the 4 adjusting screws in the wood compartment.
Cubic 166:
The stove is available with top- or rear outlet. Standard construction is top outlet. Adjusting
is possible by using the 4 adjusting screws in the wood compartment.
Cubic 215:
The stove is available with top- or rear outlet. Standard construction is top outlet. Adjusting
is possible by using the 4 adjusting screws in the wood compartment.
