K-Rain BL-KR V1.0 Quick Installation Guide

STEP 3: WIRING

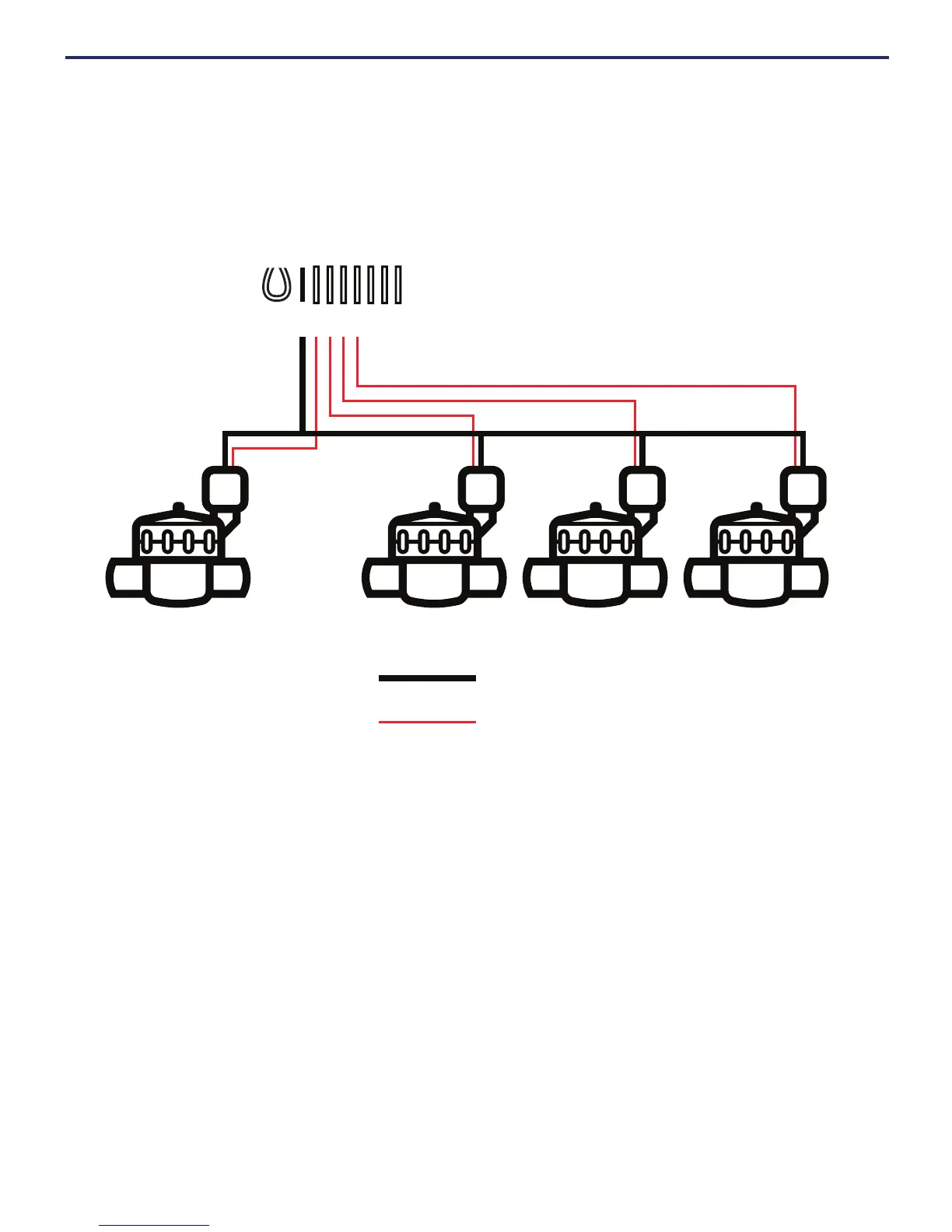

1. Connect the BL-KR to the solenoids as described below.
Use 9V DC latching solenoid coils only.
2. (Option) If you want to install a rain sensor, cut and strip the
yellow wire of the BL-KR and connect it to the sensor.
STEP 4: PROGRAMMING
If you need more information about the BL-KR and K-Rain BL app,
please visit our website and review supplementary documentation at:
www.krain.com/bl-kr-battery-powered-bluetooth-irrigation-controller.
SSCP 123456
Black
Red

K-Rain BL-KR V1.0 Specifications

General

Brand	K-Rain
Model	BL-KR V1.0
Category	Controller
Language	English
