K-Rain BL-KR V1.0 User Manual

CONNECTING SOLENOIDS/ACCESSORIES:
1. Mount the unit in/on the valve box.
2. Use only 9V solenoid pulse coils (K-Rain Part Number P3008114)
NOTE: Some DC latching 9 V coils come from the manufacturer already latched.
Please follow the start-up procedure for DC latching solenoids on page 09.
3. Wiring a rain sensor: Cut the yellow wire loop and install the rain sensor.
Use Normally closed rain/freeze sensors.

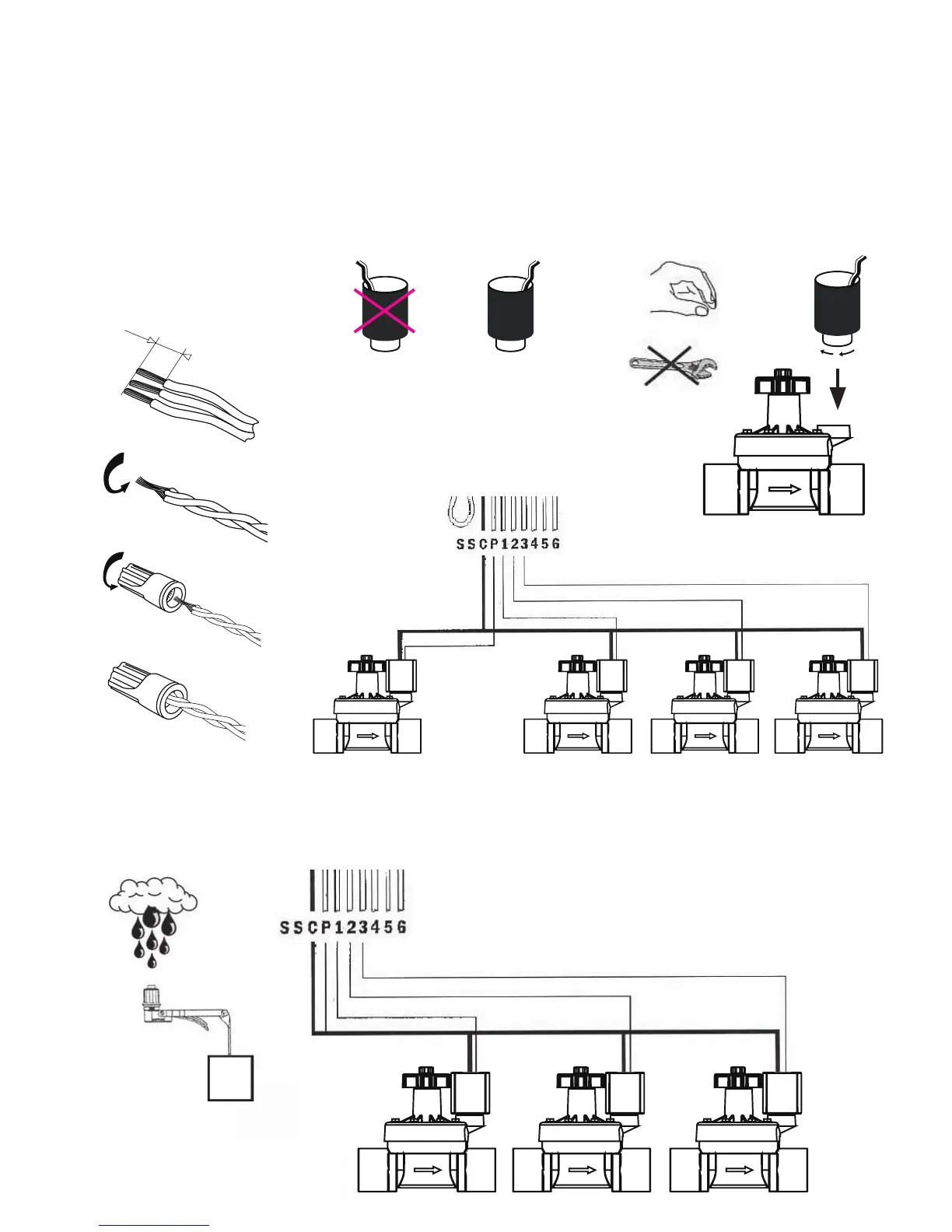

Wiring Solenoid
9V Solenoid Pulse24 Vac
13 mm
1/2"
13 mm
1/2"
13 mm
1/2"
13 mm
1/2"
03
