MT5000-0200-1 Rev f (10-2010) DCN0528 13
Different mounting configurations will affect each probe type in different ways. A coupler
mounted on a nozzle whose length is greater than its width will have a reduced signal ca-
pacity that must be accounted for by the MT5000. In order to help maximize the range abil-
ity of the MT5000, the MOUNTING TYPE corresponding to the installation must be entered.
The MOUNTING TYPE should fall into one of the categories listed below. (Figure 11)
To set the MOUNTING TYPE:
1. Review the installation and determine which class of mounting configuration the unit
will be installed in.
2. Press and hold the SELECT button for 2 seconds.
3. Scroll UP or DOWN to the required MOUNTING TYPE.
4. Press the SELECT button to set the new MOUNTING TYPE.
5. Scroll DOWN to END MENU.
6. Pressing the SELECT button now will return you to the main screen
MOUNTING TYPE
Plate
LVL: XX.XX in XX.XX mA
4.3.4. MOUNTING TYPE

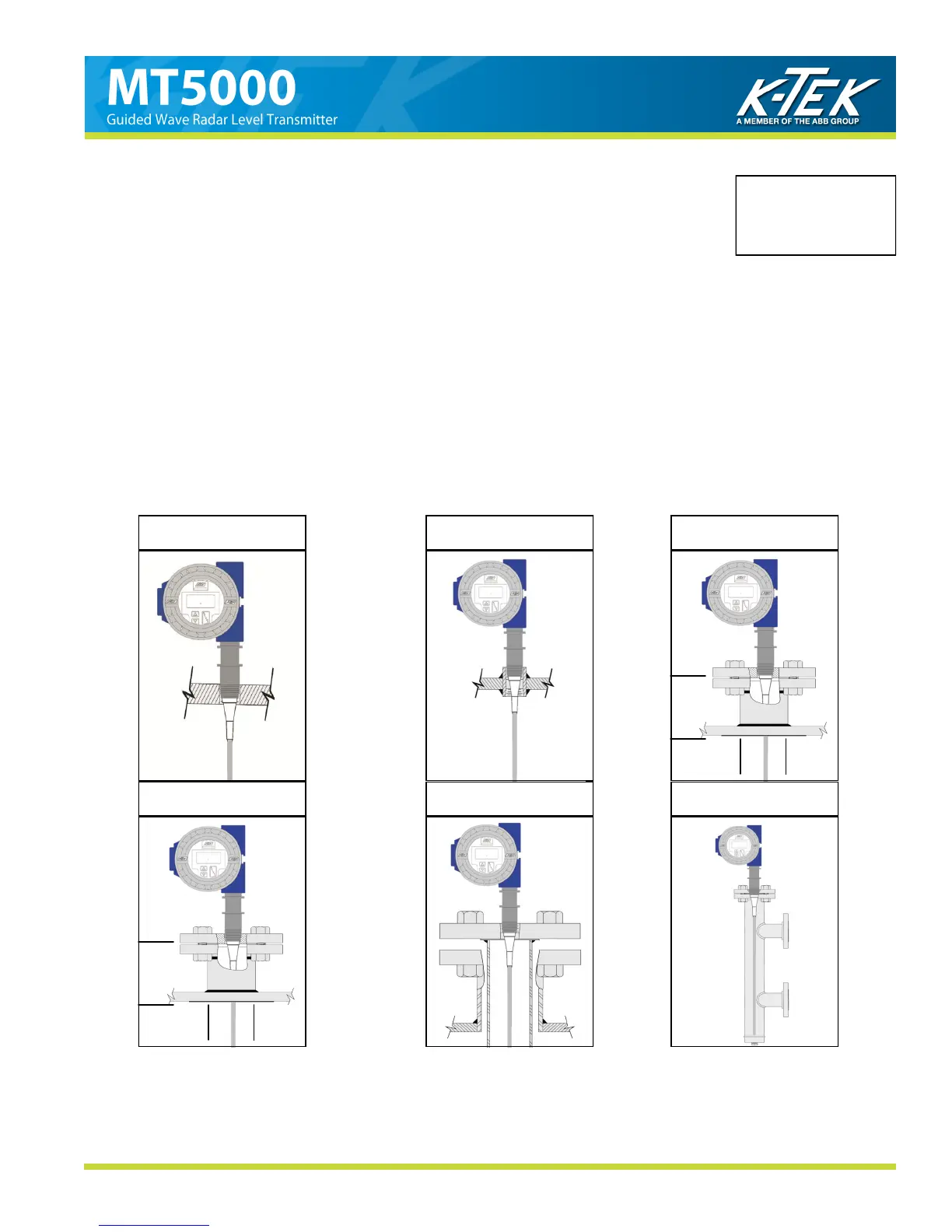

Figure 11
Plate
Coupling / Plate Nozzle/Flange H>S
Nozzle/Flange H<S Stilling Well Ext. Chamber
H
S
H
S
