Kaba C-lever User Manual

Installation Quick Guide
Kaba c-lever k2evo704yy-2011-08 3
EN

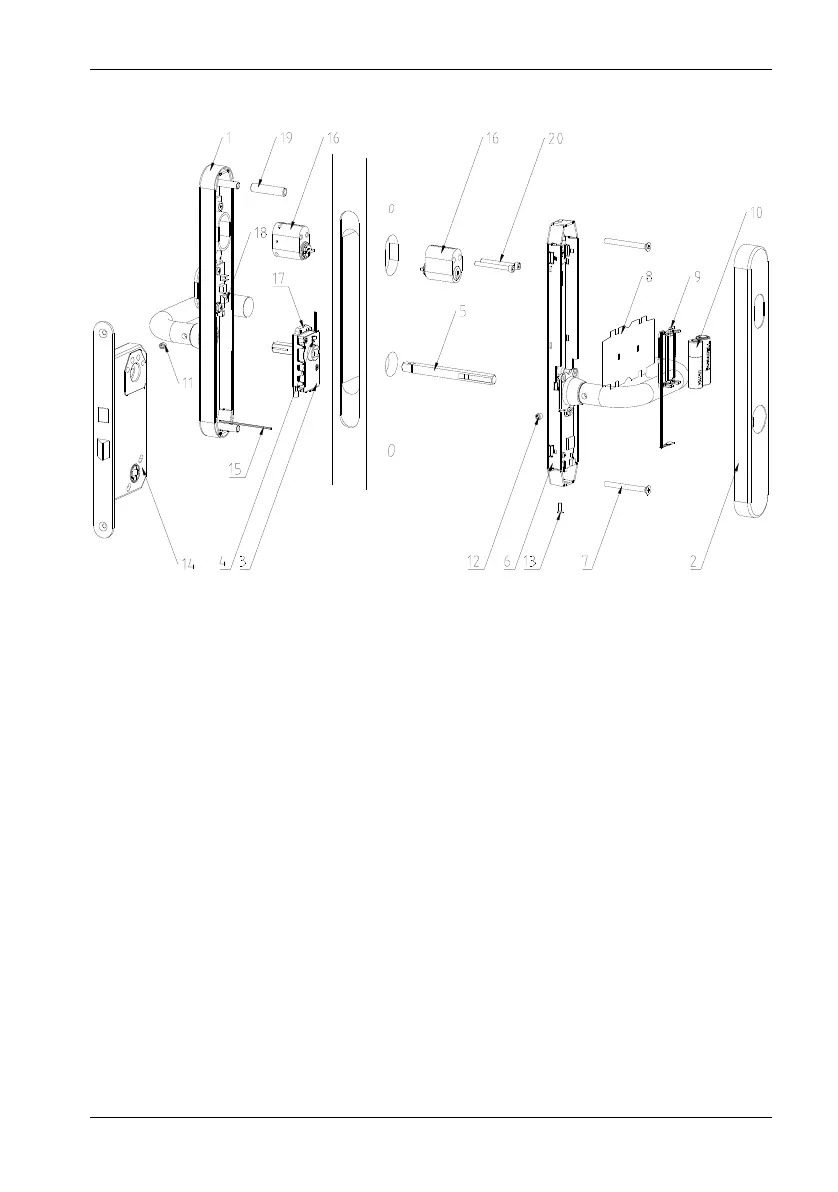

1. Outside shield with antenna
2. Inside shield
3. Coupling unit
4. Fixing screw for spindle
5. Spindle
6. Inside plate with e-module
7. Fixing screw M5 x 50mm (2 pcs.)
8. Battery protection foil
9. Battery BCP
10. Batteries Type AA Lithium (2 pcs.)
11. M6 fixing screw for handle (outside)
12. M6 fixing screw for handle (inside)
13. M3 fixing screw for inside shield
14. Mortise lock (not included)
15. Antenna cord
16. Locking cylinder (not included)
17. Direction indicator
18. Socket for coupling unite
19. Centering sleeve
20. Cylinder fixing screws (not included)

Kaba C-lever Specifications

General

Brand	Kaba
Model	C-lever
Category	Door locks
Language	English
