Section 2 - 1
Product Information
3418-00-3000 3418-00-3001 3418-00-3002 3418-00-3003
Corbin Russwin Adams Rite Standard Best and
DL4000 Corbin Russwin
length: 1.080" cloverleaf
3418-00-3004 3418-00-3008 3418-00-3009 3418-00-3010
Sargent and Yale AR 4070 Schlage L Falcon
length: 1.010"
6-pin 140

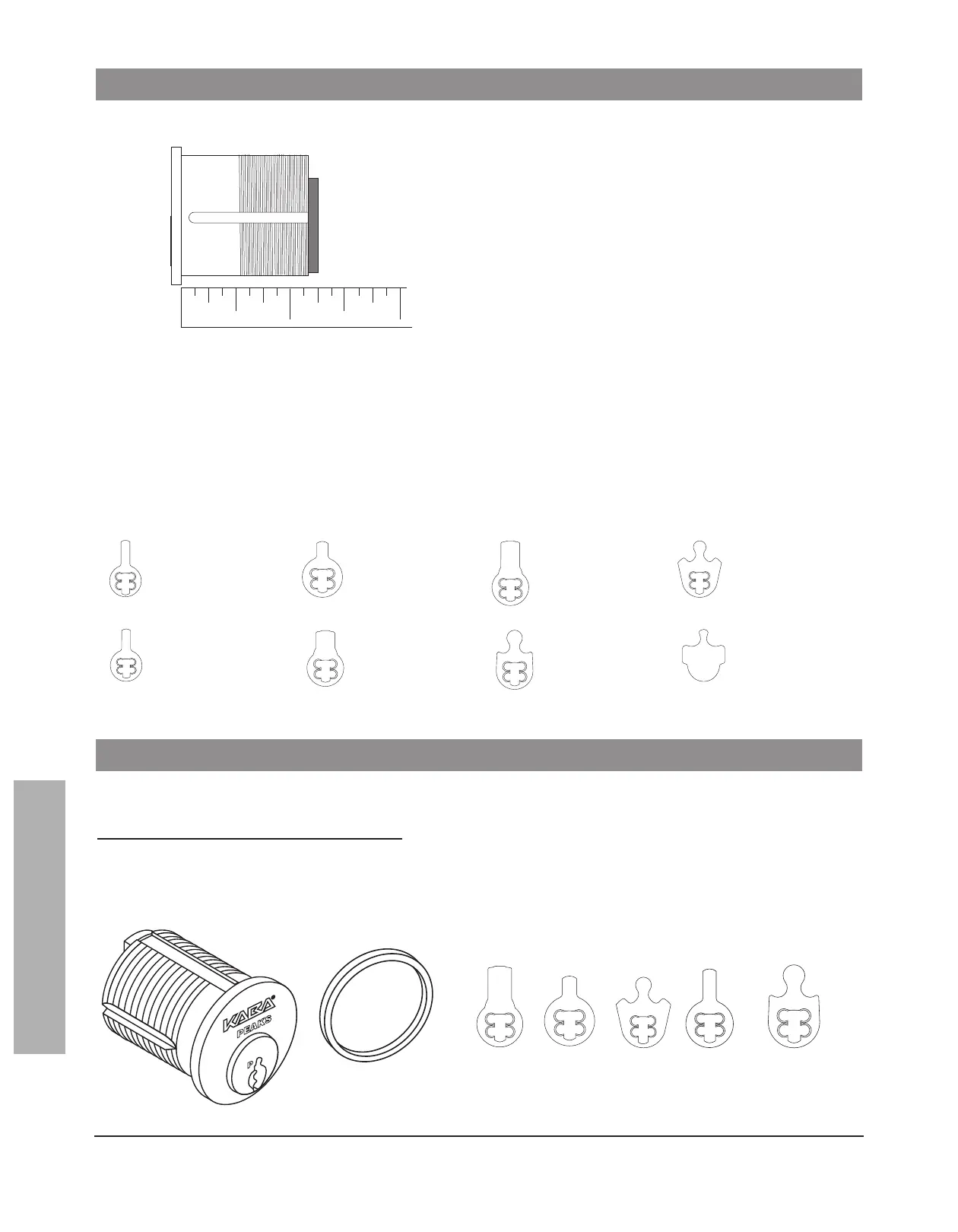

Cylinder length
measured from
u
nder the head
to back of the
cam. Example
shown is 1
1
/4"
c
ylinder.
Conventional mortise cylinders are
available in 1
1
/8" and 1
1
/4" lengths.
Longer length applications can normally
be handled by using small format inter-
changeable core housings.
Collars are not included. Please order
collars separately.
Cams for conventional mortise cylinders are attached with 4701-98-4118 Loctite
®
coated screws.
One 3418-00-2000 cam cover is placed over the cam before screws are installed.
If cams are changed in the field, use new screws and tighten them firmly.
Please specify cam when ordering. Contact Kaba about other cam requirements. See bottom of this page for
mortise cylinder kit.
Cams shown below are not for small format interchangeable core housings.
12
Conventional Mortise Cylinders—8401/3401 Series
mortise cylinder kit, 140 6-pin 11/8"
8401-xx-1038 uncombinated
8401-xx-1238 factory combinated
3401-xx-1038 uncombinated
3401-xx-1238 factory combinated
xx = Finish
Kit includes: standard, Adams Rite, cloverleaf,
Sargent/Yale and Schlage L cams,
5
/32" spacer,
spare Loctite
®
coated screws and a cam cover.
Mortise Cylinder Kits
