Kaba Peaks Preferred

Section 3 - 4
Key Cutting & Pinning
P
eaks products may be pinned to the A2 or A4 system. The patent pin stack is built into the face of all small
format interchangeable cores. In large format interchangeable cores and conventional cylinders, the patent pins
are installed when combinating. Certain products have a large diameter plug and require longer bottom pins. All
products use the same top pins.

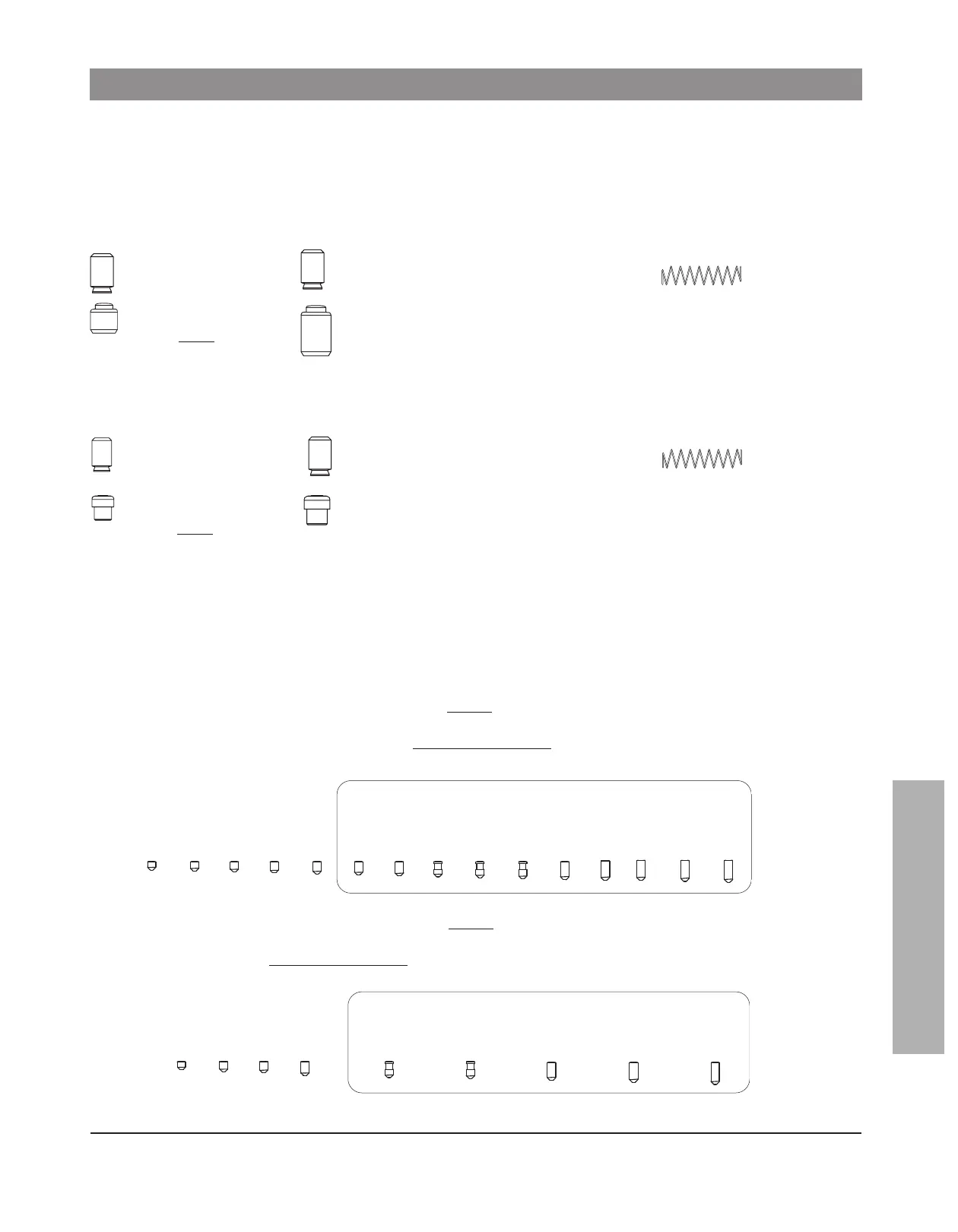

Peaks Preferred Patent pins
Spring
3425-00-3002
patent top pin
(for conventionals & KIK)
8800-00-3004
patent bottom pin for all
products except
those with
large diameter plugs
8144-00-3004
patent bottom pin for the Universal 8400-xx-1099, the
8400-xx-1095 key-In-knob, the 8144 Corbin Russwin,
the 8544 Sargent and the 8444 Schlage large format
interchangeable cores.
3800-00-4010
stainless steel for all Peaks products
except 8444
6440-00-4010
3800-00-3005
patent top pin
(all cores other than conventional & KIK)
0J 1J 2JS 3JS 4JS 5J 6J 7J 8J 9J
0A 1A 2A 3A 4A 5A 6A 7AS 8AS 9AS
J series bottom pins are for the large diameter plugs only.
0J thru 4JS are the same as 5A thru 9AS, respectively.
Tumbler pins
Peaks pins are crowned for smooth operation and long cylinder life. Bottom pins are nickel silver. Spool pins are
used to increase pick and impression resistance. Bottom pins are .003" shorter than after market replacement
pins. Non-original pins will not work properly in Kaba products and their use voids product warranty.
A2 system: Use A series bottom pins for everything except the 8400-xx-1095 and 3400-xx-1095 key-in-knob, the
Universal 8400-xx-1099 and 3400-xx-1099 key-in-knob cylinder, the 8144/6140 Corbin Russwin, and 8544/6540
Sargent large format interchangeable core with large diameter plugs. J series bottom pins are required for prod-
ucts with large diameter plugs. Use B series master/top pins for all products.
A4 system: Use E series bottom pins for everything except
the 8400-xx-1095 and 3400-xx-1095 key-in-knob, the
Universal 8400-xx-1099 and 3400-xx-1099 key-in-knob cylinder and the 8144/6140 Corbin Russwin large format
interchangeable core with large diameter plugs. K series bottom pins are required for products with large diameter
plugs. Use F series master/top pins for all products.
1KS 2KS 3K 4K 5K
0E 1E 2E 3E 4ES 5ES
K series bottom pins are for the large diameter plug only.
1K and 2K are the same as 4ES and 5ES, respectively.
Components for Pinning
Peaks Classic Patent pins
Spring
3425-00-3002
patent top pin
(for conventionals & KIK)
3800-00-3004
patent bottom pin for all
products except
those with
large diameter plugs
6140-00-3004
patent bottom pin for the Universal 3400-xx-1099, the
3400-xx-1095 key-In-knob, the 6140 Corbin Russwin,
the 6540 Sargent and the 6440 Schlage large format
interchangeable core
3800-00-4010
stainless steel for all Peaks products
except 6440
6440-00-4010
3800-00-3005
patent top pin
(all cores other than conventionals & KIK)
