PK3166_09-07 • RAC 3.5 / RAC 4 / RAC 4XT INSERT READER INSTALLATION GUIDE
4

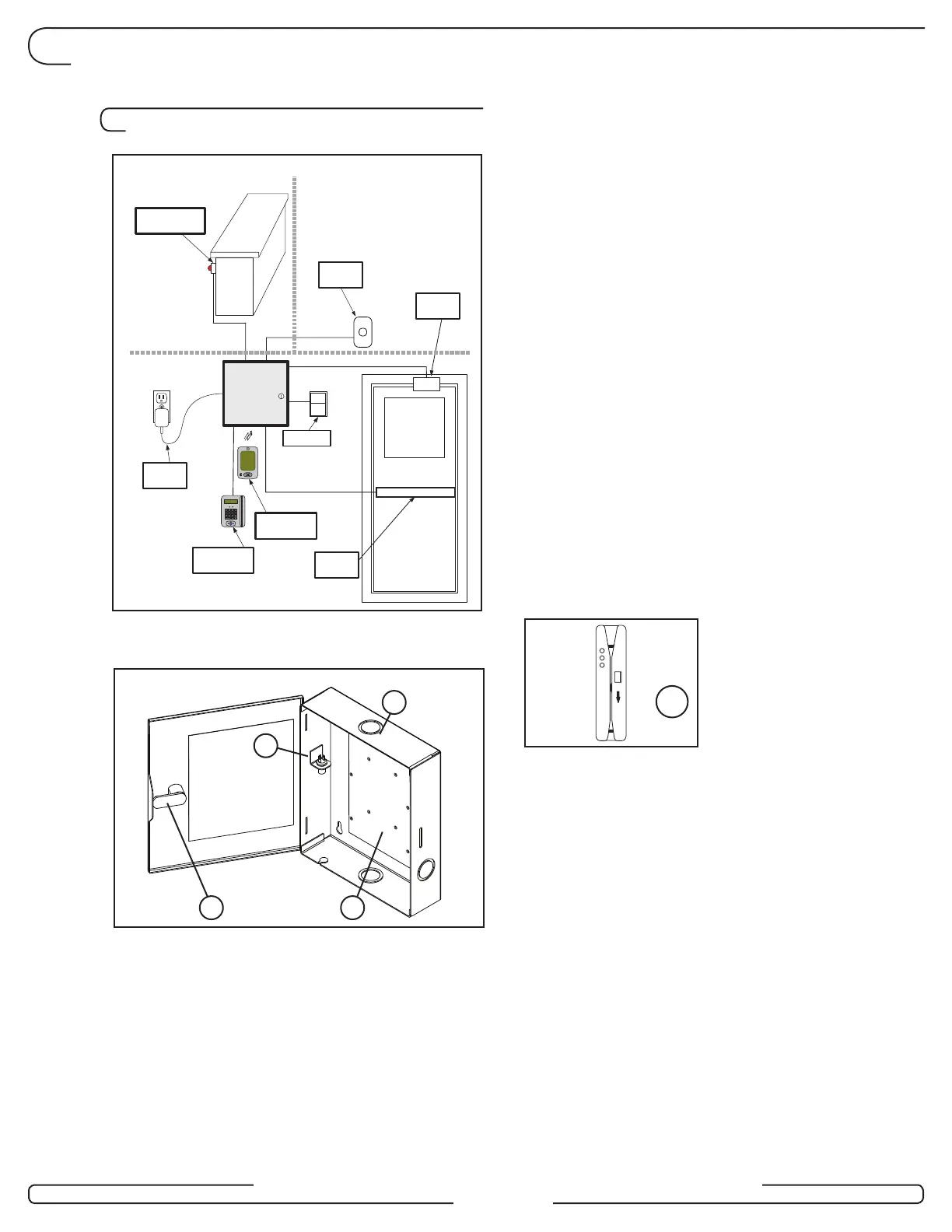

3.0 Installation Guide
3.1 Prepare mounting panel
Using the drilling template DT-512152, align the paper
template at the desired location, mark the location of the holes
to be drilled and the rectangular cut out to be made.
CAUTION: Be sure to follow all relevant building
standards, codes or regulations and any stipulated
safety procedures. Do all appropriate research before
commencing work. Kaba Ilco is not responsible for
damage or malfunction due to incorrect installation
resulting from non-compliance to any building codes,
standards or regulations or non-conformance to any
stipulated safety procedures.
!
3.2 Cut out hole for insert reader
Using the appropriate tool cut out the rectangular hole for
the insert reader. Using the 5/32" (4mm) drill bit, drill the
2 holes needed in the mounting panel for the insert reader
attachment.
CAUTION: Make sure to remove all burrs and sharp edges
after cutting, drilling or tapping operations.
!
3.3 Connect wiring to reader
3.3.1 Connect cables to reader, see fig.1
3.3.2 Cable Extension
If the 15ft. cable supplied with the reader is not long enough,
use gauge 24 (or bigger) shielded cable with 4 pairs to make
an extension (up to 500 ft.). Make sure that all pairs on the
cable are connected
3.3.3 Connect wires
Depending on the RAC system, follow the appropriate sub
section listed below.
3.3.3.1 For RAC 3.5:
Refer to RAC 3.5 Installation guide PK2918. Connect the cable
to JP3 as per table 1.
3.3.3.2 For RAC 4XT and RAC 4:
Refer to Installation guide PK3191 for RAC 4XT or PK3197 for
RAC 4.
NOTE: RAC 4XT supports single (Ingress) or dual (Ingress
& Egress) readers, while the RAC 4 supports only a single
(Ingress) reader configuration.
For Ingress reader:
Connect the cable to J1, J2 and J3, as per table 1.
For Egress reader:
Connect the cable to J12, J13 and J14, as per table 1.
Signal Name Insert Reader Extension for RAC 3.5 RAC 4/4XT RAC 4XT
Wire Color Cable Length over Ingress Reader Ingress Reader Egress Reader
15ft. Cable Color Connection Connection Connection
+12V Purple Orange/White JP3-1 J1-3 J14-3
GND Purple/Black White/Orange JP3-2 J1-2 J14-2
DATA+ White Black/White JP3-7 J2-1 J13-1
DATA- White/Black White/Black JP3-8 J2-2 J13-2
GREEN_LED+ Red Red/White JP3-3 J3-1 J12-1
GREEN_LED- Red/Black White/Red JP3-4 J3-2 J12-2
RED_LED+ Yellow Yellow/White JP3-5 J3-3 J12-3
RED_LED- Yellow/Black White/Yellow JP3-6 J3-4 J12-4
Not Used (Shield) Black Sheild - - -
Not Used) - Brown/White - - -
Not Used - White/Brown - - -
Table 1
Fig. 1
