No. Grid
LED

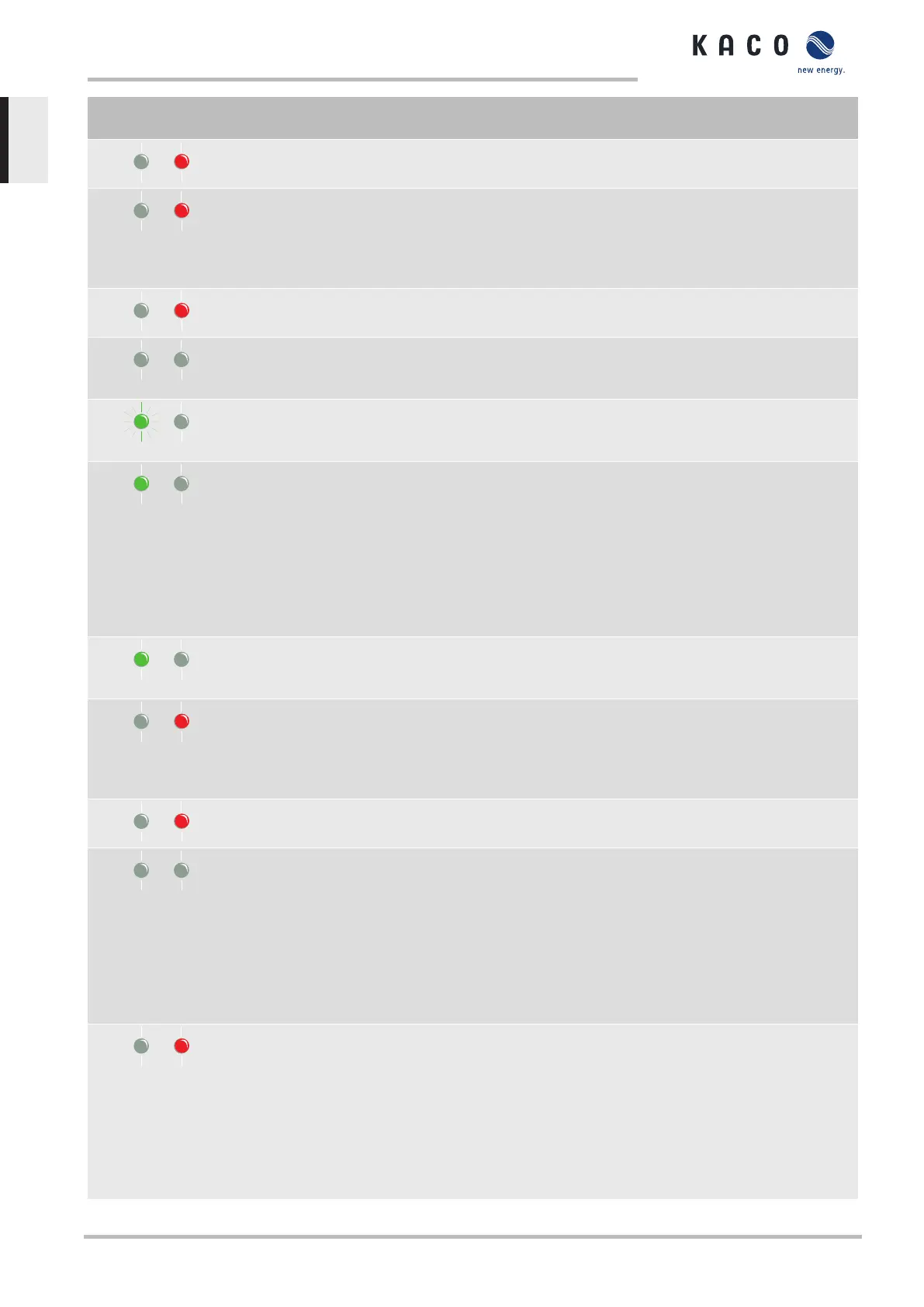

LED Display Status description Action Pers
.
57 Waiting for reactivation Waiting time of the device following an error. - -
58 Control board overtemp. The internal temperature is too high. The
device shuts down to avoid hardware damage.
This error can only occur at very high ambient
temperatures (>60°C)!
The temperature in-
side the device was
too high. The device
shuts down to avoid
hardware damage.
E
59 Self test error A fault occurred during a self-test. Contact a qualified
electrician!
E
60 Generator voltage too high
Battery voltage too high
The inverter does not begin feeding into the
grid until the PV voltage falls below a specified
value.
- -
61 External limit x% The grid operator has activated the external
PowerControl limit. The inverter limits the
power.
- -
63 Frequency-dependent
power change
The feed-in power is changed linearly over a
certain frequency value. This requirement is
country-dependent. Required response. No in-
dication on display (behaves in the same way
as normal feed-in mode status 4, therefore no
flashing "Feed-in" LED) Can be viewed in ser-
vice log files and via proLOG/portal. When cer-
tain country settings are activated, the fre-
quency-dependent power change is activated.
Normative require-
ment
-
64 Output current limitation Output current limiting: The AC current is lim-
ited once the specified maximum value has
been reached.
- -
70 Fan 1 error The fan is malfunctioning. Replace defective
fan. See Mainten-
ance and
troubleshooting
chapter.
E
73 Standalone grid err. Grid failure: Islanding Shutdown as there is no
longer a public grid.
- -
75 Self test in progress No fault message, only a status. Pre-charging
of DC link in progress. Entire self-test sequence
documented in S7.
If, despite adequate
sunlight conditions,
the device remains
in this status per-
manently, then
there is probably a
fault -> arrange for
a service to be car-
ried out
-
78 Resid. current shutdown
(AFI)
AFI shutdown: The measured residual current
has exceeded the max. permissible residual
current for the device series.
If the fault occurs, in
particular in the
event of precipita-
tion, or high air hu-
midity, this indic-
ates an increased
discharge current ->
check cabling in the
system
B
11 | Maintenance and troubleshooting Manual
KACO blueplanet 3.0 TL3 KACO blueplanet 4.0 TL3 KACO blueplanet 5.0 TL3 KACO blueplanet 6.5 TL3 KACO
blueplanet 7.5 TL3 KACO blueplanet 8.6 TL3 KACO blueplanet 9.0 TL3 KACO blueplanet 10.0 TL3
Page 80
EN
