1.9.4 Range To Fault Mode (Optional Module)
The Range to Fault mode o󰀨ers an added analysis tool and is designed to determine the physical distance to the PIM fault
from the iPA test set. Details on the operation of the RTF test set is given in the RTF operating manual:
R99-0068-RTF_A-SERIES_OPERATING_MANUAL_RevB.doc

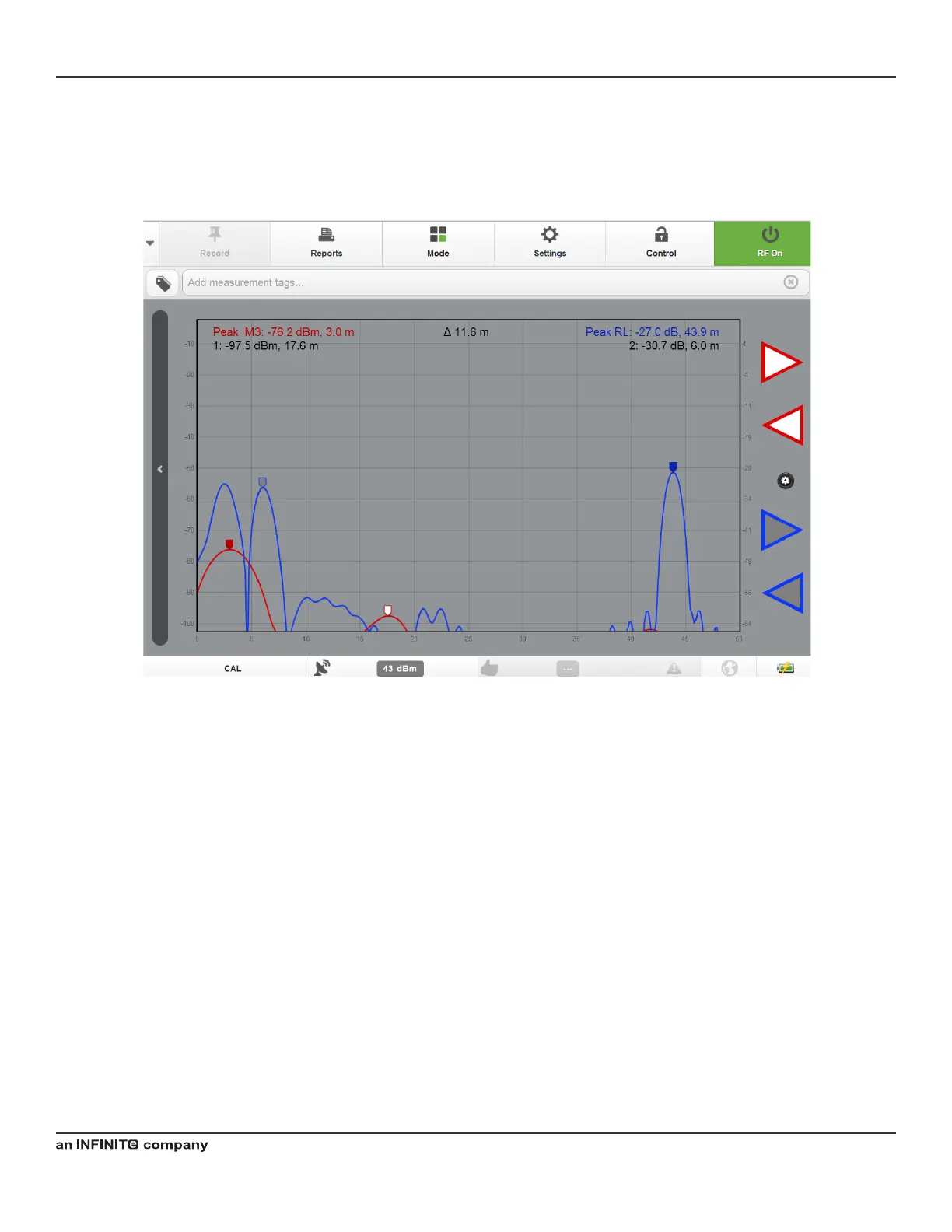

Figure 38 Range to Fault (RTF) Measurement Window
