6.9.2 Option H20
Mounting the machine on an air receiver

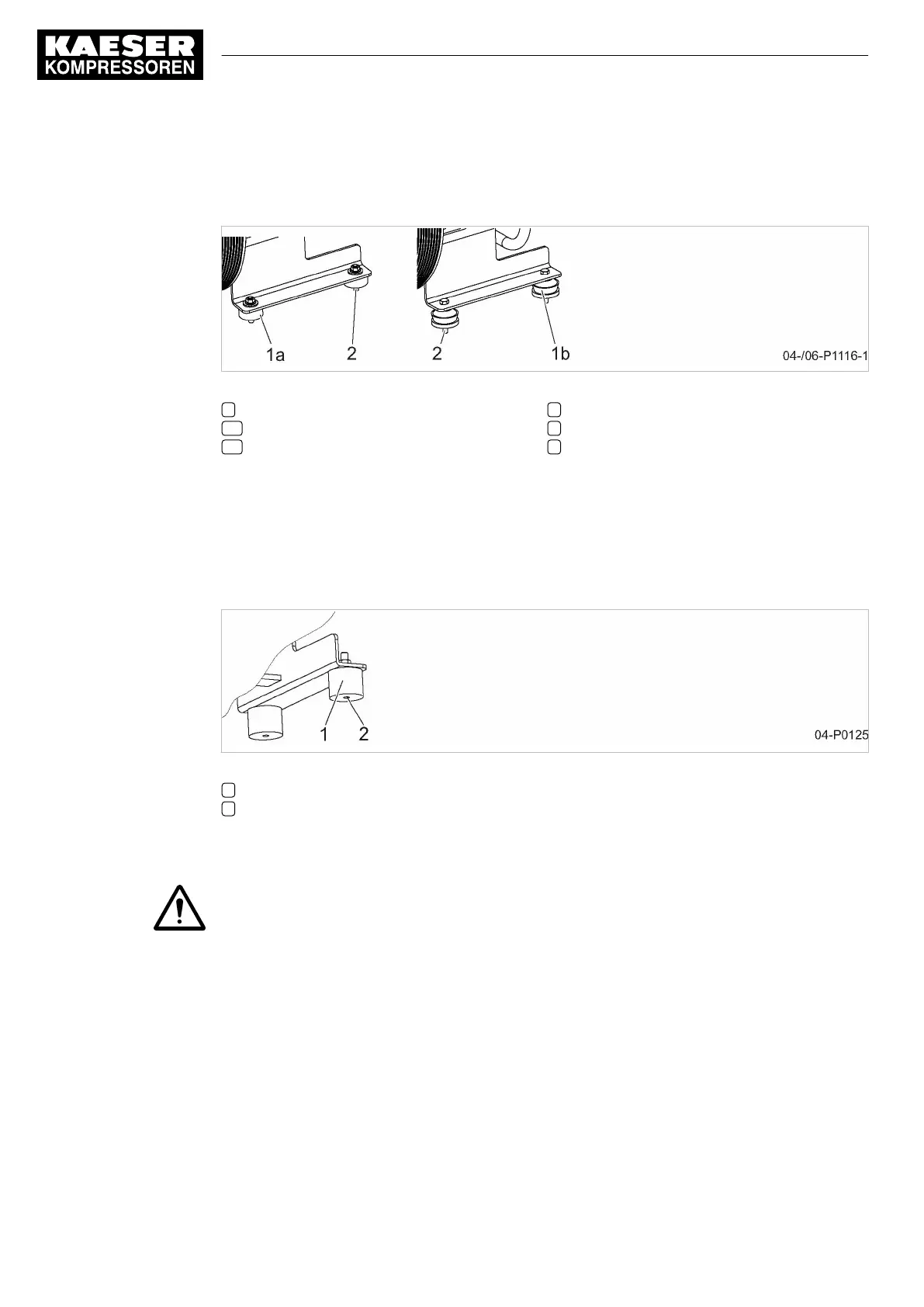

Fig. 18 Option H20: Screwable rubber pads
1 Screwable rubber pad
1a Model A
1b Model B
2 Threaded connection
3 Hexagon bolt
4 Hexagonal nut
➤ Use appropriate fixing elements to anchor the machine.
Further information Details of the anchoring threads are shown in the dimensional drawing in chapter 13.2.
6.9.3 Option H29
Anchoring the Machine
Fig. 19 Option H29: Securing the screwable rubber pads
1 Screwable rubber pad
2 Threaded connection
1. Remove the wooden frame from the base plate.
2. Use appropriate fixing elements to anchor the rubber pads.
3. CAUTION!
There is a danger of tilting because of the high centre of gravity and mass of the machine.
➤ Use transport slings to lift the machine.
4. Lift the machine and place it on the rubber pads.
5. Screw the rubber pads to the base plate with hexagon nuts.
6.10 Retrofitting the sound enclosure (accessory)
The sound enclosure is supplied ready assembled.
➤ It must be dismantled for fitting to the machine.
6 Installation
6.10 Retrofitting the sound enclosure (accessory)
44
Assembly and operating manual 1-stage piston compressor
EPC-G No.: 9_5752 24 E
