List of connectors:

J1 – connector for coin acceptor

J2 – connector for bill acceptor

J3 – connector for power supply to bill acceptor, ticket

dispenser, capsule dispenser, thermal printer

J4 - connector for ticket dispenser, capsule dispenser, thermal

printer

J5 & J7 – front panel backlight

J6 – connector for main board power supply (12V supplied by

AC power supply)

J8 – connector for power supply

J9 – sensor connector

J10 – connector for buttons GAME and START BOXER

J11 – connector for mechanical counter

J12 – connector for speaker

SW-ADD – connector for START KICKER

S1 – service setting switches

S2 – step potentiometer for setting sensor sensitivity (0 – min,

9 - max)

SW1 & SW2 – help buttons (up/down)

R362 – potentiometer for volume control

IC37 – speech synthesizer

IC34 – main processor socket

LED-A - connector for Kicker power supply

LED-B - connector for Boxer and Kicker sensors

LED-C - connector for siren (optional)

PRINTER - connector for thermal printer

BOXNET/ TOURNAMENT - connector for BoxNet or

BoxTournament for PC

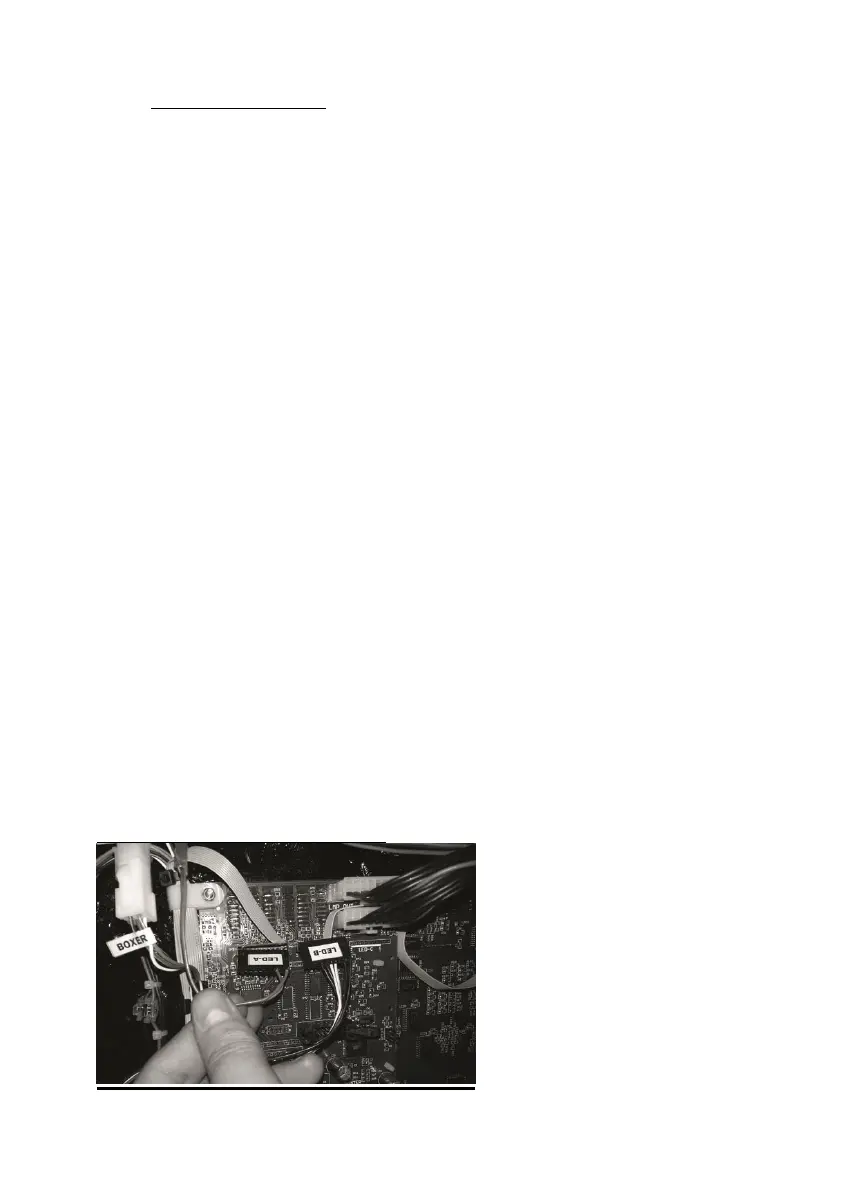

LED-A and LED-B connectors
