Service and Repair Manual
Model 900/950/990
ITEM NO. PART NO. Nm lb.ft
103 9170 0020 70 2 1.75
104 9170 0193 90 3.5 2.5
113 9170 0191 70 0.75 0.5
129 9170 0191 90 2 1.75
145 9170 0070 50 22 16
151 9170 0191 10 3.5 2.5
152 9170 0197 60 1 0.75
159 9170 2874 30 2.9 2.25
162 9170 6909 00 2 1.75
168 9170 0190 80 2 1.75
227/348 9170 0190 10 16 11
229 9170 0194 20 20 15
246/365 9170 0193 20 35 25
MODELS 900KV/900SV/900MV/950K/950B/990KV
ITEM NO. PART NO. Nm lb.ft
254/382 9170 0199 70 30 21
320 9170 0190 60 7 4
321 9170 0190 60 7 4
338 9170 0190 70 4.5 3.5
341 9170 0130 10 27 20
366 9170 0198 30 18 13
TORQUE SETTINGS
Liberally coat
Generously apply
Pack

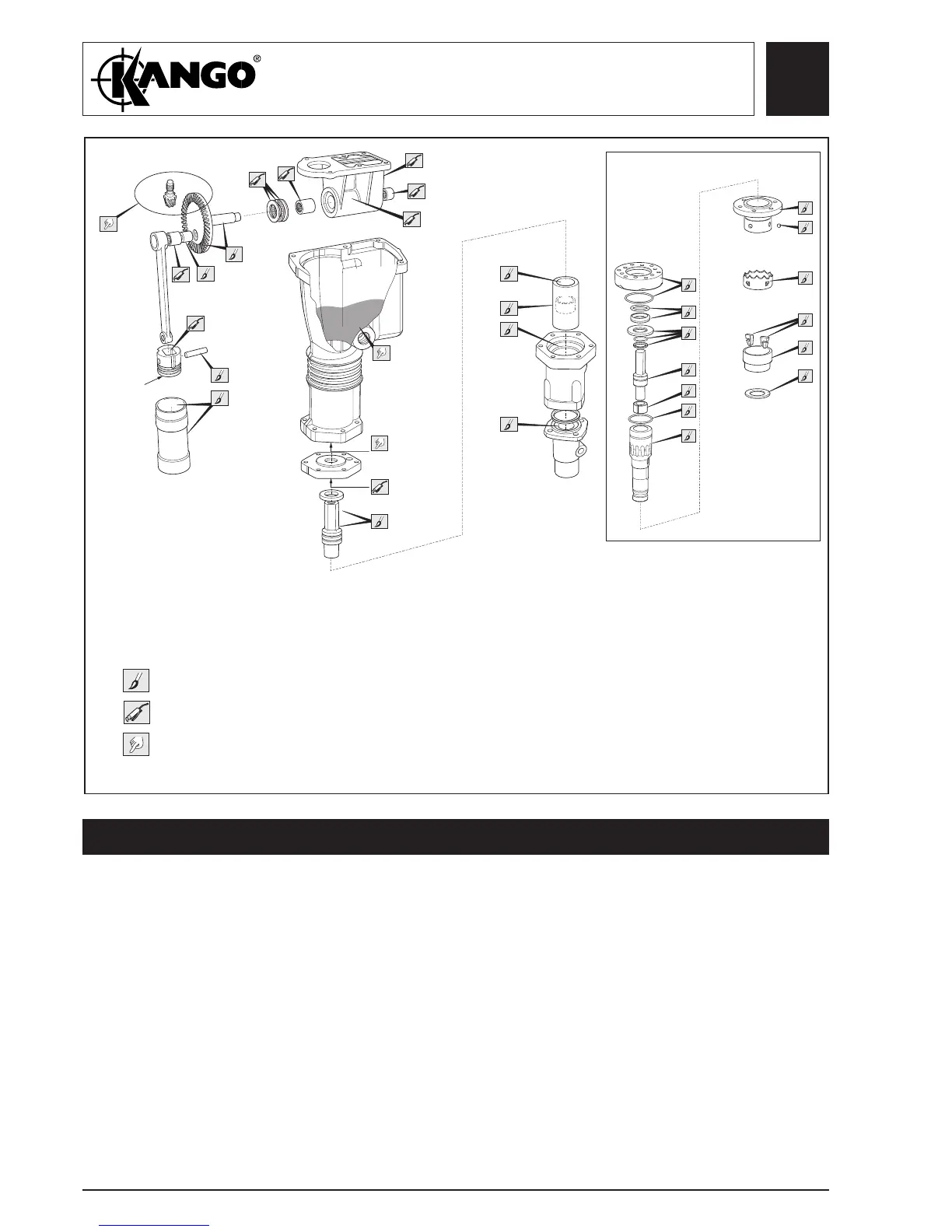

GREASE APPLICATION CODE
Use grease Part No. 9170 3108 00 (85gm sachet)
Total quantity 170gm (2 sachets)
(5gm)
(10gm)
Place 5gm of
grease on
piston crown
After
assembly
apply 35-
40gm
Fill flutes level
with grease
(5-10gm)
Remaining
grease after
lubrication of
all other parts
(approx.
60gm)
Fill using grease gun
after assembly (5-10gm)
(5gm)
SDS
